Front Blower Motor Inoperative

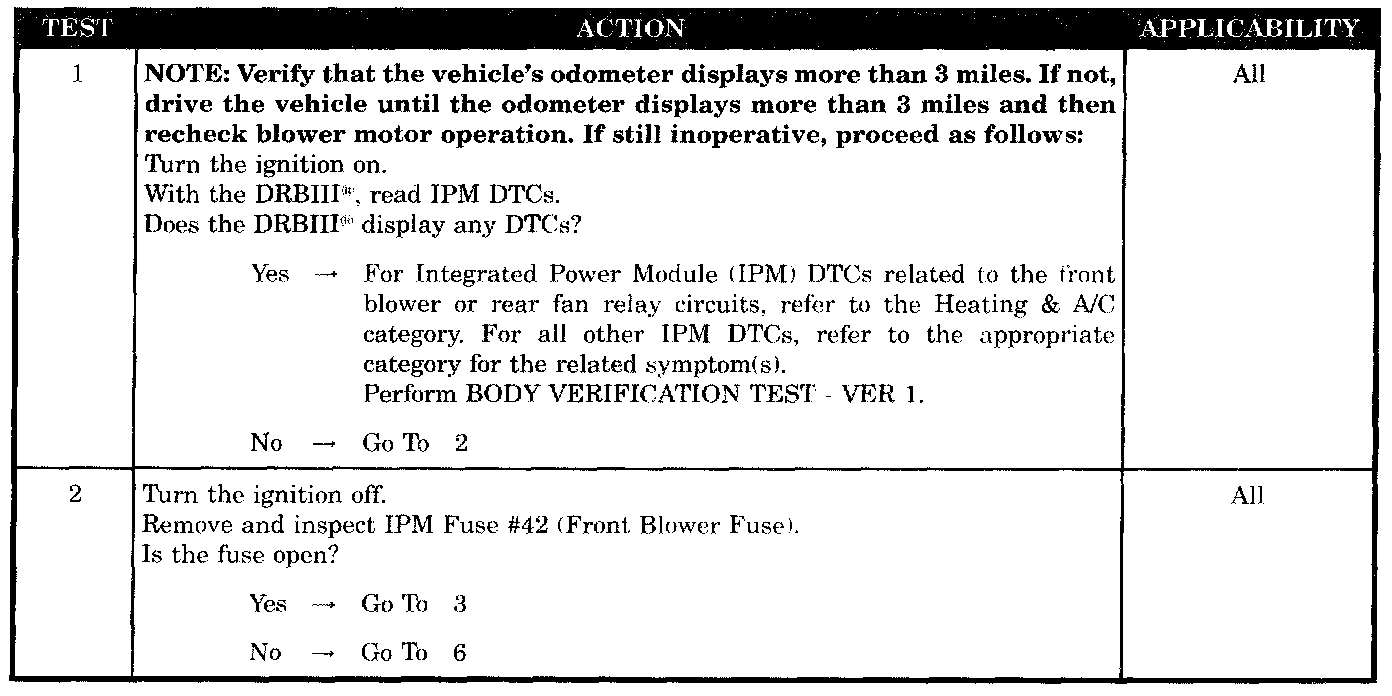

Test 1 - 2:

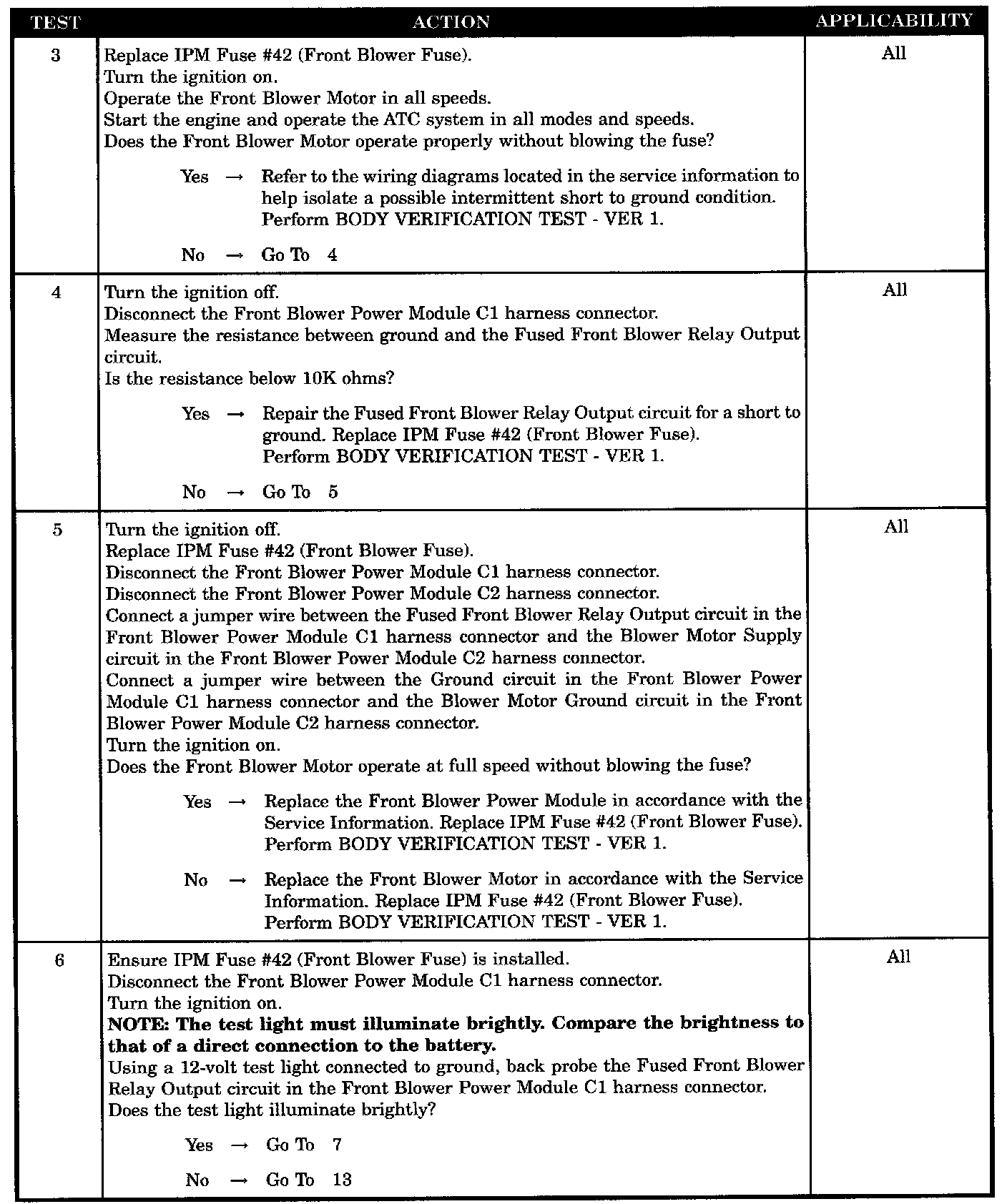

Test 3 - 6:

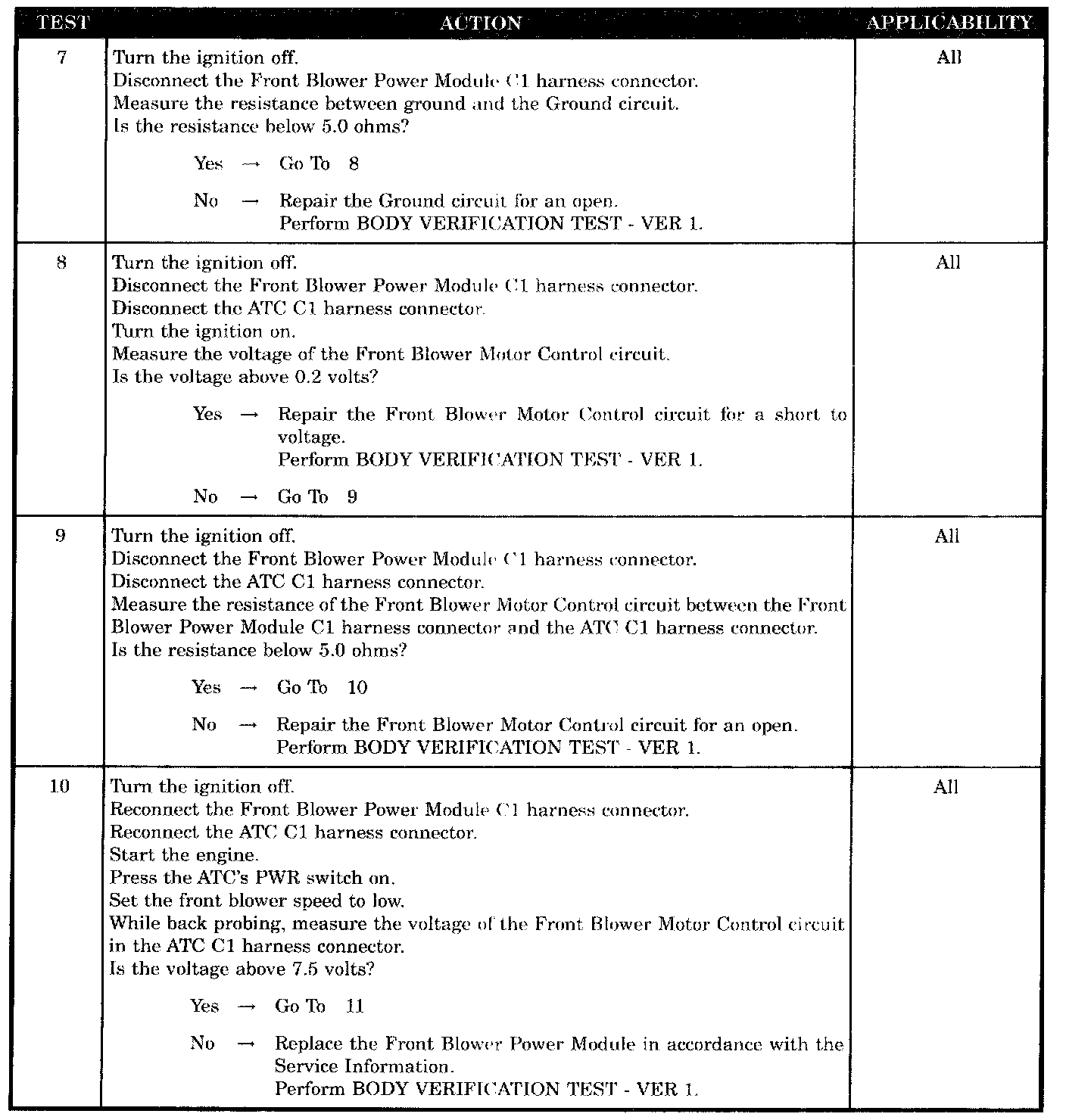

Test 7 - 10:

Test 11 - 12:

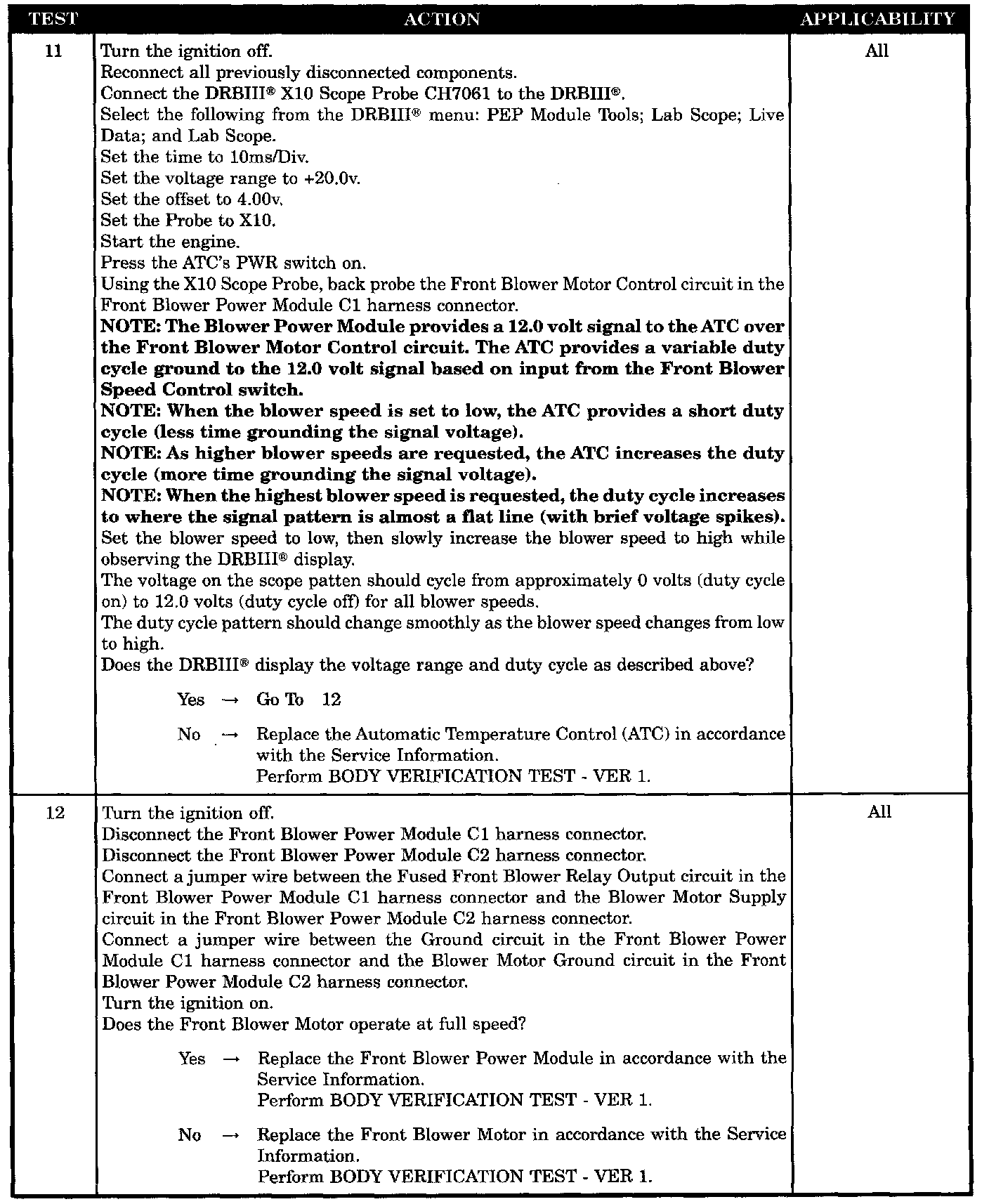

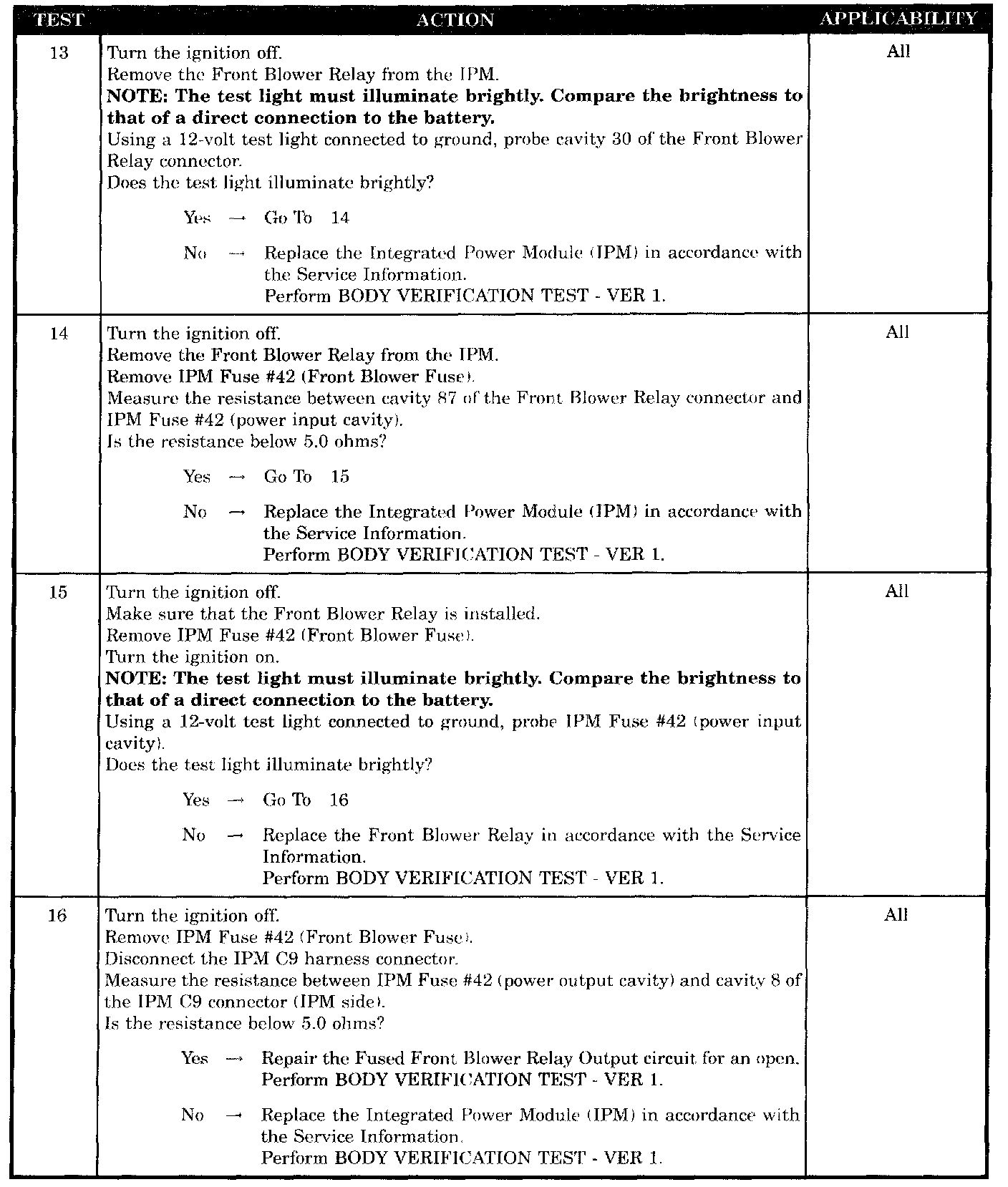

Test 13 - 16:

SYMPTOM
FRONT BLOWER MOTOR INOPERATIVE

POSSIBLE CAUSES
- Integrated power module (IPM) DTC(s) present
- Intermittent condition
- Fused front blower relay output circuit shorted to ground
- Front blower motor
- Front blower power module
- Ground circuit open
- Front blower motor control circuit shorted to voltage
- Front blower motor control circuit open
- Front blower power module
- Automatic temperature control (ATC)
- Front blower motor
- Front blower power module
- Integrated power module (IPM) - open circuit
- Integrated power module (IPM) - open circuit
- Front blower relay
- Integrated power module (IPM) - open circuit
- Fused front blower relay output circuit open
