Remote Keyless Entry Inoperative

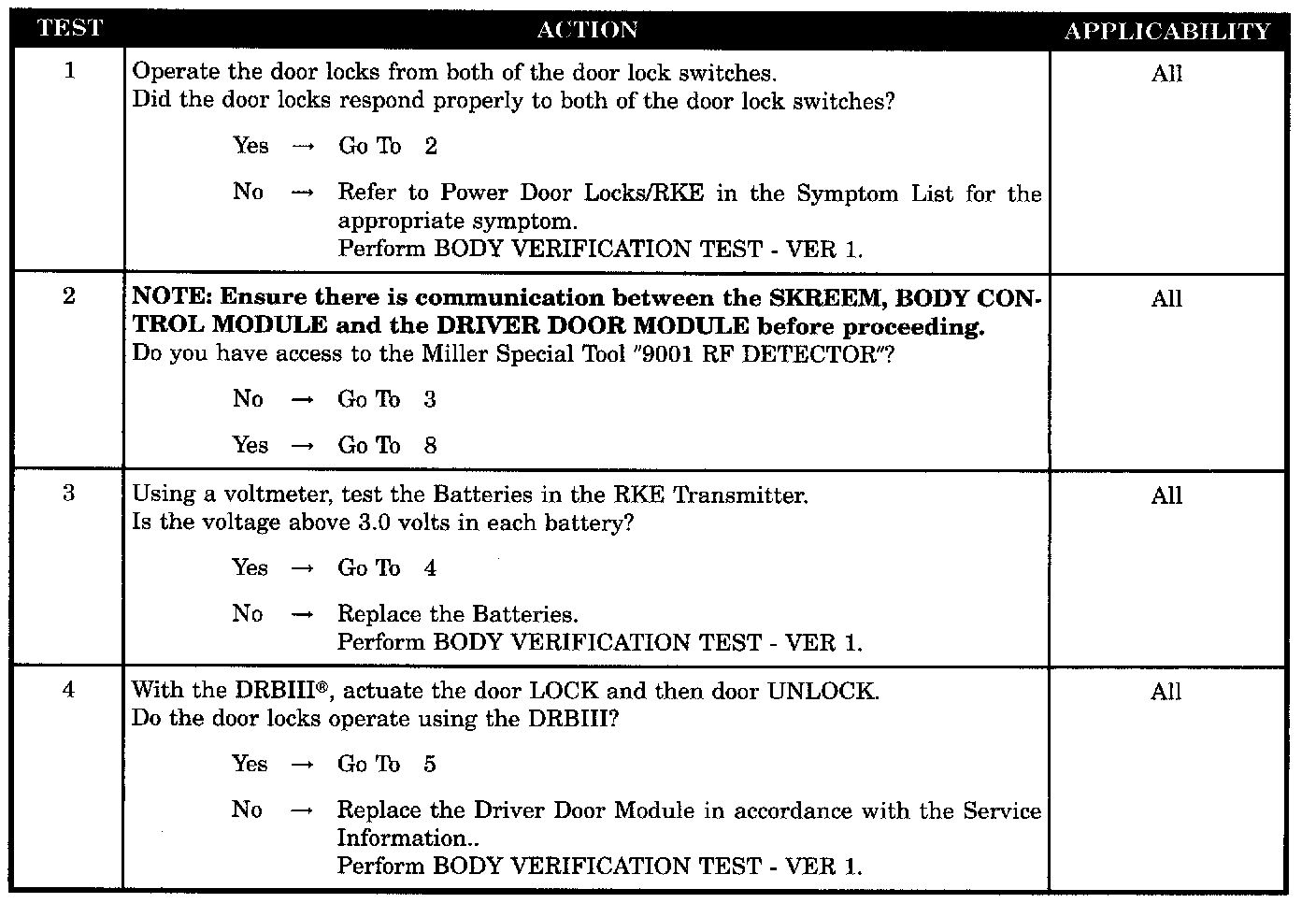

Test 1 - 4:

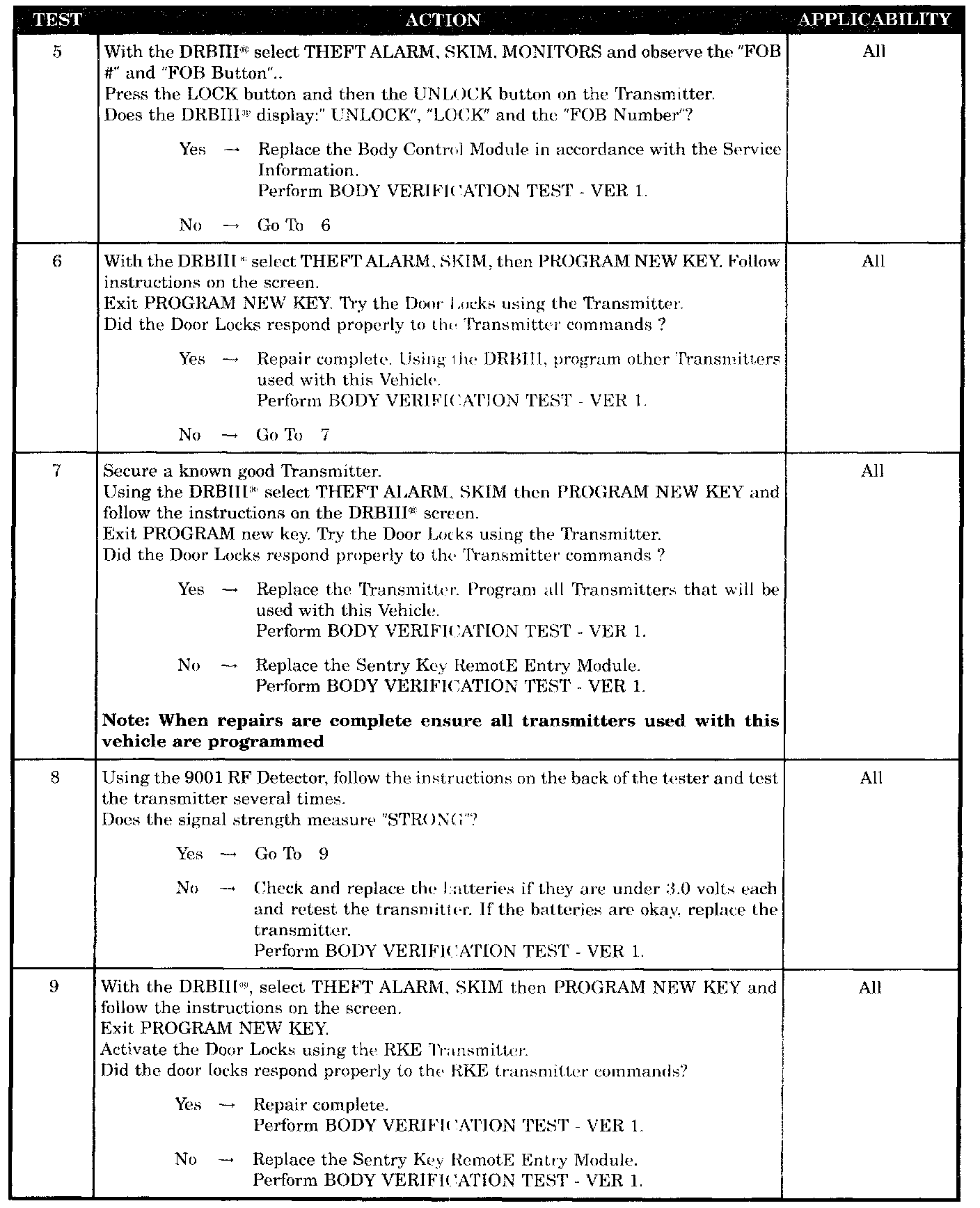

Test 5 - 9:

SYMPTOM
REMOTE KEYLESS ENTRY INOPERATIVE

POSSIBLE CAUSES
- Door locks system check
- Test transmitter with tester
- RKE transmitter not programmed
- RKE transmitter battery voltage low
- RKE transmitter not programmed
- RKE transmitter defective
- Body control module
- Driver door module
- SKREEM module - RKE inoperative
- SKREEM module - RKE inoperative
