Heated Seat Module: Removal
WARNING: This page is about a different variant/trim than selected.
- Move the appropriate power seat track to its uppermost and rearward-most stop position.
- Disconnect and isolate the negative battery cable.

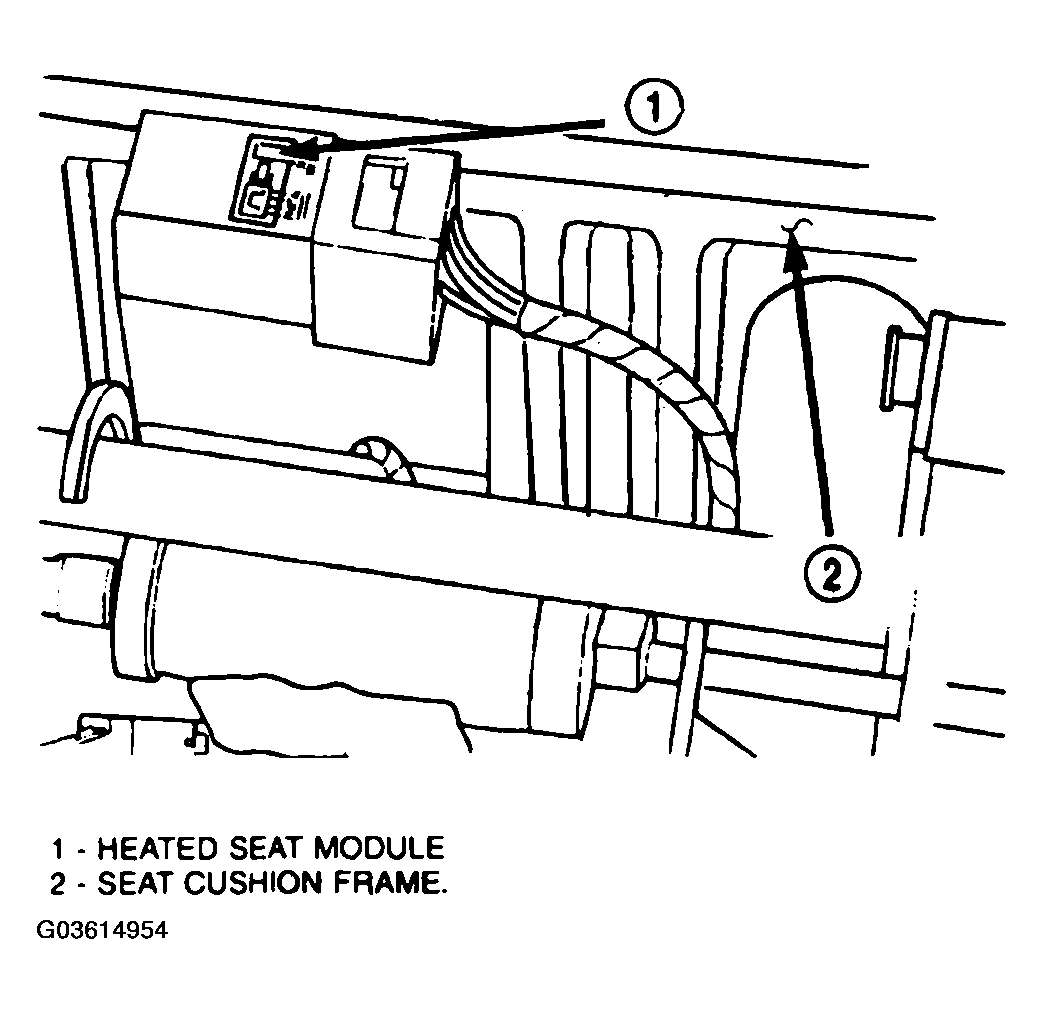

- Reach under the front of the seat cushion and separate the heated seat module from the seat cushion frame (Figure).
- Disconnect the wire harness connector from the connector receptacle on the back of the heated seat module.
- Remove the heated seat module from the vehicle.
