ATC Temperature Control Incorrect In Sun/Shade

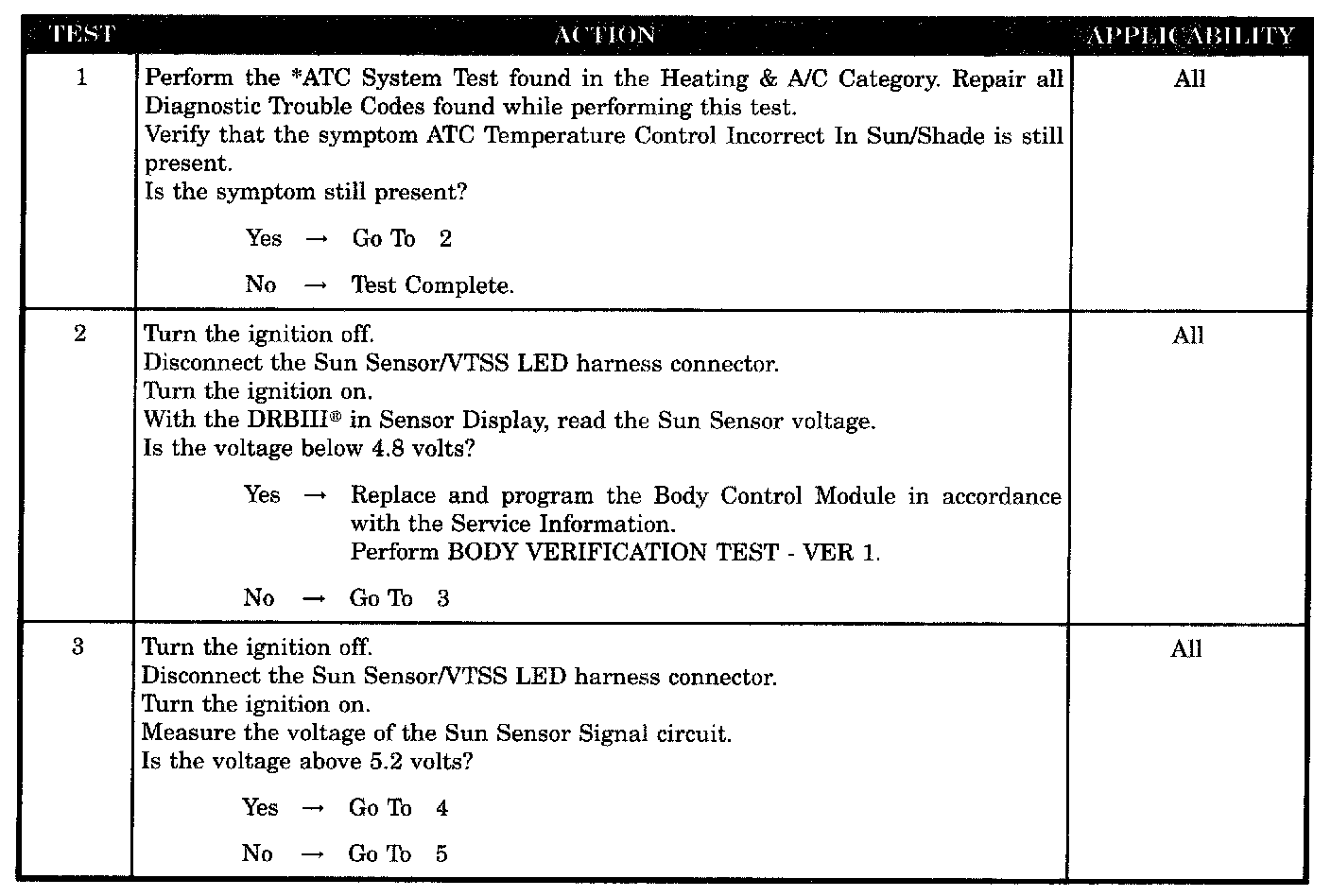

Test 1 - 3:

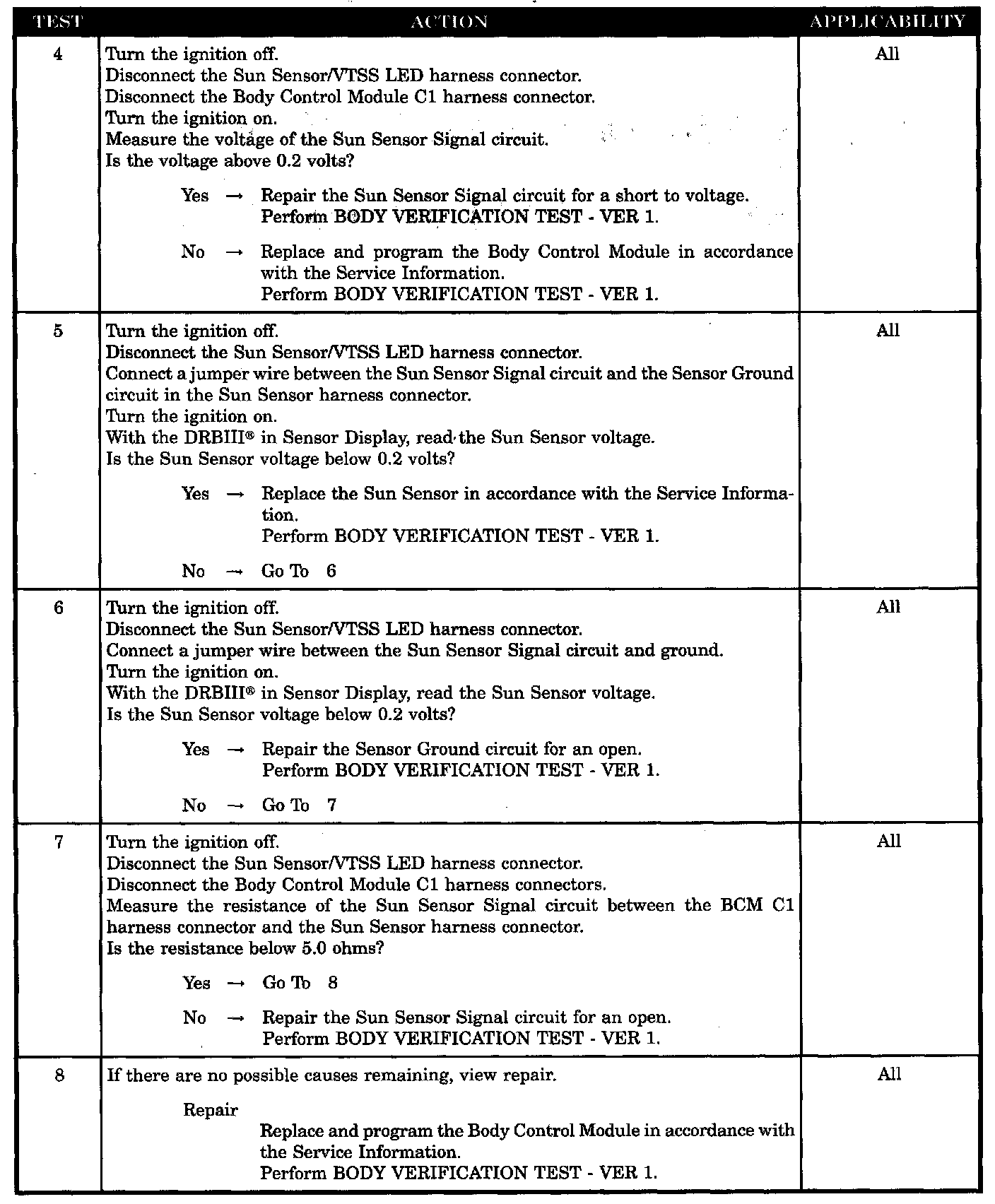

Test 4 - 8:






SYMPTOM
ATC TEMPERATURE CONTROL INCORRECT IN SUN/SHADE

POSSIBLE CAUSES
- Body control module
- Sun sensor signal circuit shorted to voltage
- Body control module
- Sun sensor open or high
- Sensor ground circuit open
- Sun sensor signal circuit open
- Body control module - sun sensor open or high
