Chime Inoperative With Drivers Seat Belt Unfastened

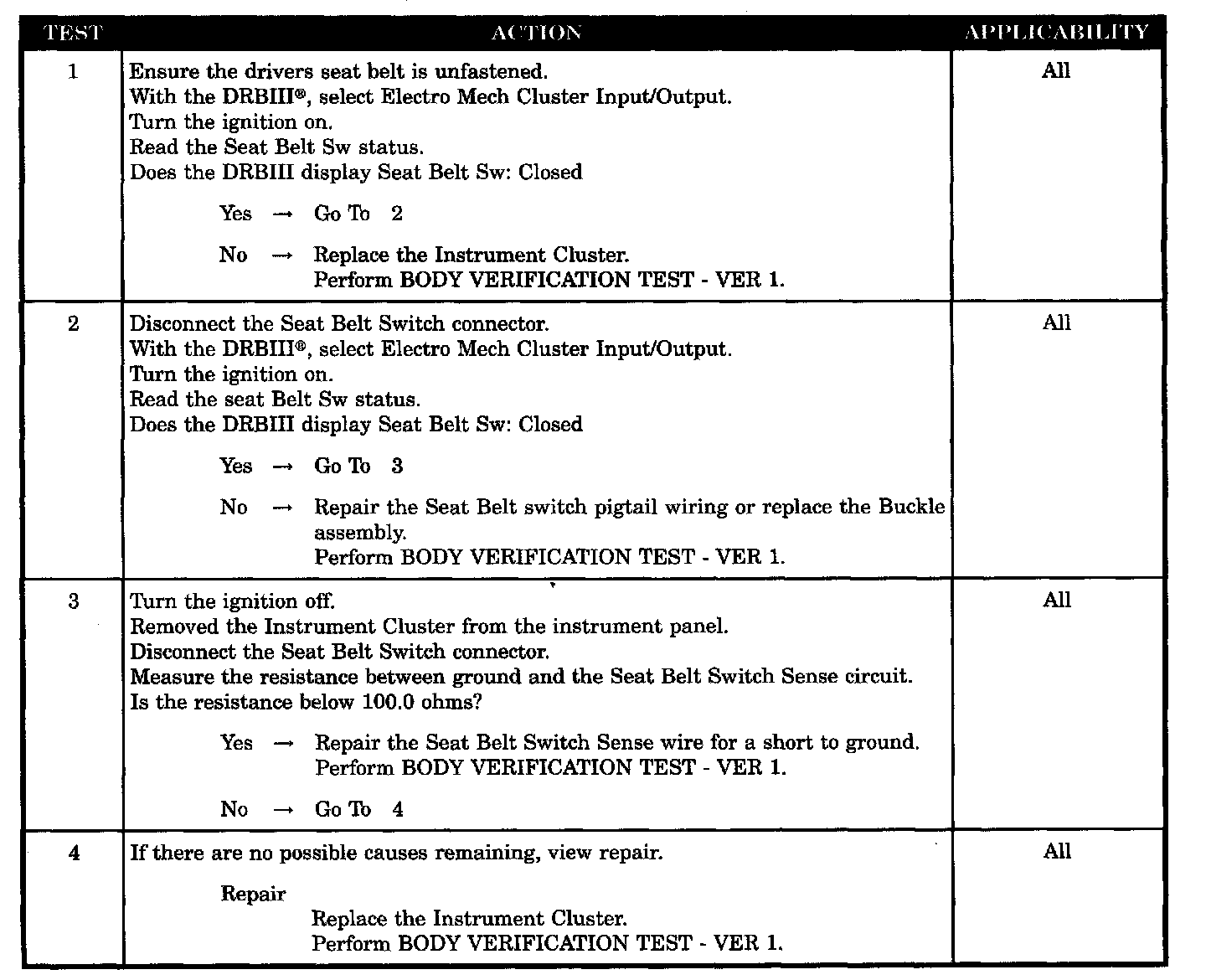

Test 1 - 4:






SYMPTOM
CHIME INOPERATIVE WITH DRIVERS SEAT BELT UNFASTENED

POSSIBLE CAUSES
- Seat belt switch status on DRBIII(R)
- Seat belt switch shorted
- Seat belt switch sense short to ground
- Instrument cluster - seat belt switch shorted
