Chime Sounds With Driver Seat Belt Fastened

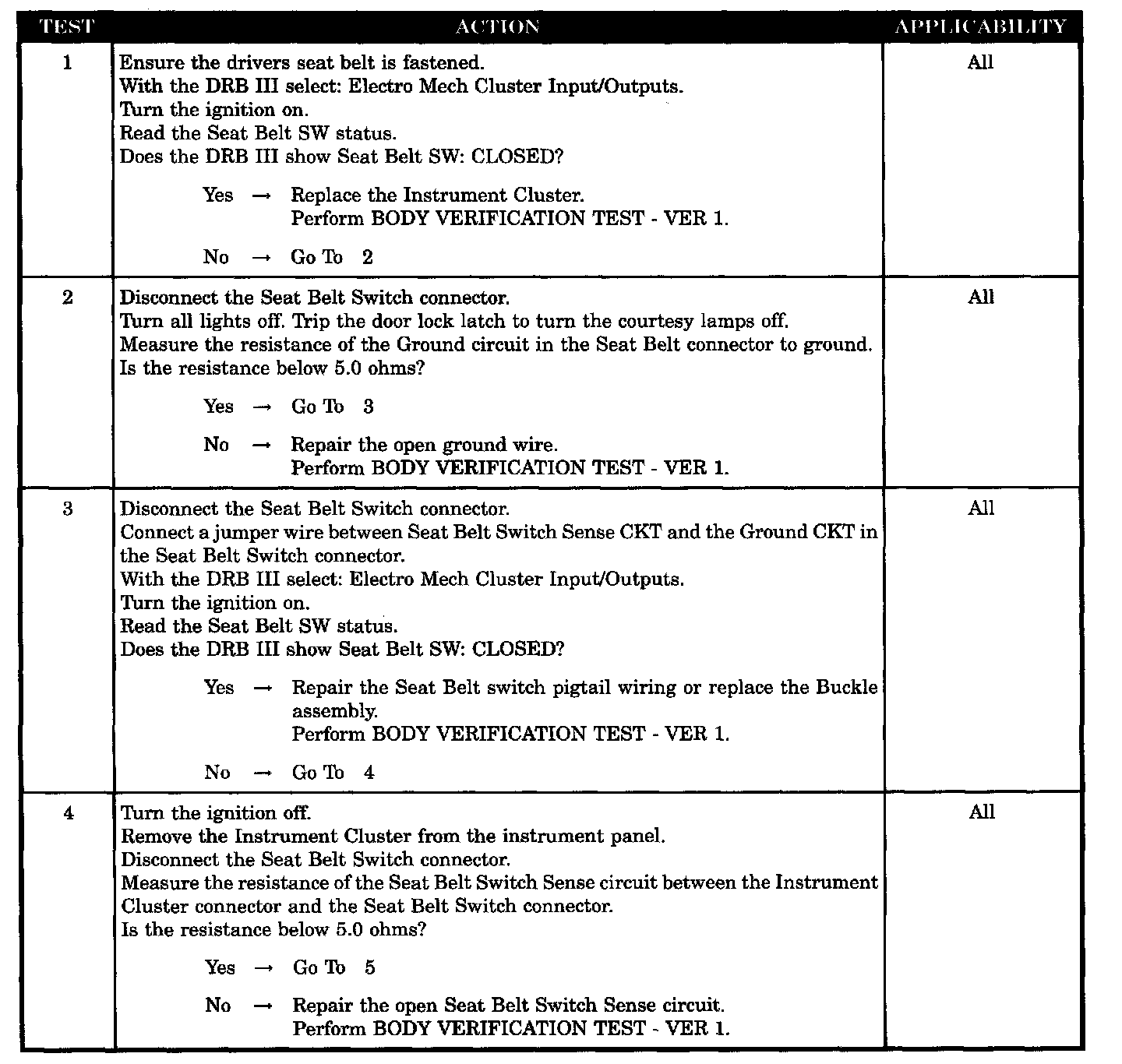

Test 1 - 4:

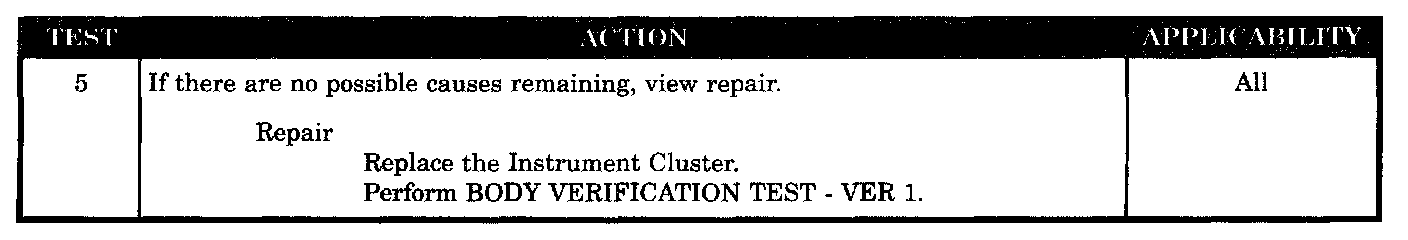

Test 5:






SYMPTOM
CHIME SOUNDS WITH DRIVER SEAT BELT FASTENED

POSSIBLE CAUSES
- Seat belt sw status wrong-open
- Seat belt switch open
- Ground wire open
- Seat belt sw sen open
- Instrument cluster - seat belt sense open
