Chime Sounds With Drivers Door Open and Key Removed From Ignition

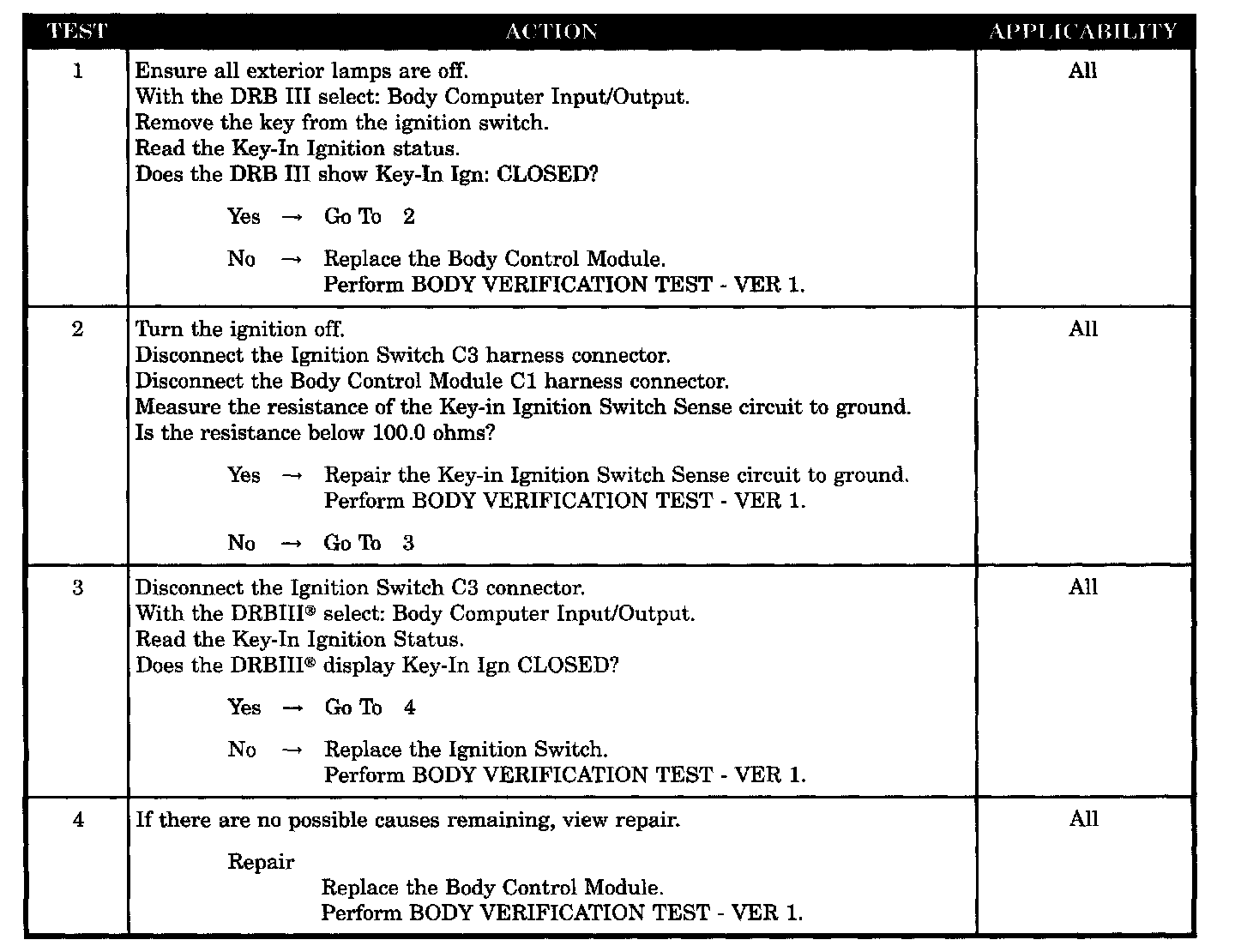

Test 1 - 4:






SYMPTOM
CHIME SOUNDS WITH DRIVERS DOOR OPEN AND KEY REMOVED FROM IGNITION

POSSIBLE CAUSES
- Key-in ignition switch status wrong
- Key-in ignition switch status wrong
- Key-in ignition sw sense short to ground
- Body control module - key-in ignition shorted
