Heated Seat Relay Not Energized With Ignition On

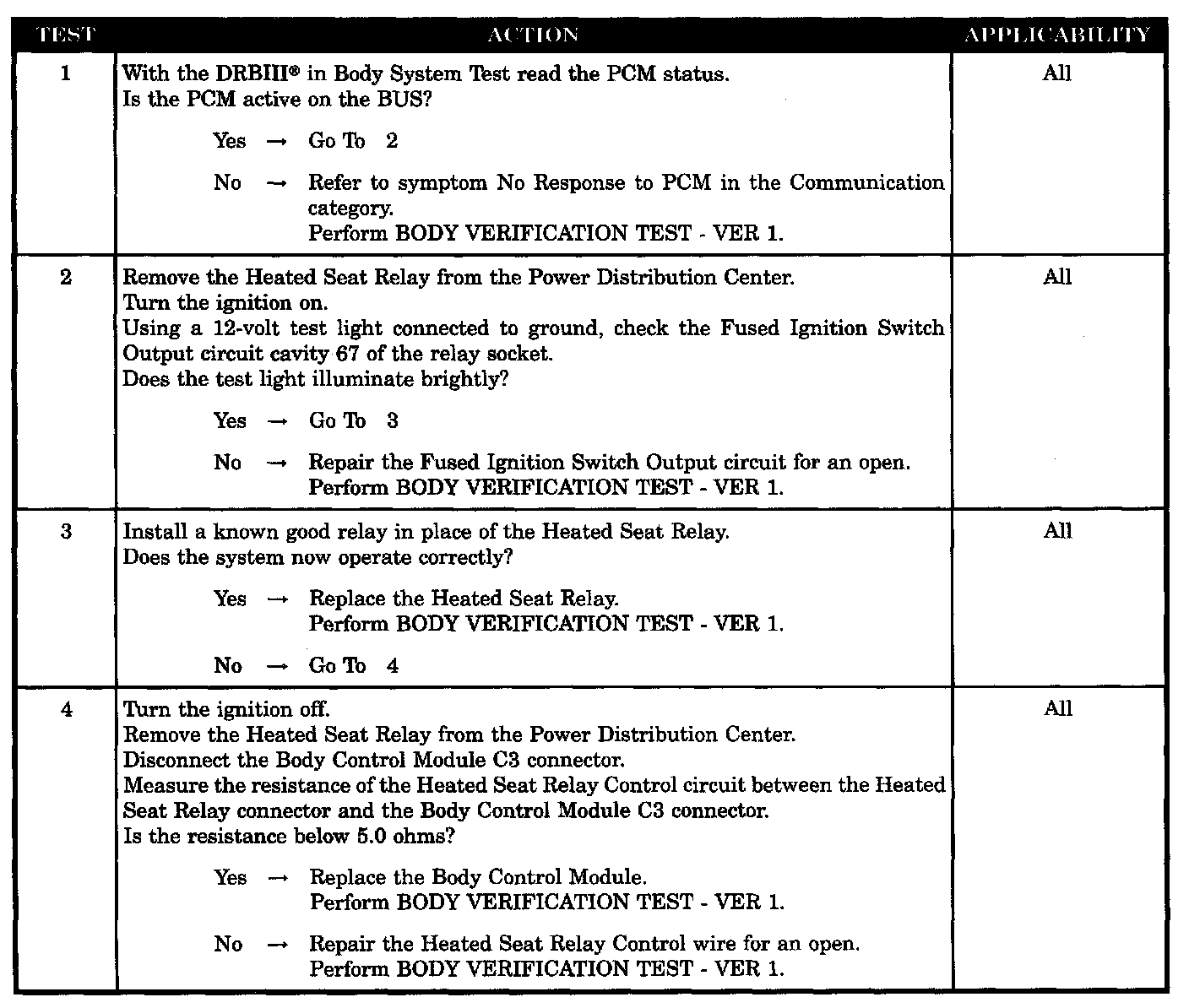

Test 1 - 4:






SYMPTOM
HEATED SEAT RELAY NOT ENERGIZED WITH IGNITION ON

POSSIBLE CAUSES
- Heated seat relay
- Fused ignition switch output circuit open
- Heated seat relay control wire
- Body control module
- PCM not active on the bus
