Headlamp Delay Relay Inoperative

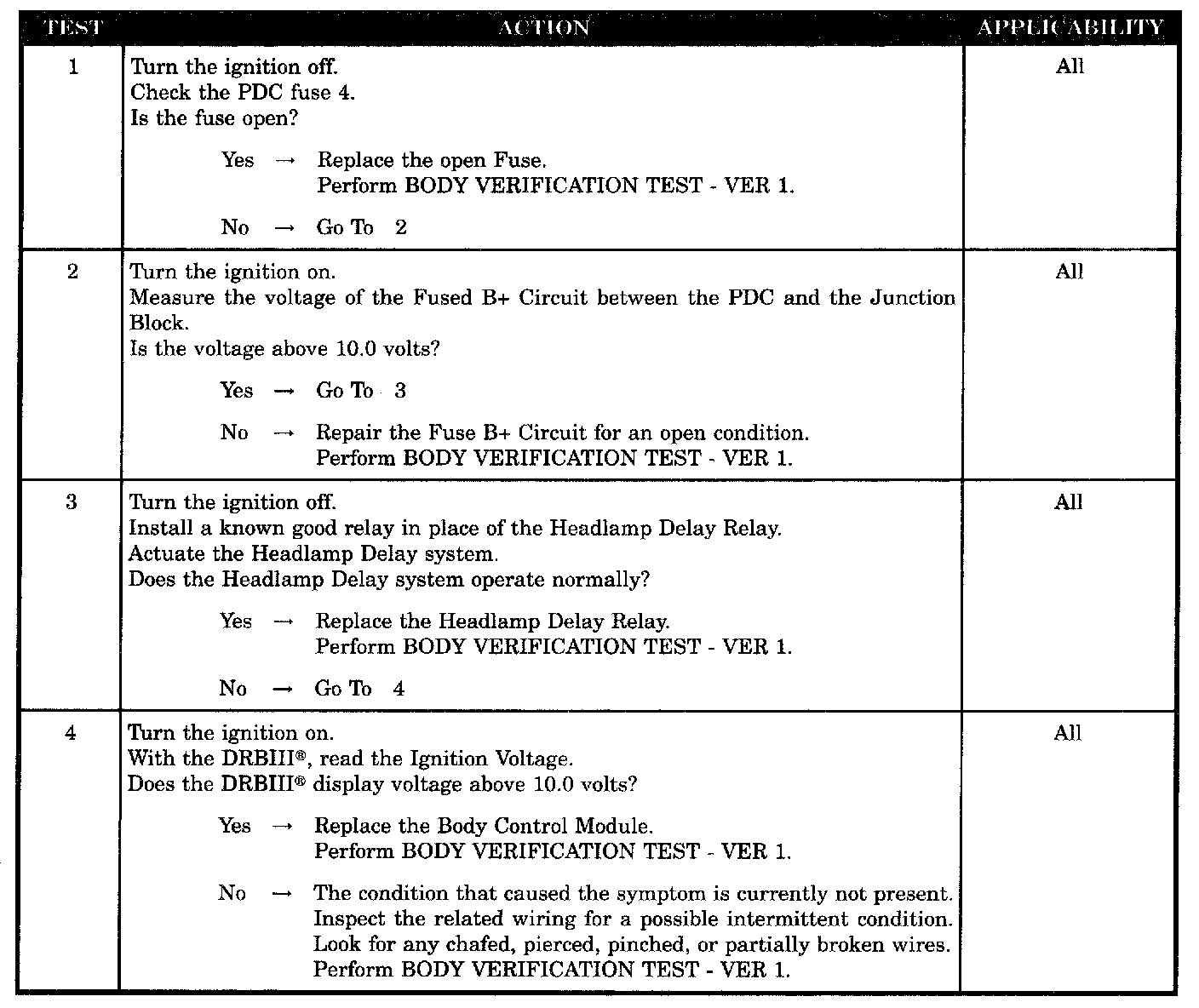

Test 1 - 4:






SYMPTOM
HEADLAMP DELAY RELAY INOPERATIVE

POSSIBLE CAUSES
- Fused B+ circuit open
- Headlamp delay relay
- Open fuse
- Intermittent condition
- Body control module
