Blower Runs At Only One Speed - ATC

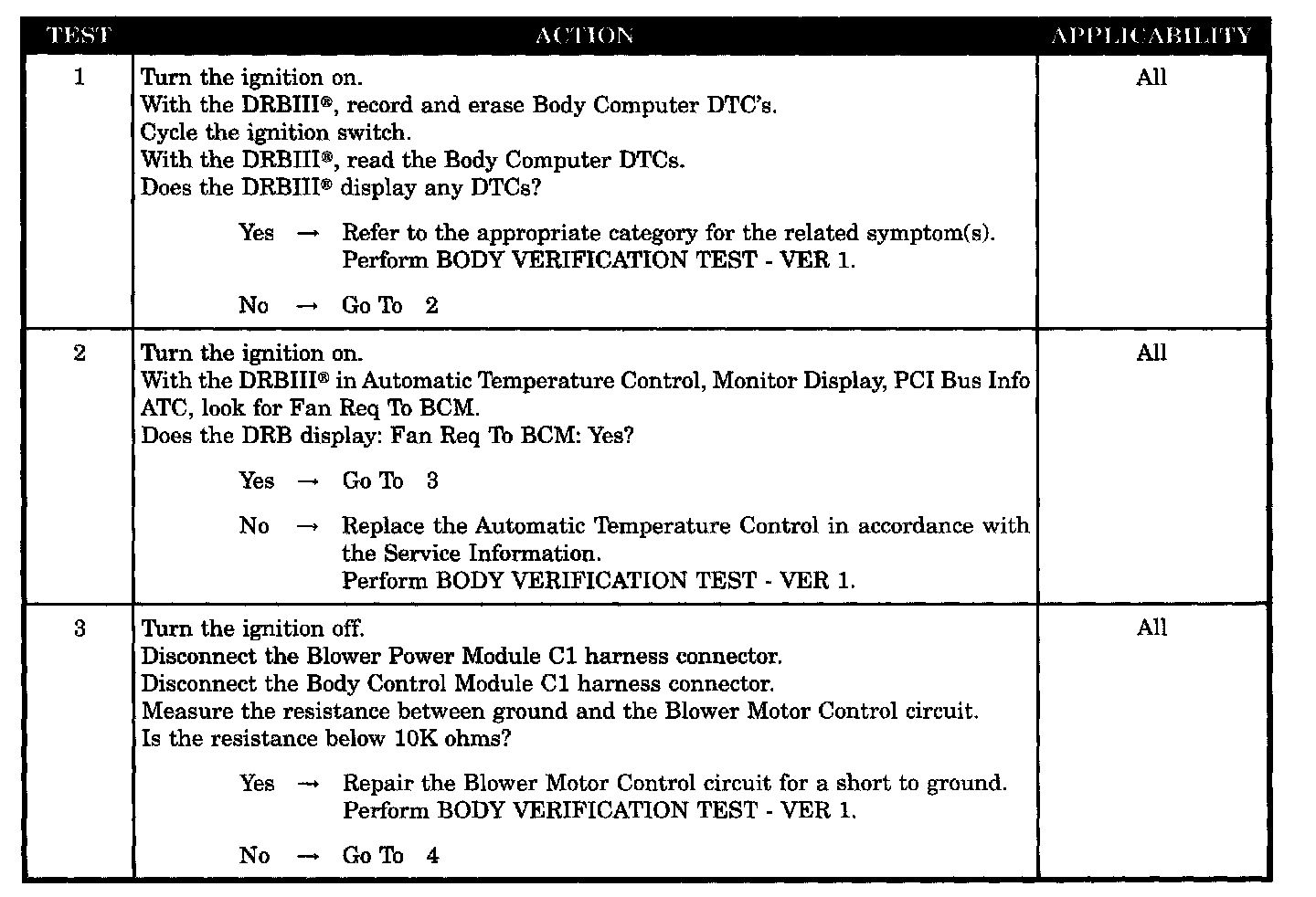

Test 1 - 3:

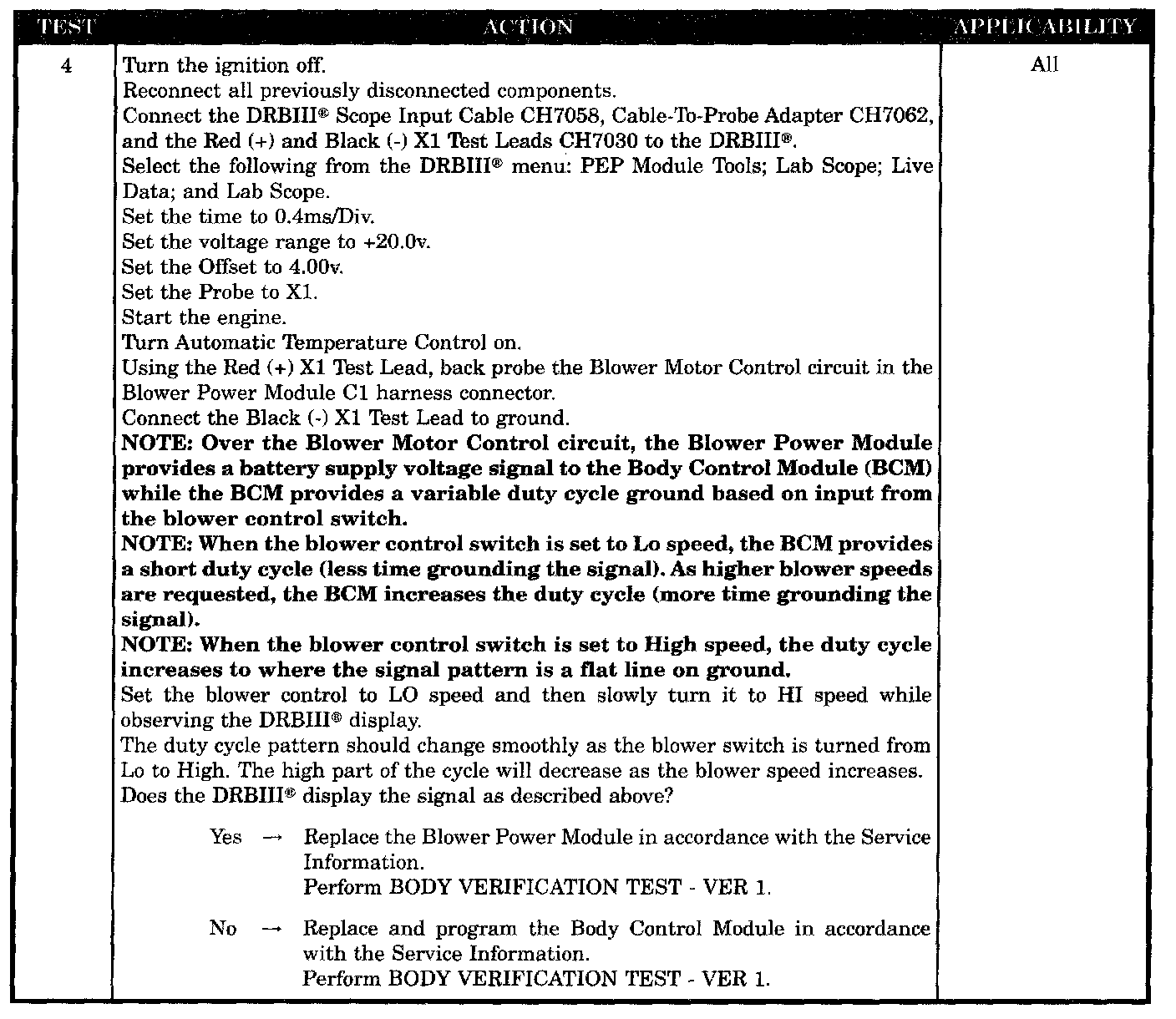

Test 4:






SYMPTOM
BLOWER RUNS AT ONLY ONE SPEED - ATC

POSSIBLE CAUSES
- Check code(s) present
- Automatic temperature control
- Blower motor control circuit shorted to ground
- Body control module
- Blower power module
