Brake Warning Indicator Always On

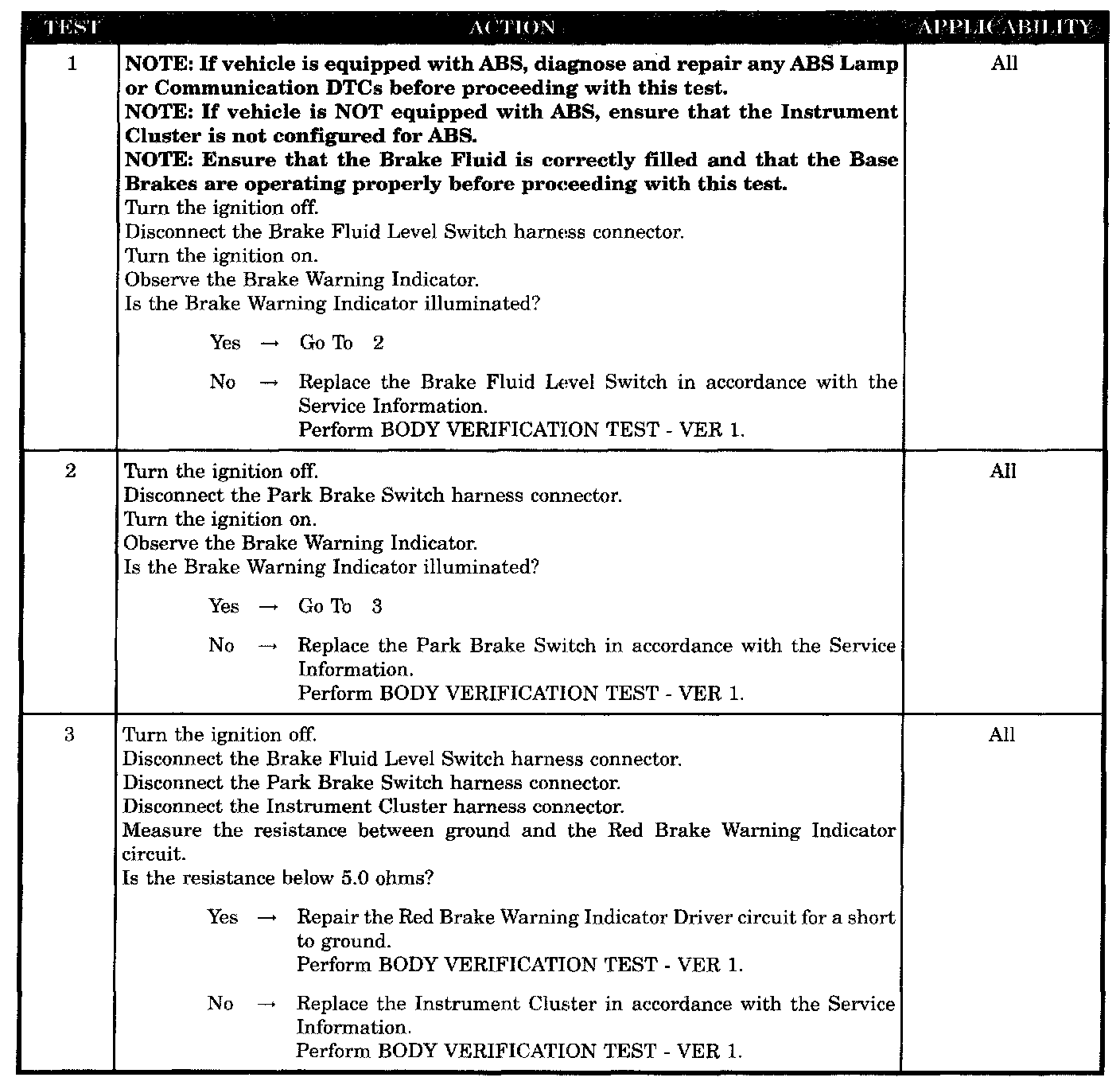

Test 1 - 3:






SYMPTOM
BRAKE WARNING INDICATOR ALWAYS ON

POSSIBLE CAUSES
- Brake fluid level switch
- Park brake switch
- Red brake warning indicator driver circuit short to ground
- Instrument cluster
