Brake Warning Indicator Inoperative

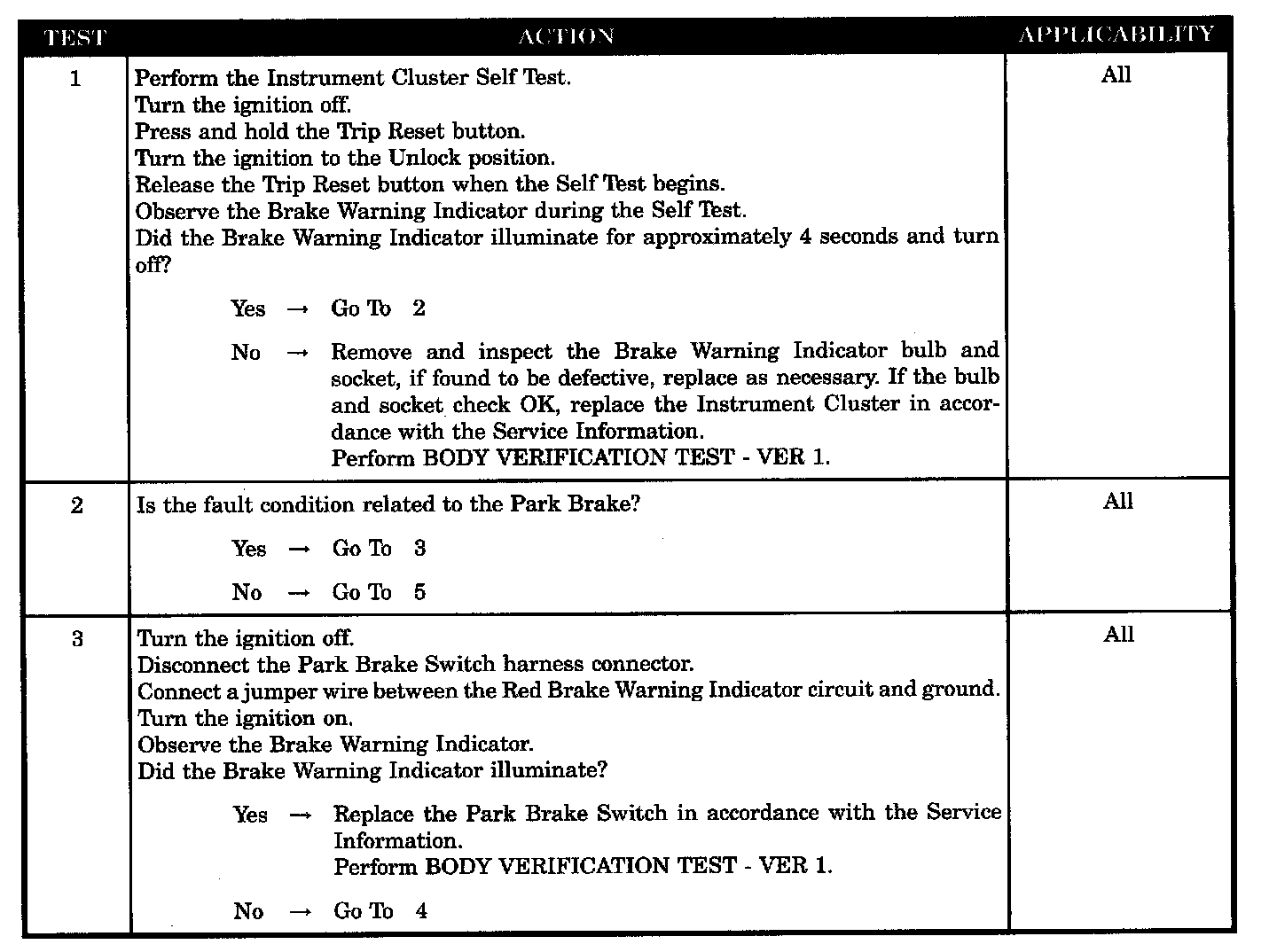

Test 1 - 3:

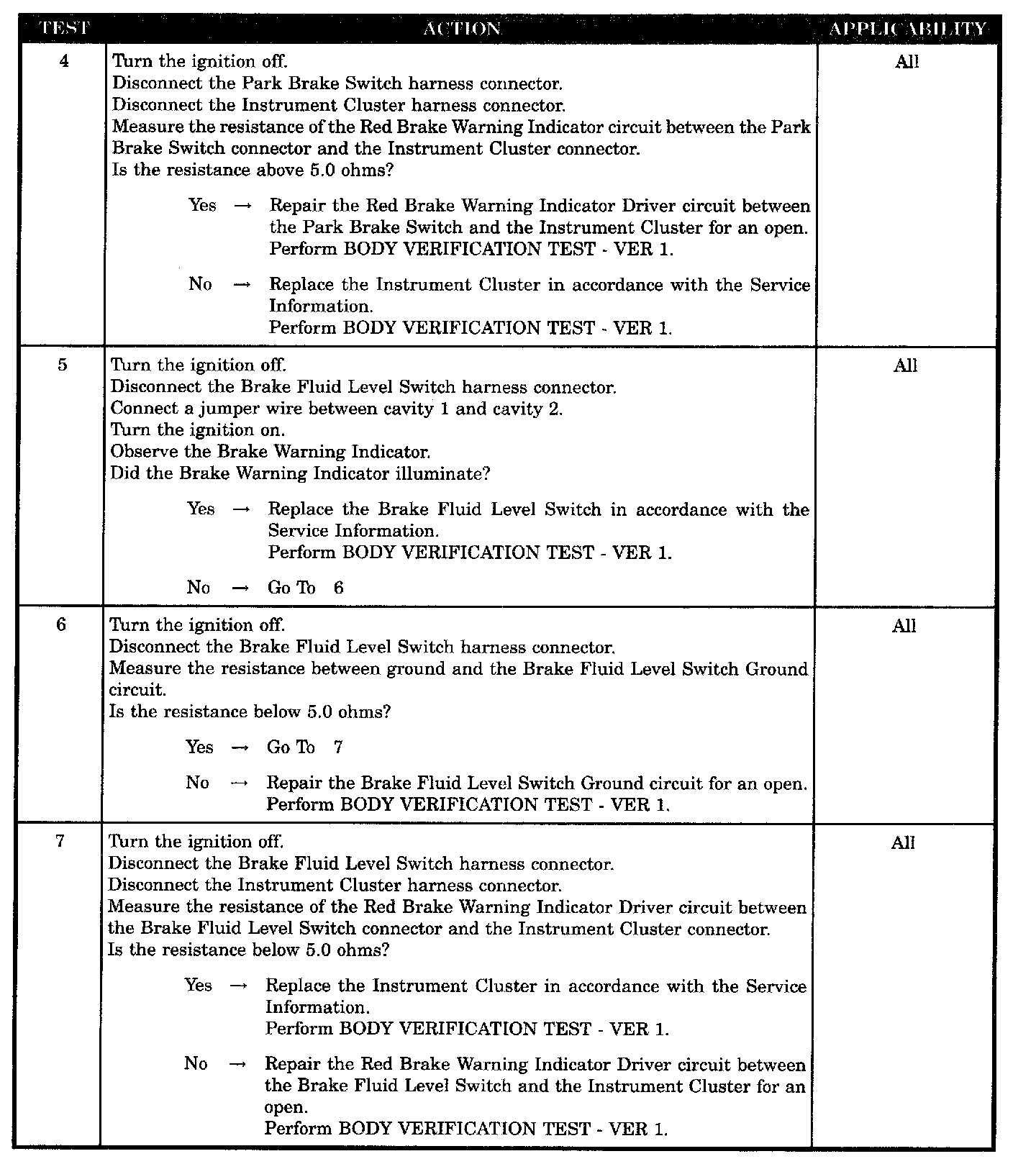

Test 4 - 7:






SYMPTOM
BRAKE WARNING INDICATOR INOPERATIVE

POSSIBLE CAUSES
- Indicator bulb
- Park brake switch
- Park brake switch red brake warning indicator driver circuit open
- Brake fluid level switch
- Brake fluid level switch ground circuit open
- Brake fluid level switch red brake warning indicator driver circuit open
- Instrument cluster
