Fuel Gauge Not Operating Properly

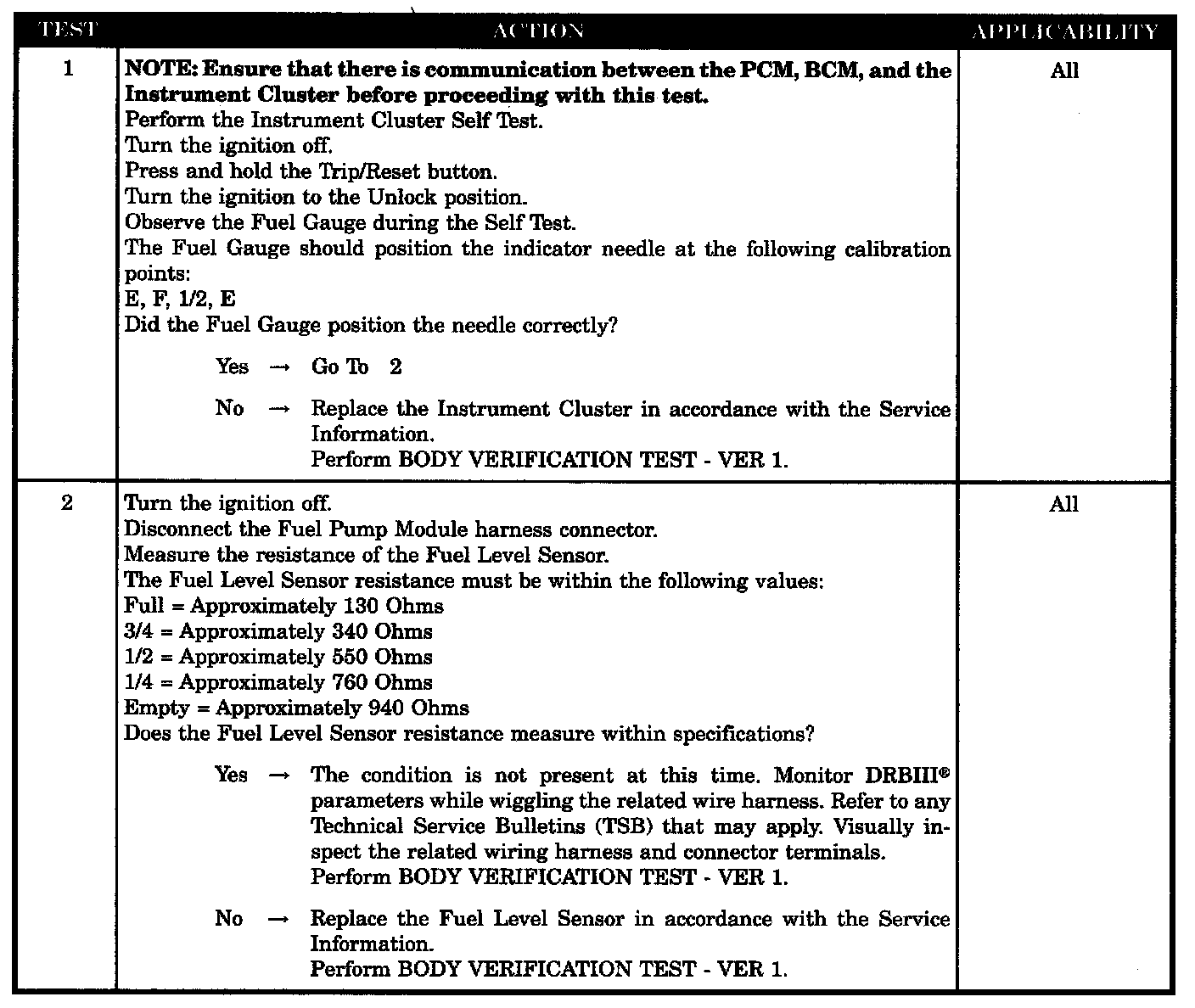

Test 1 - 2:






SYMPTOM
FUEL GAUGE NOT OPERATING PROPERLY

POSSIBLE CAUSES
- Intermittent condition
- Fuel level sensor
- Instrument cluster
