Speedometer Not Operating Properly

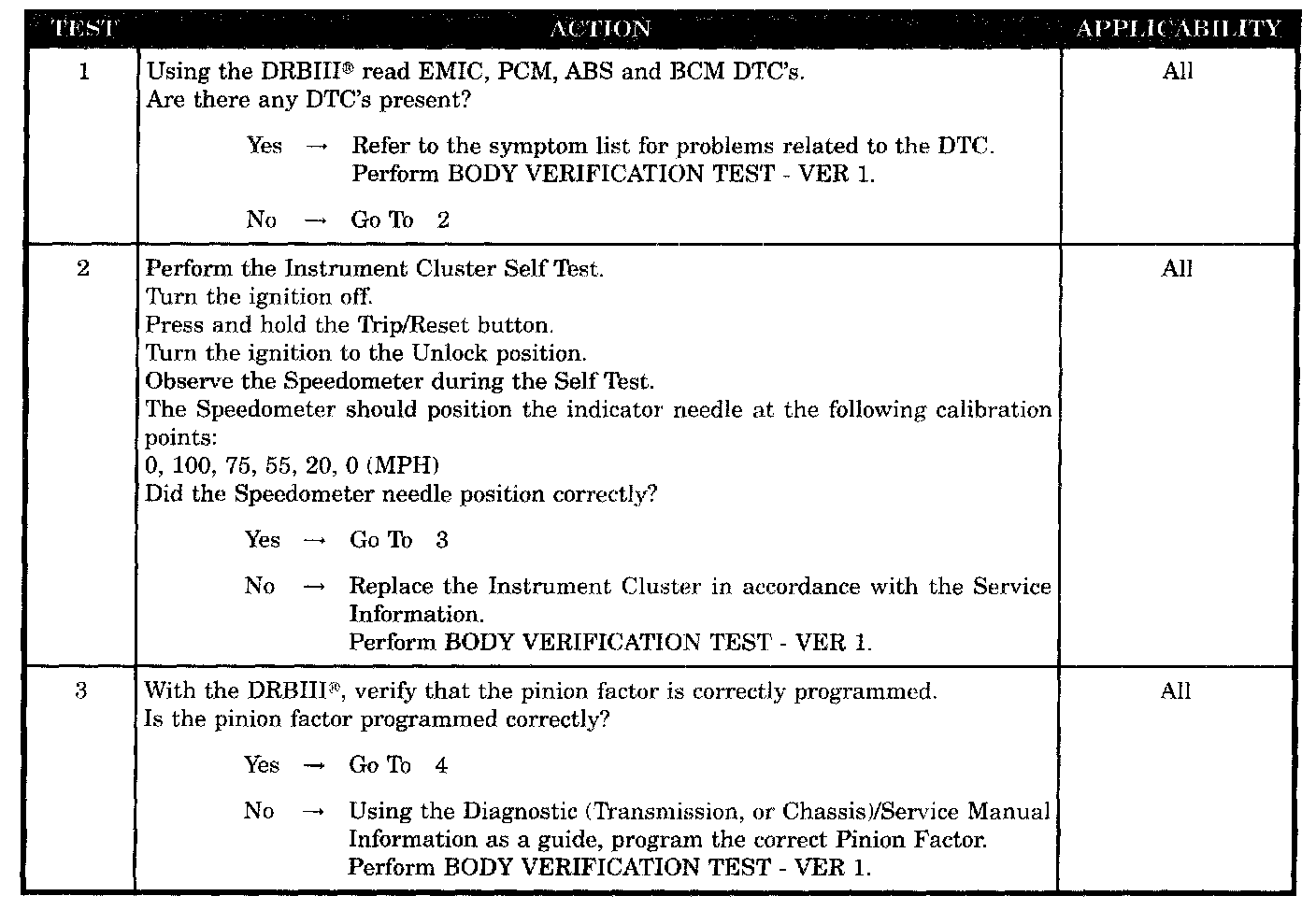

Test 1 - 3:

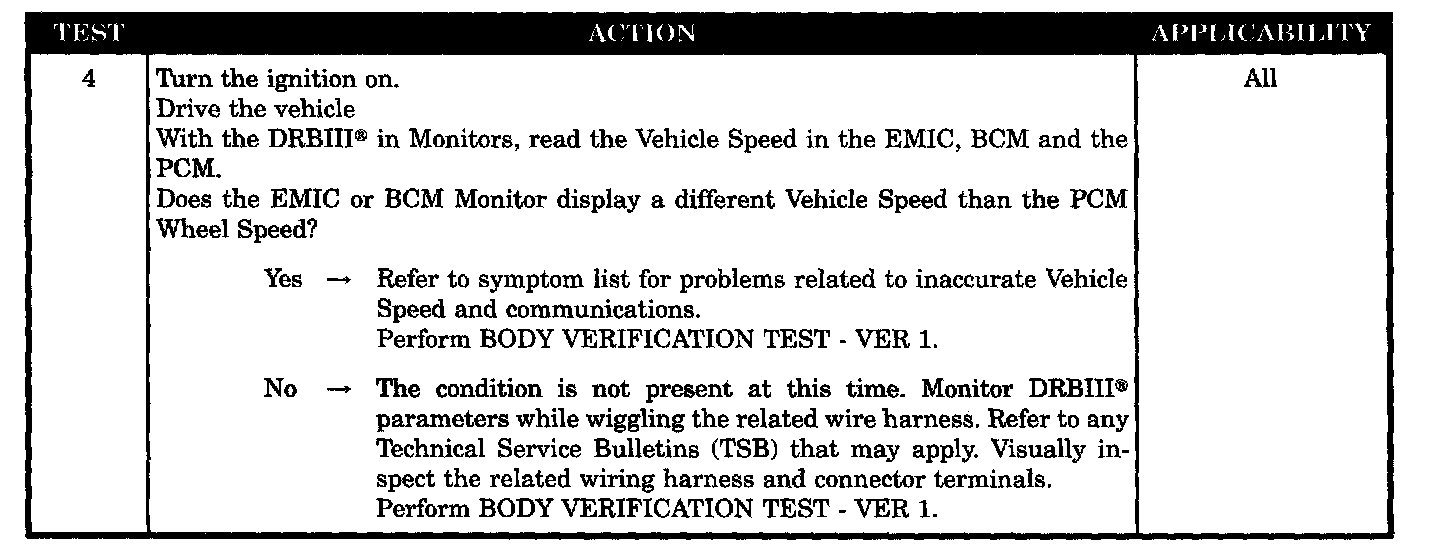

Test 4:






SYMPTOM
SPEEDOMETER NOT OPERATING PROPERLY

POSSIBLE CAUSES
- DTC present
- Intermittent condition
- Missing or incorrect pinion factor
- Vehicle speed message
- Instrument cluster
