Courtesy Lamps Inoperative - All Lamps

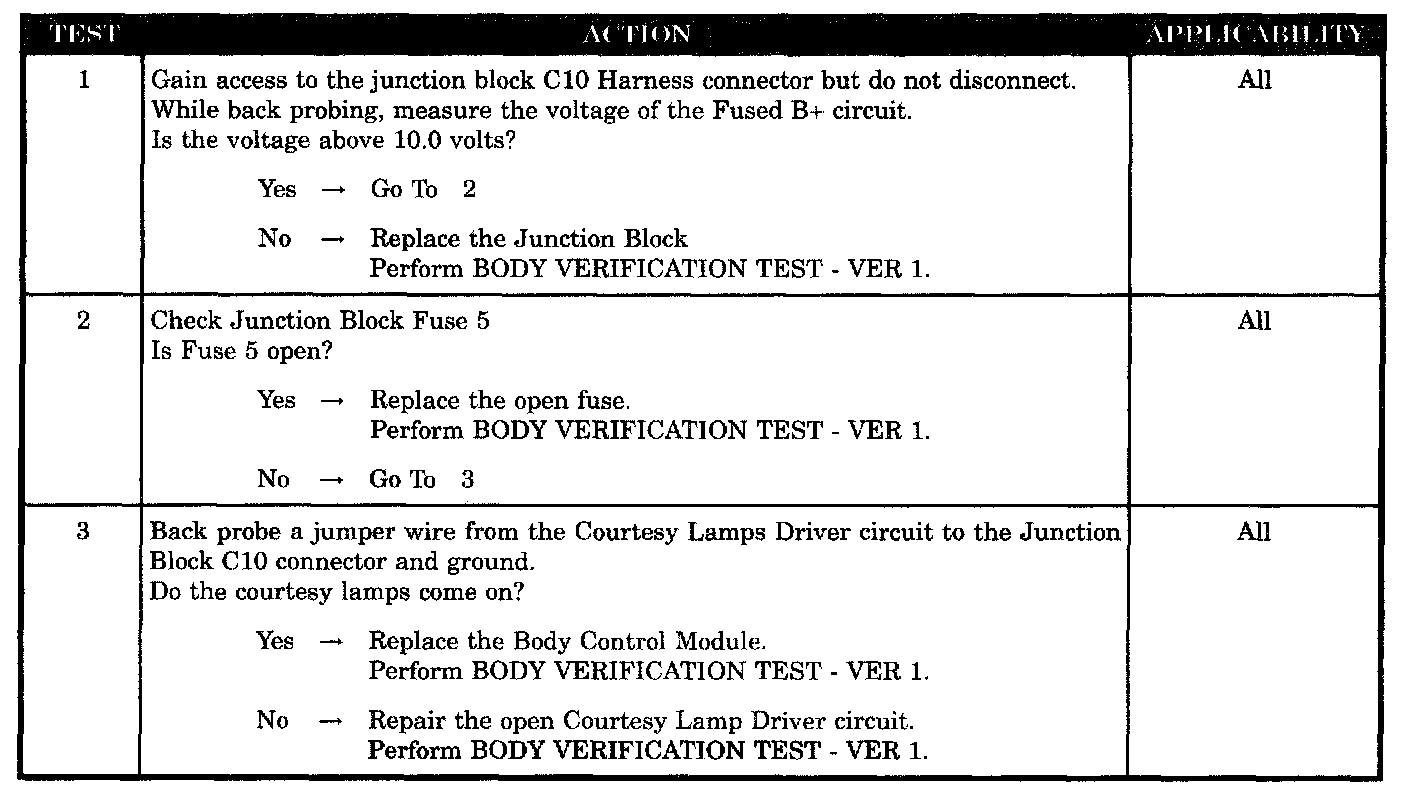

Test 1 - 3:






SYMPTOM
COURTESY LAMP INOPERATIVE - ALL LAMPS

POSSIBLE CAUSES
- Junction block
- Open fuse
- Courtesy lamps driver circuit open
- Body control module
