I/P Illumination Lamps Not Working Properly

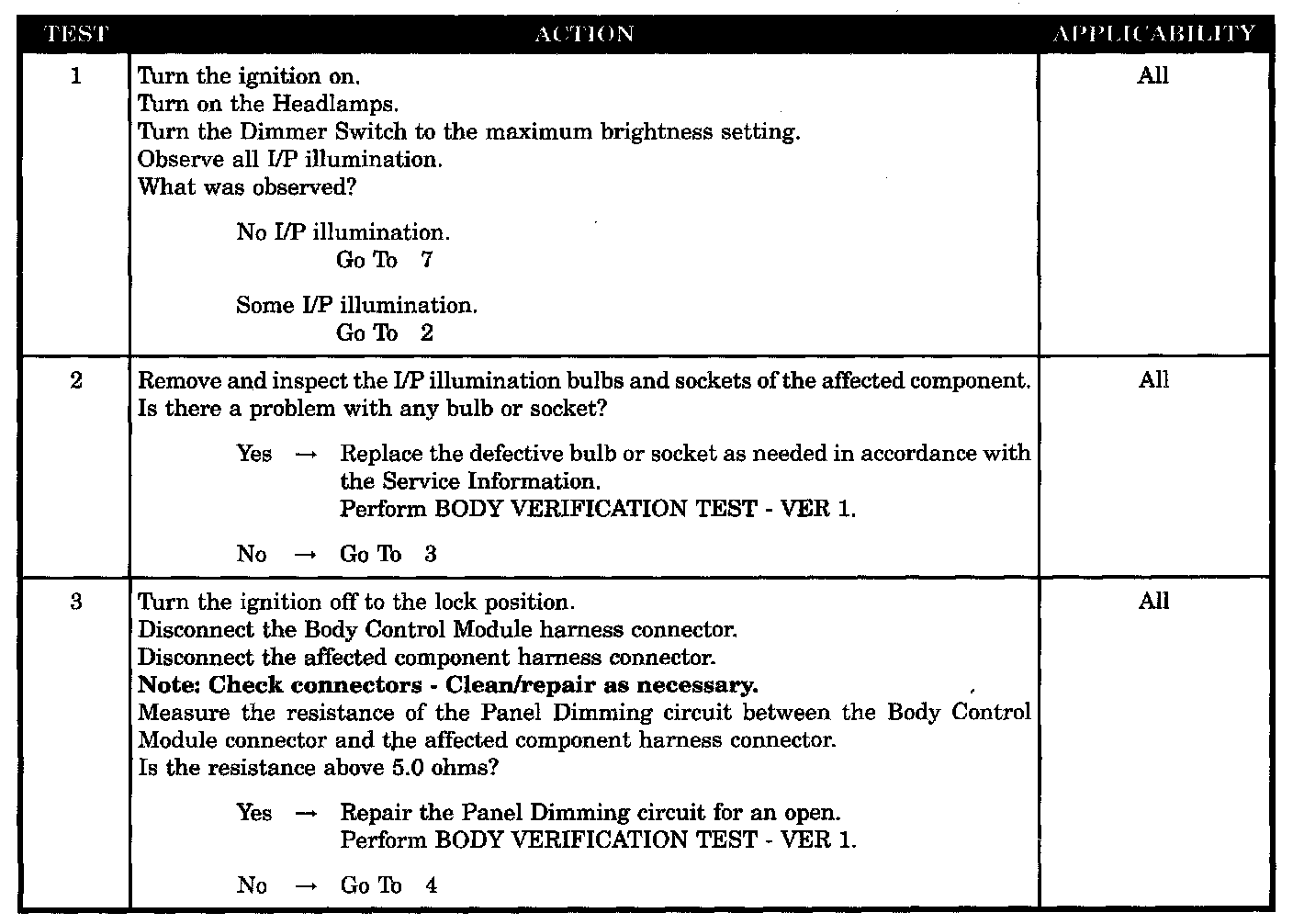

Test 1 - 3:

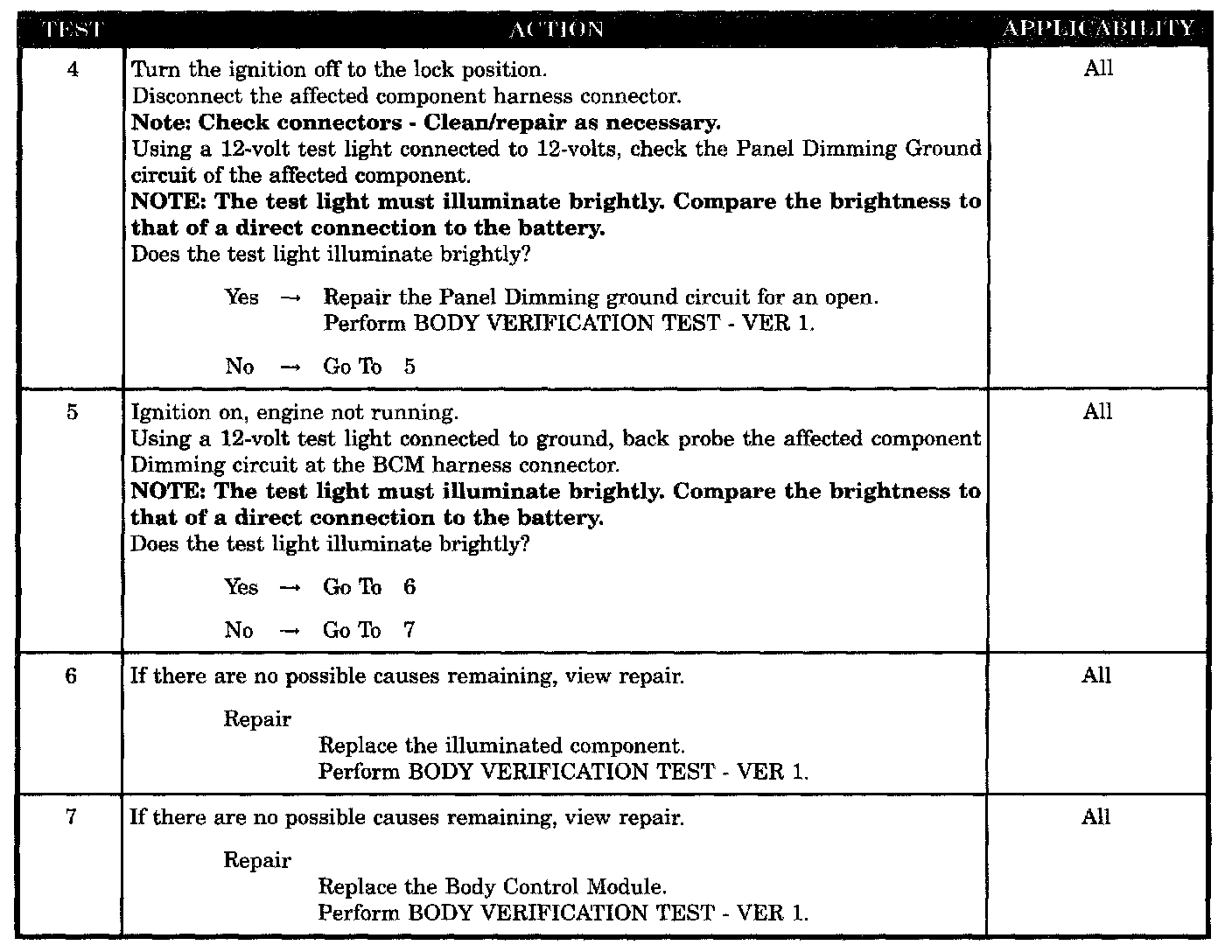

Test 4 - 7:






SYMPTOM
I/P ILLUMINATION LAMPS NOT WORKING PROPERLY

POSSIBLE CAUSES
- Defective bulb or socket
- Panel dimming circuit open
- Panel dimming ground circuit open
- Body control module
- Illuminated component
