Power Top

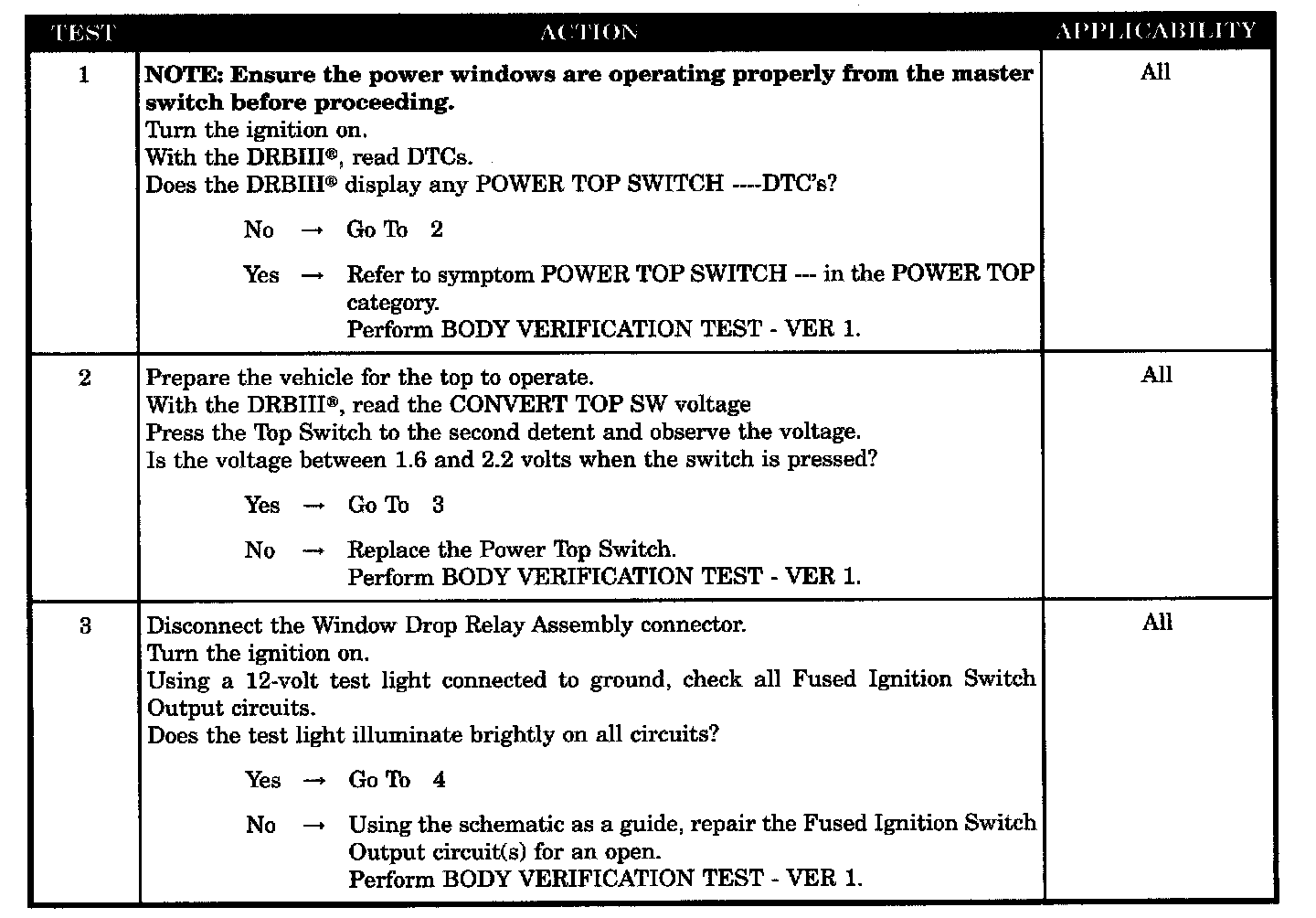

Test 1 - 3:

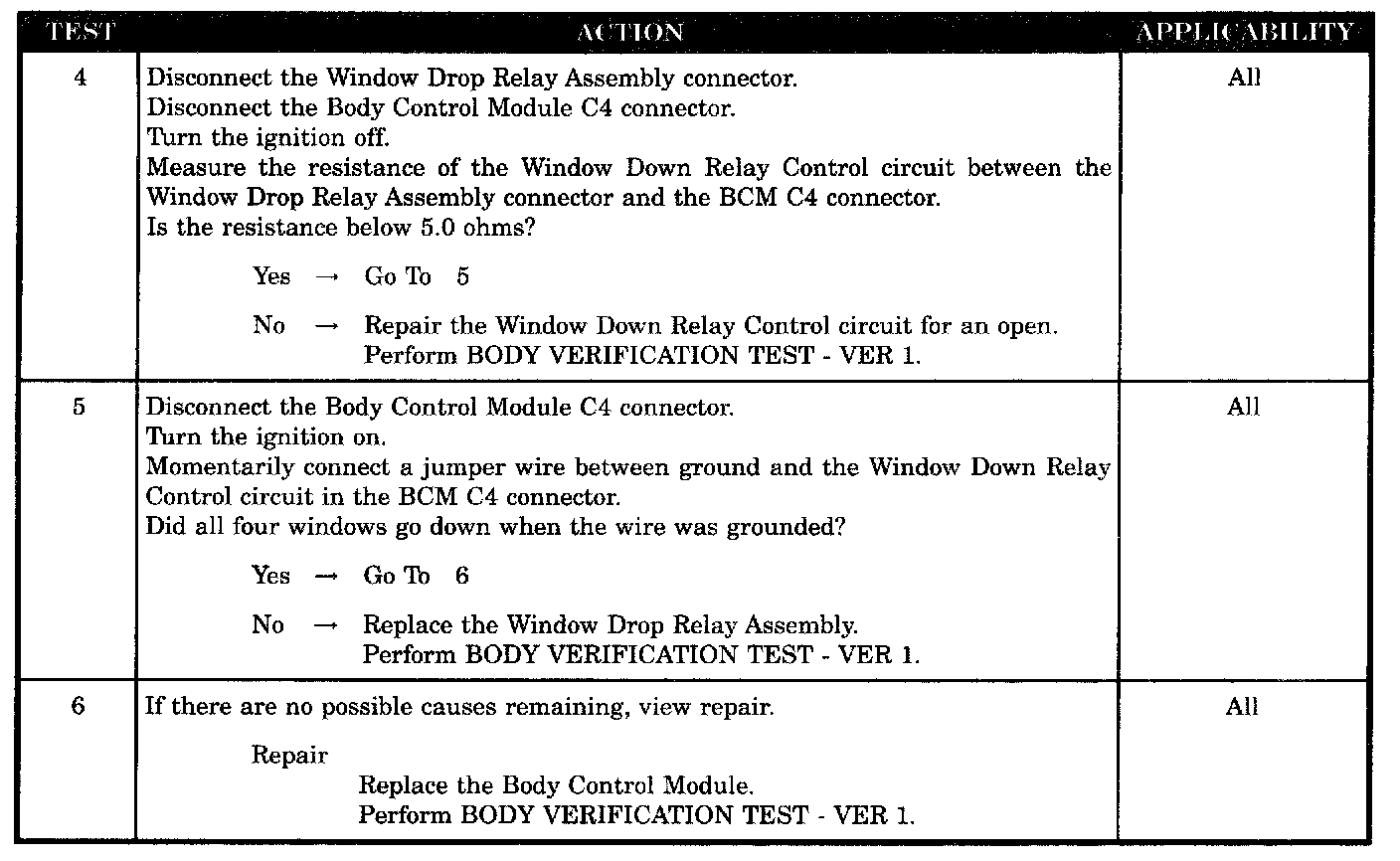

Test 4 - 6:






SYMPTOM
FOUR WINDOW DROP INOPERATIVE

POSSIBLE CAUSES
- DTC present
- Convertible top switch
- Fused ignition switch output open
- Window down relay control open
- Window drop relay assembly open
- Body control module - window down relay control open
