Windshield Wiper & Washer

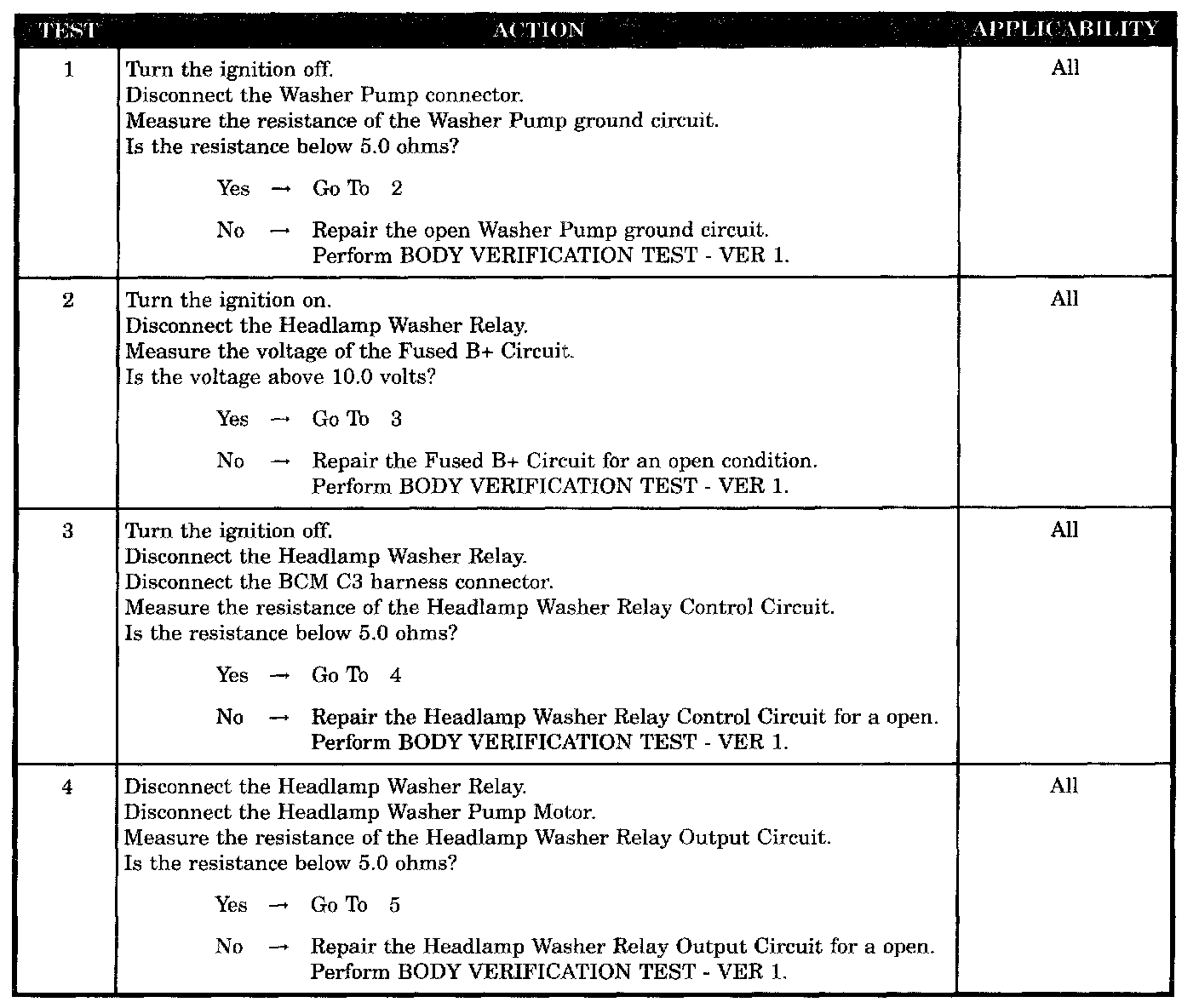

Test 1 - 4:

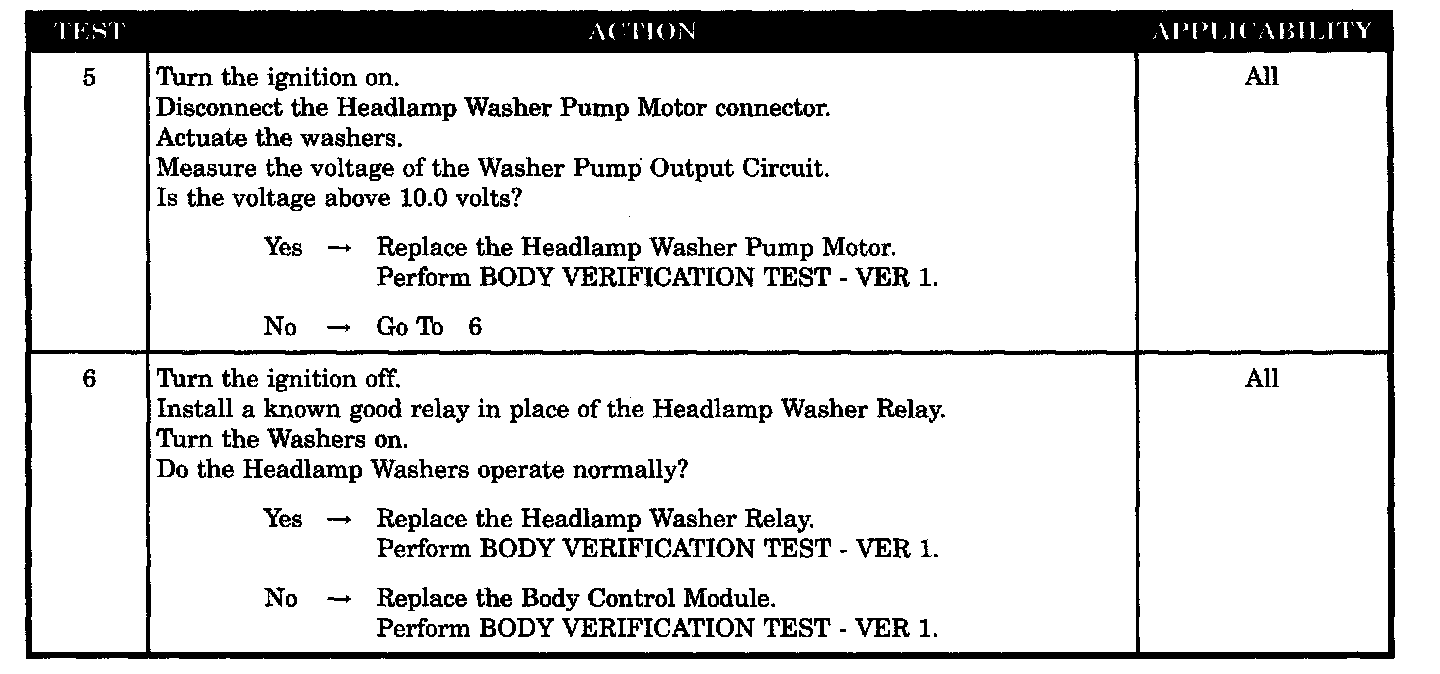

Test 5 - 6:






SYMPTOM
HEADLAMP WASHER INOPERATIVE

POSSIBLE CAUSES
- Open ground circuit
- Fused B+ circuit open
- Headlamp washer relay control circuit open
- Headlamp washer relay output circuit open
- Headlamp washer pump motor
- Headlamp washer relay
- Body control module
