System Schematics

Base Airbag Systems:

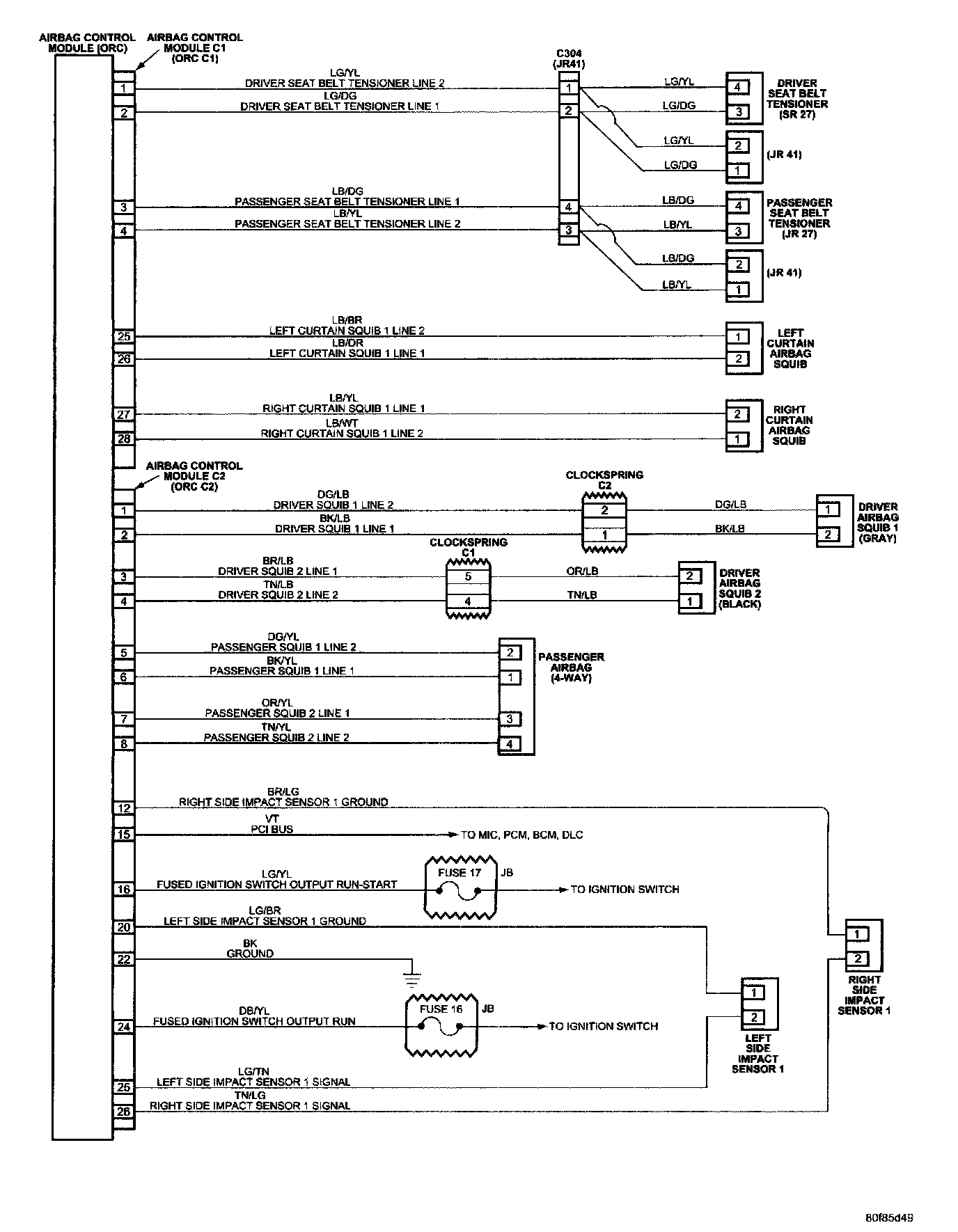

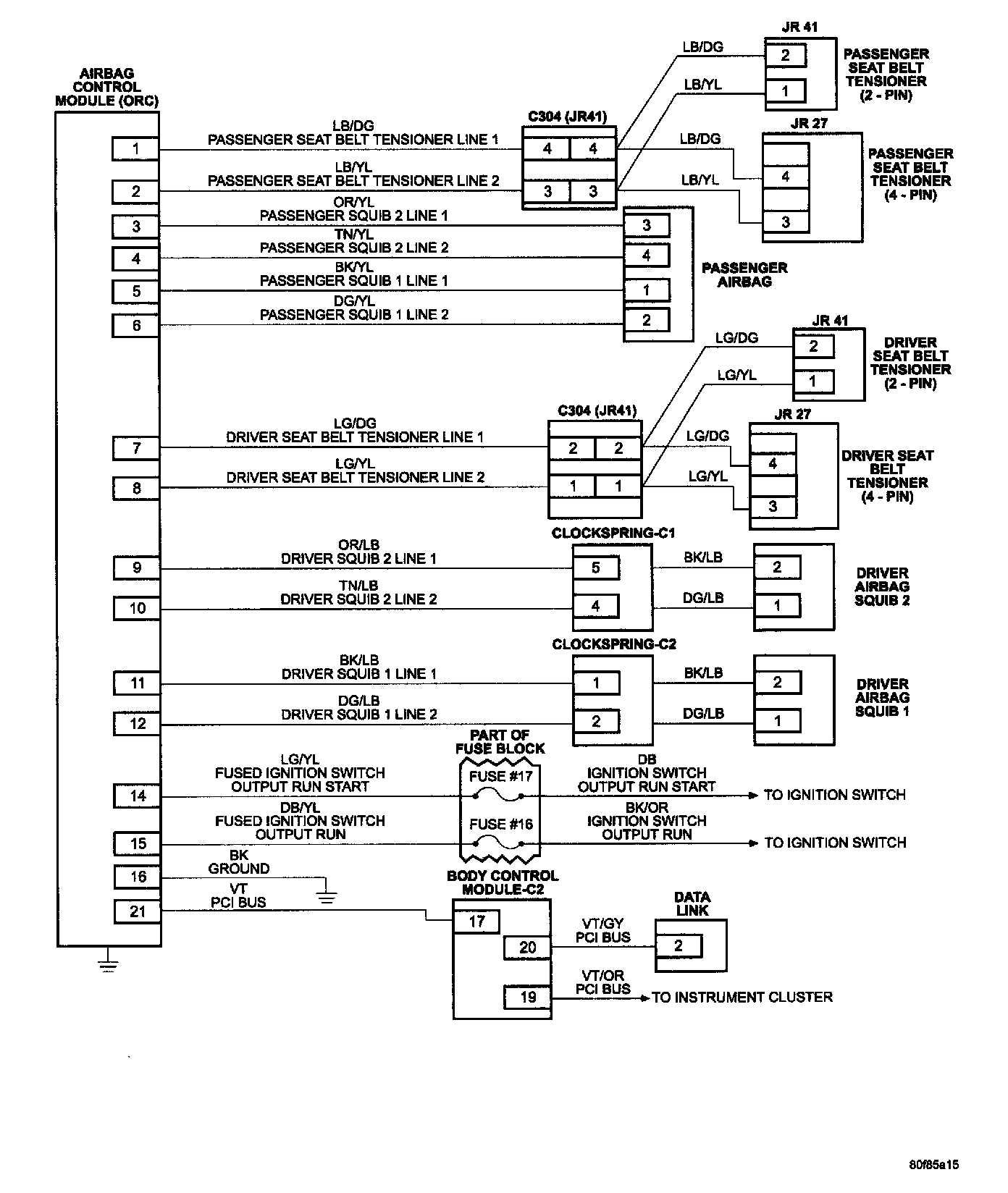

Premium Airbag Systems:

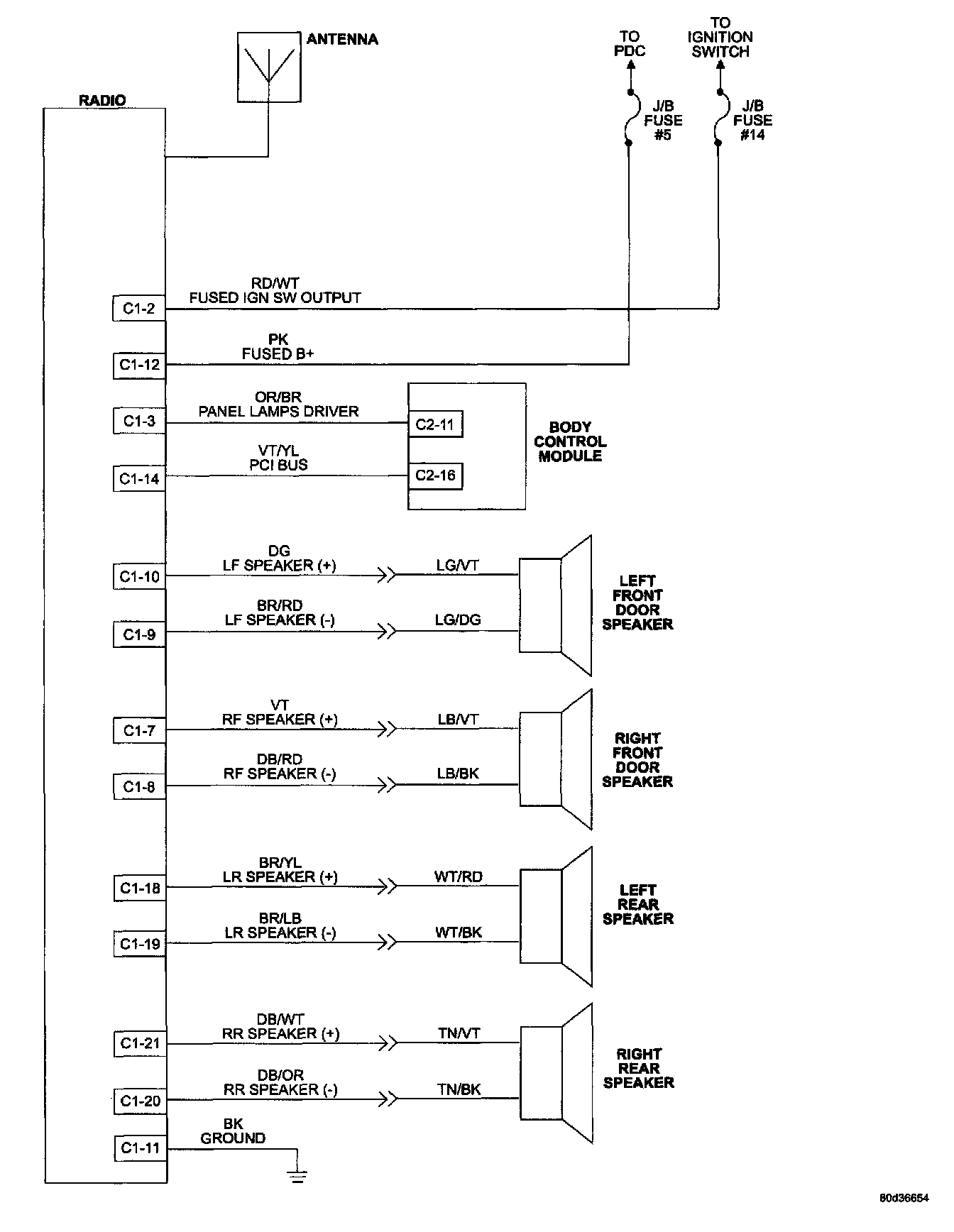

Base Radio - JR41 Audio System:

Base Radio - JR27 Audio System:

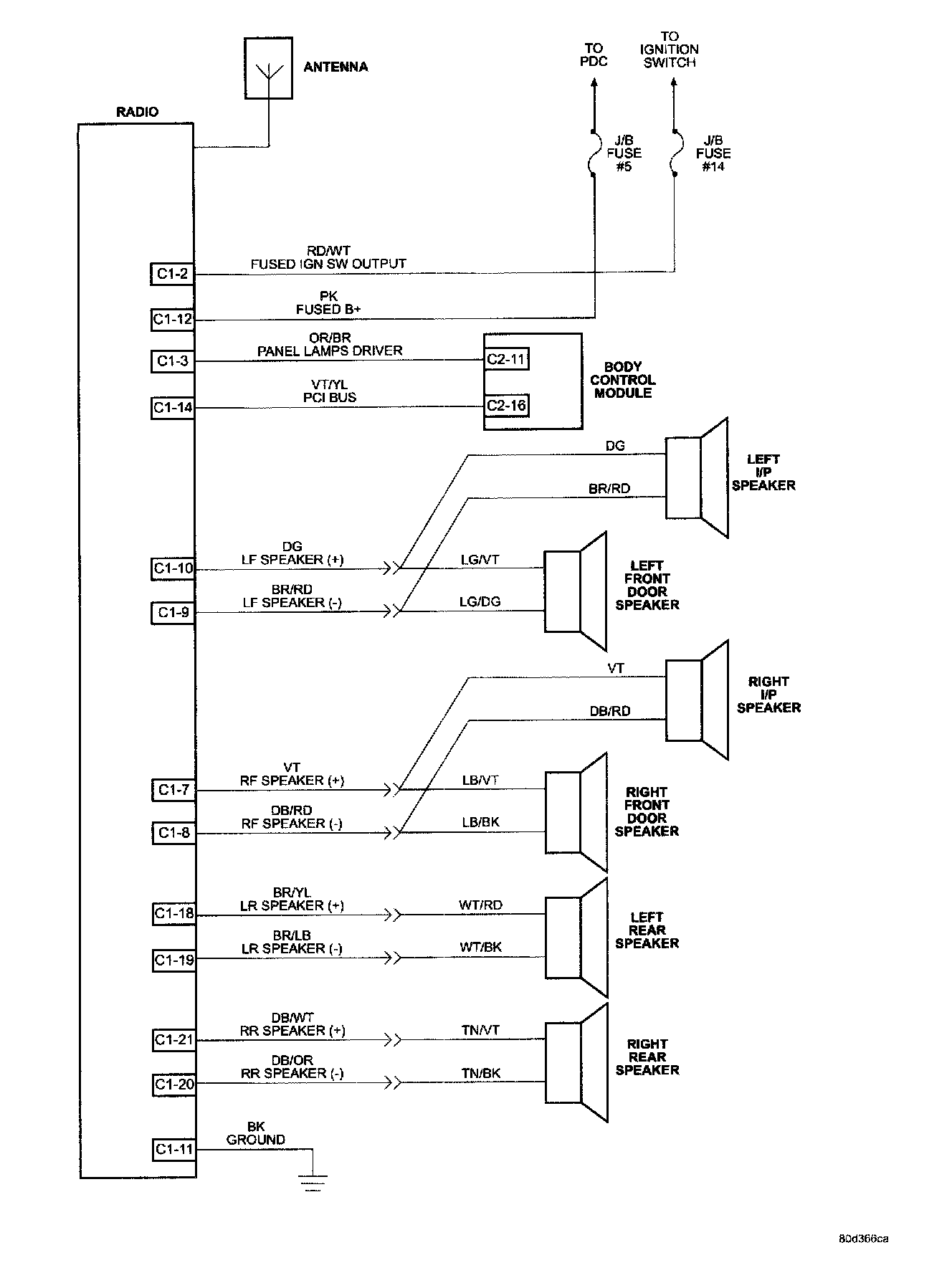

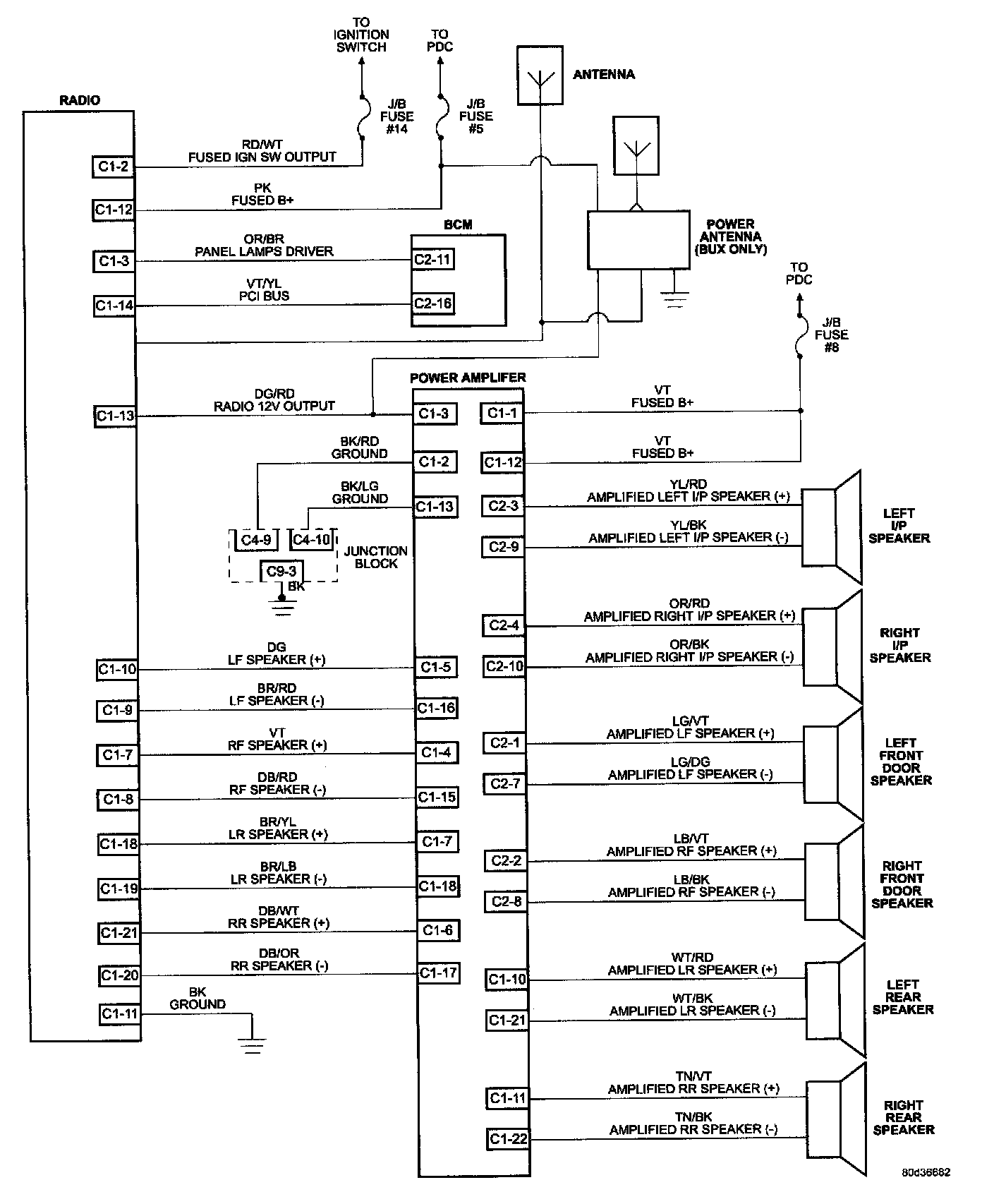

Premium System - JR41:

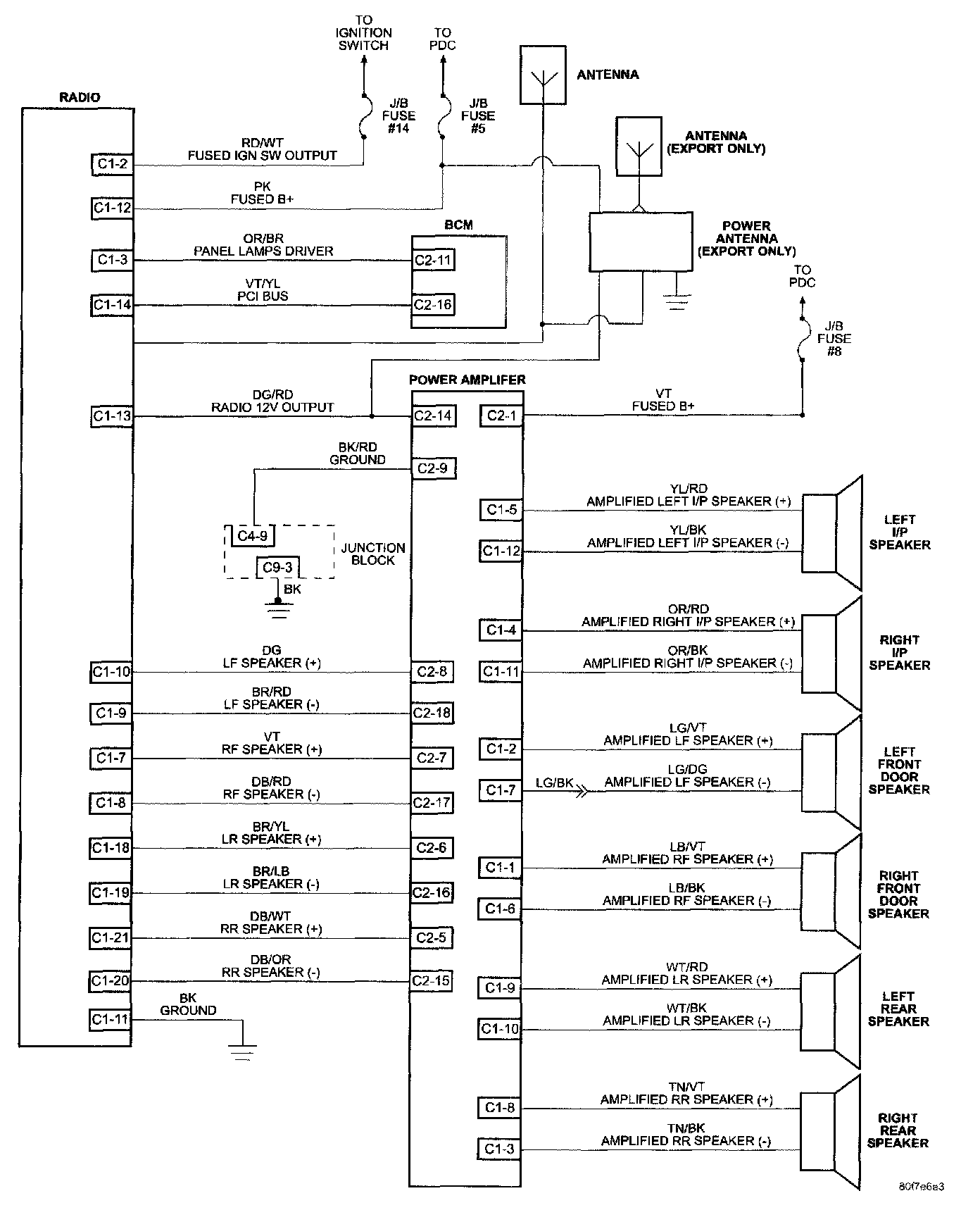

Premium System - JR27:

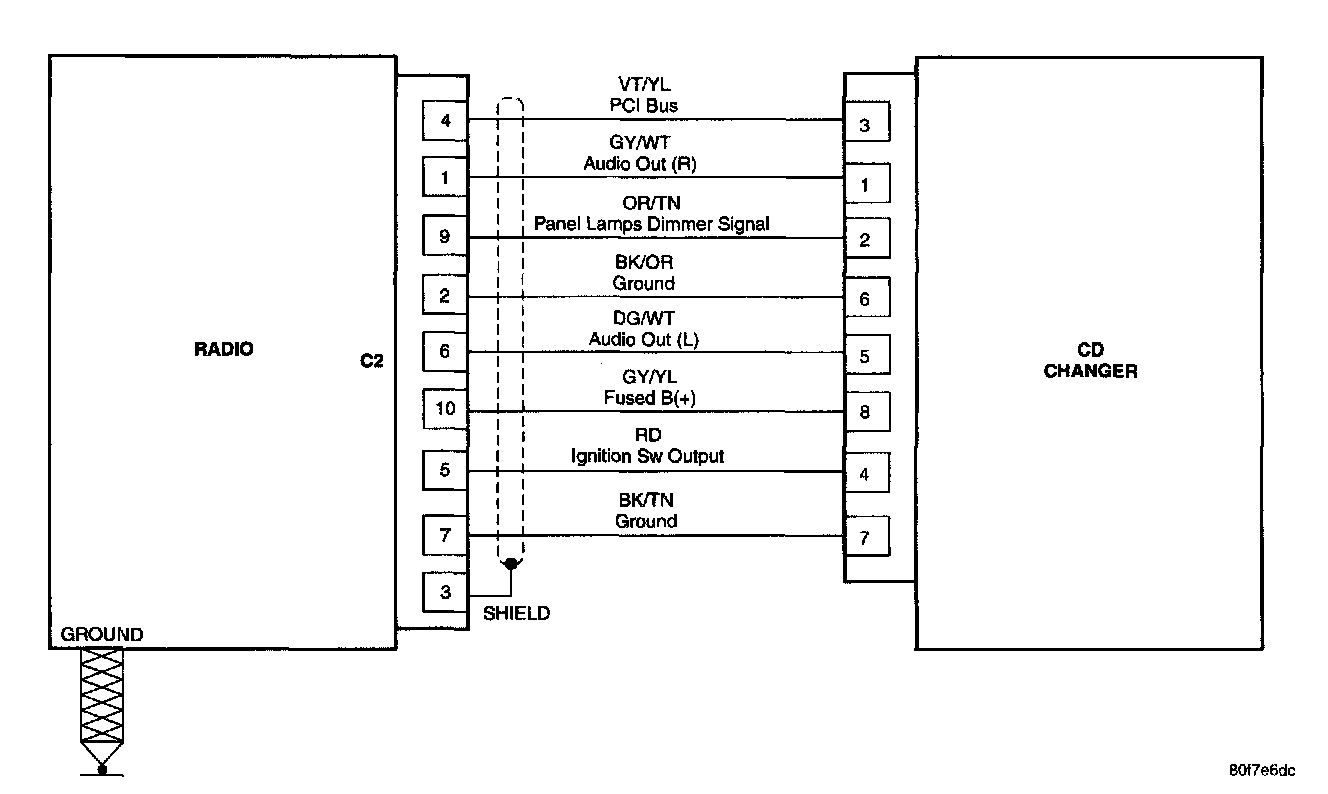

CD Changer:

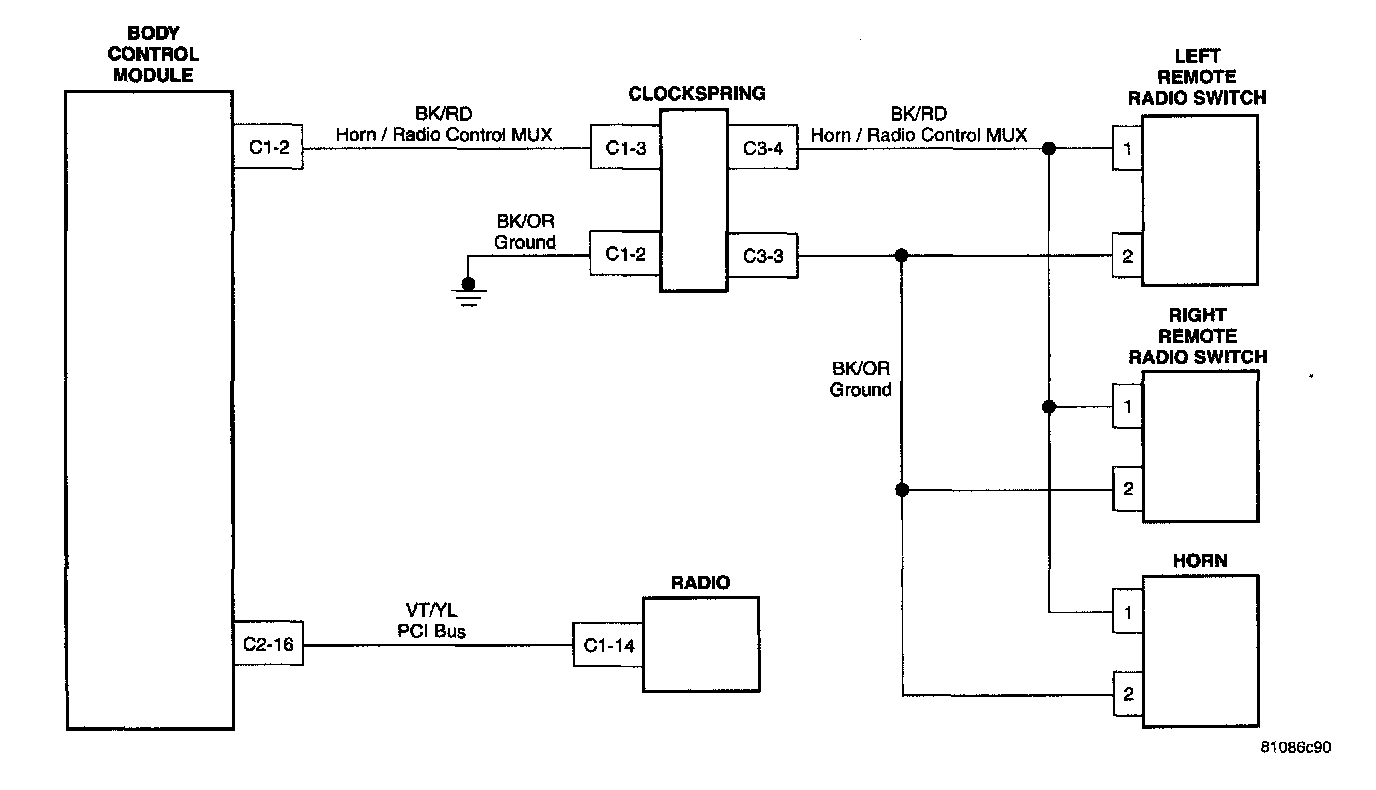

Remote Radio Controls:

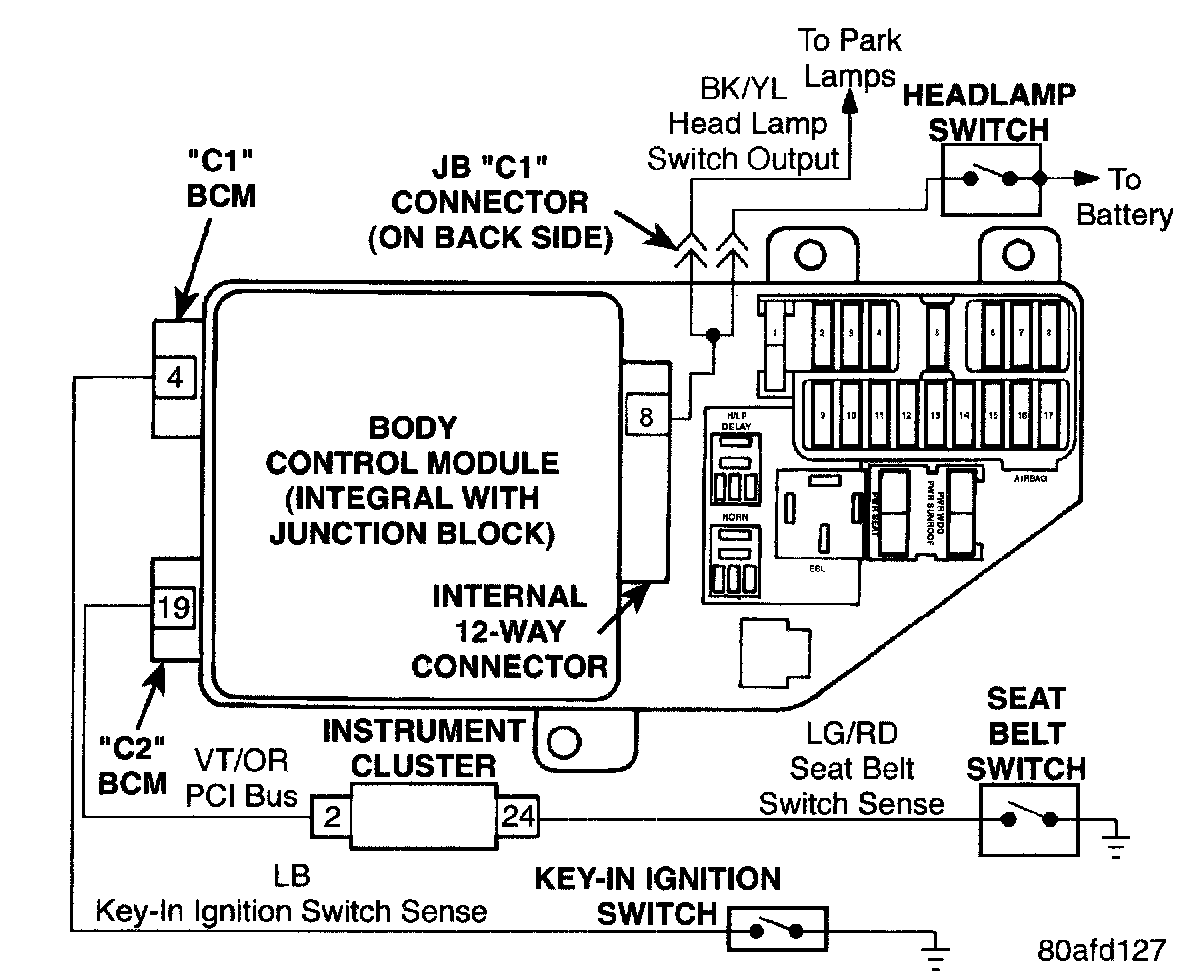

Chime System:

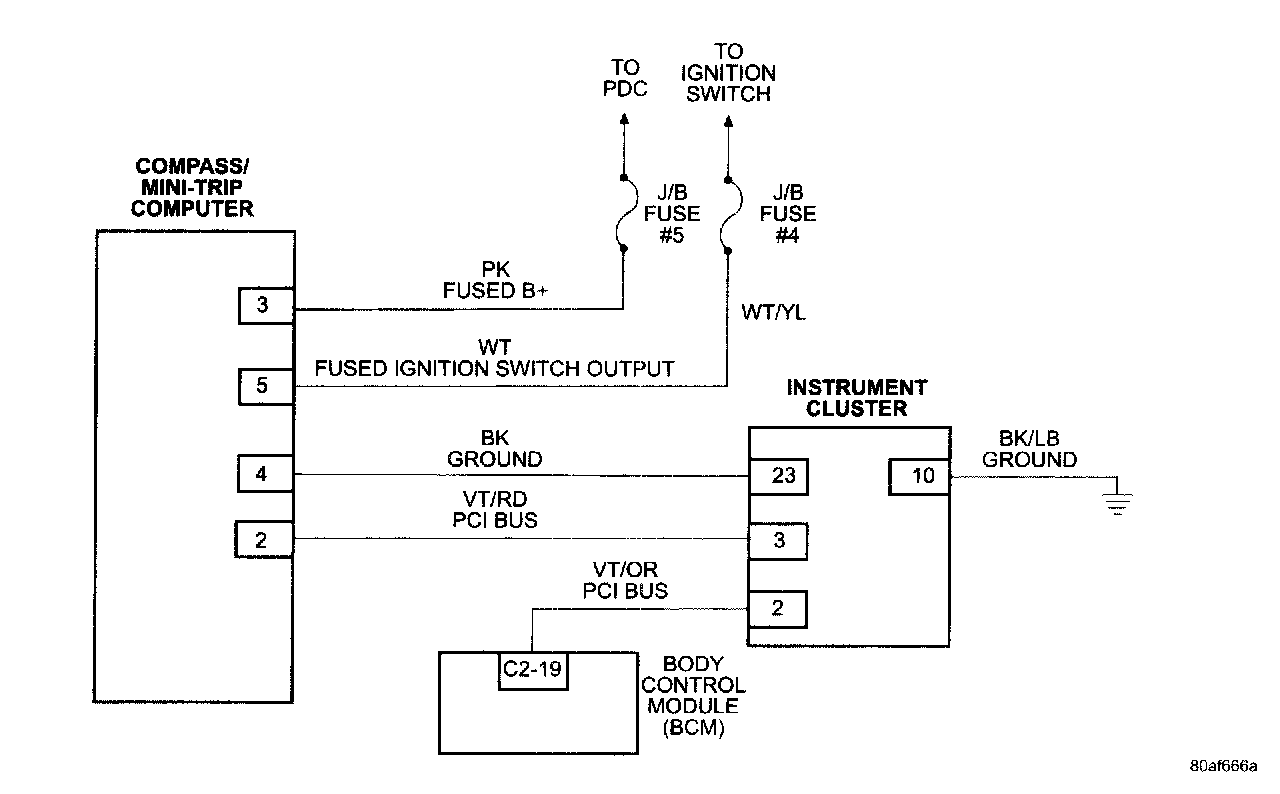

Compass/Mini Trip Computer (CMTC):

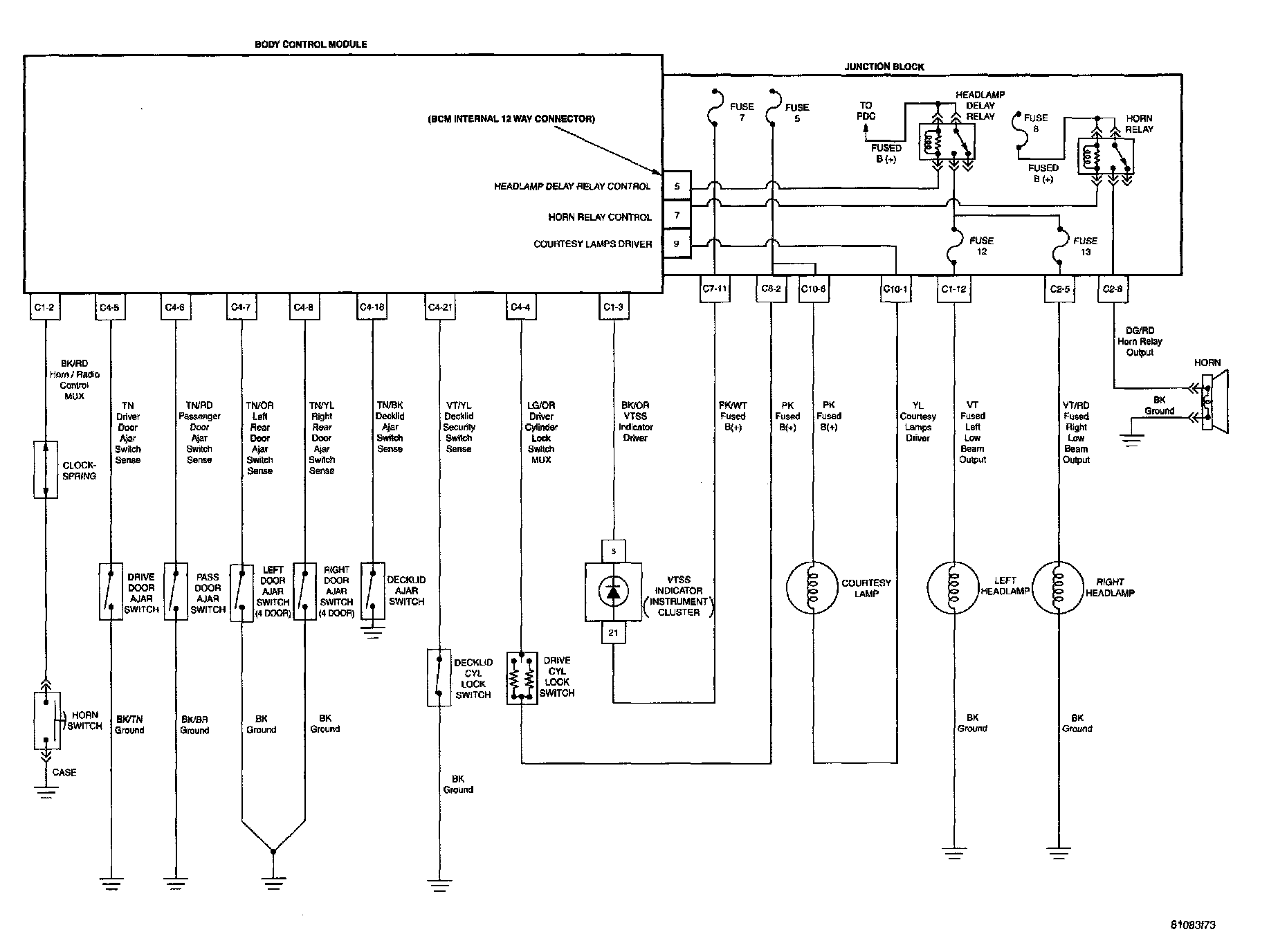

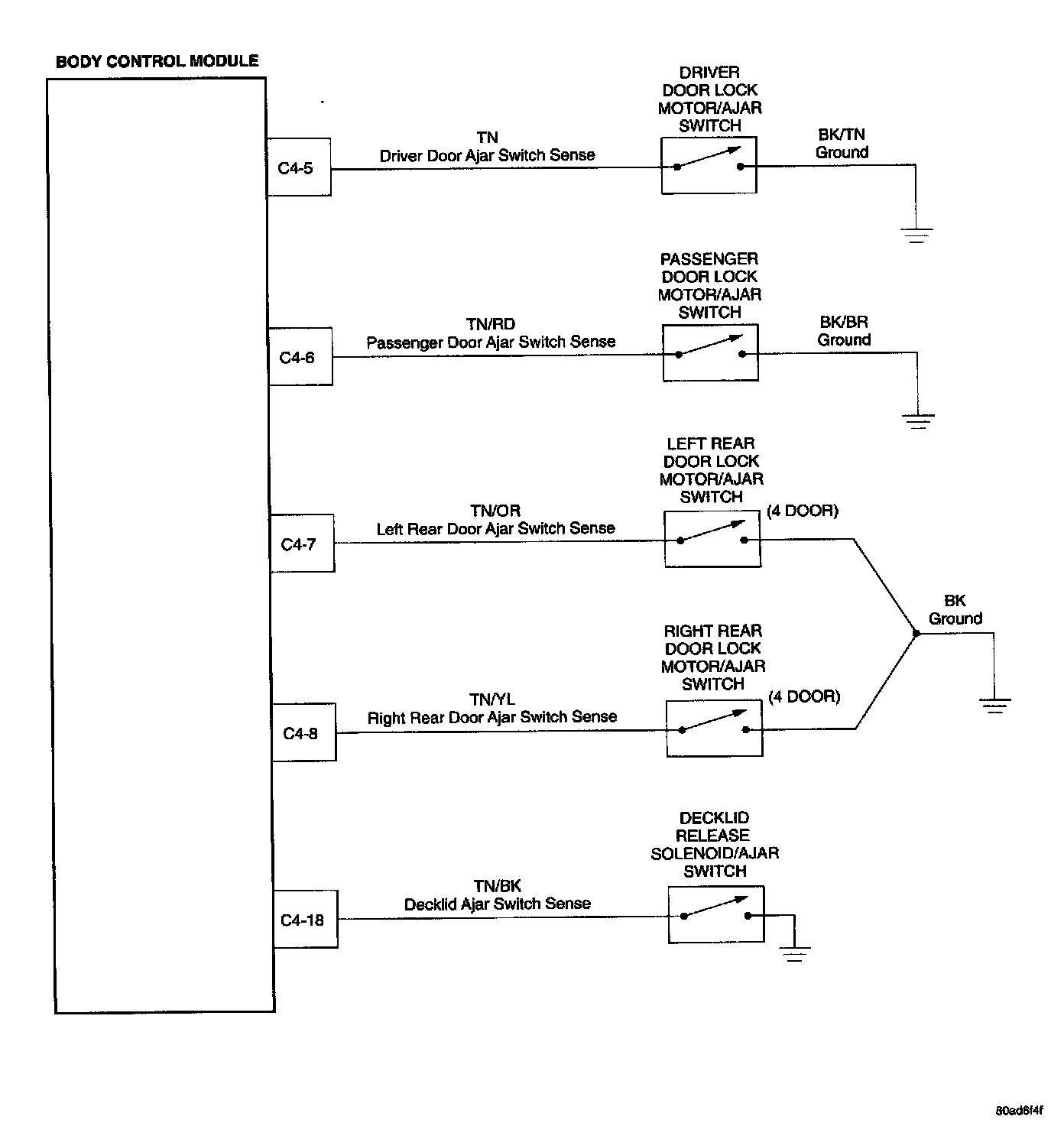

Door Ajar:

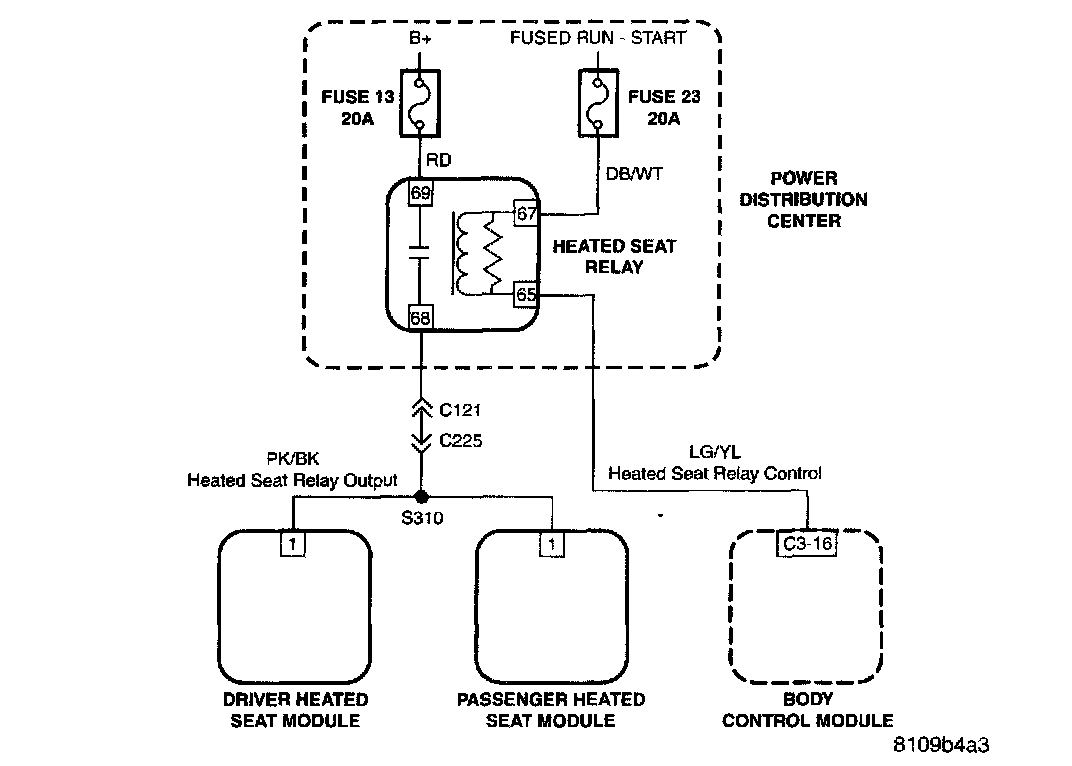

Heated Seat Relay:

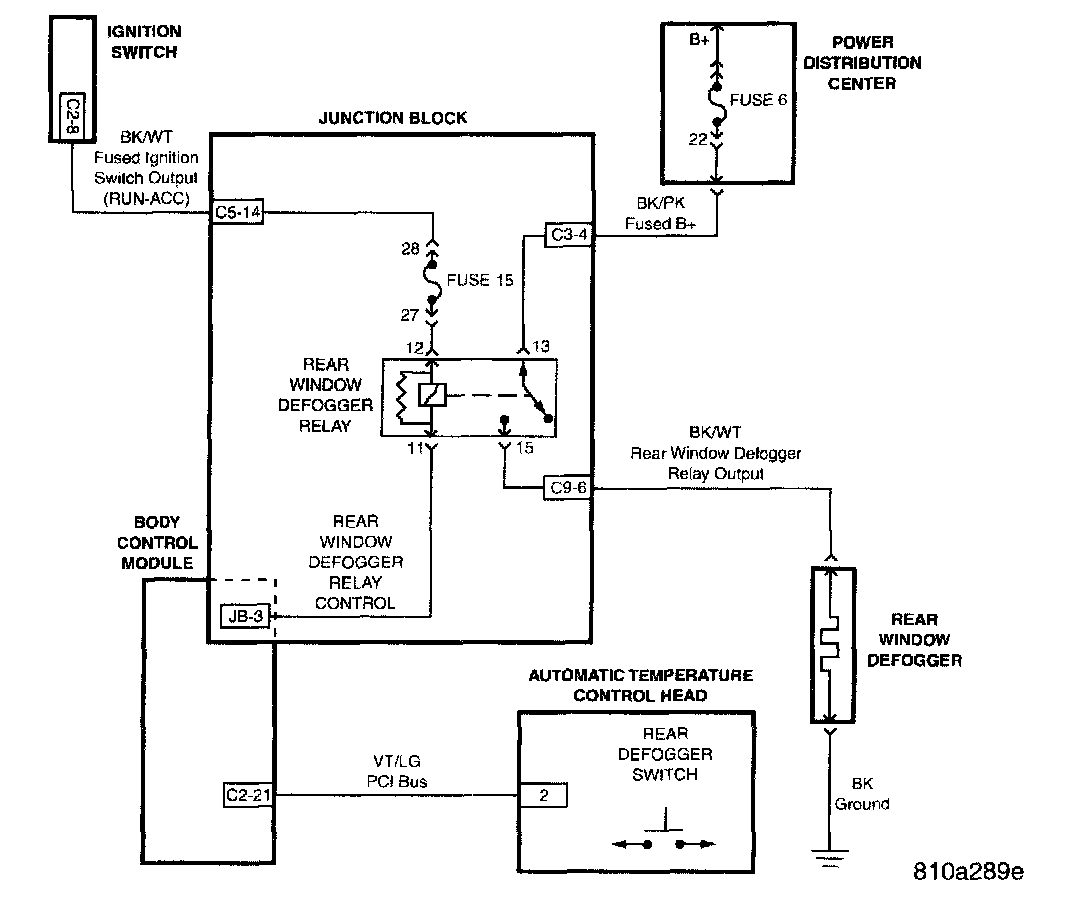

Rear Window Defogger (Automatic Temperature Control):

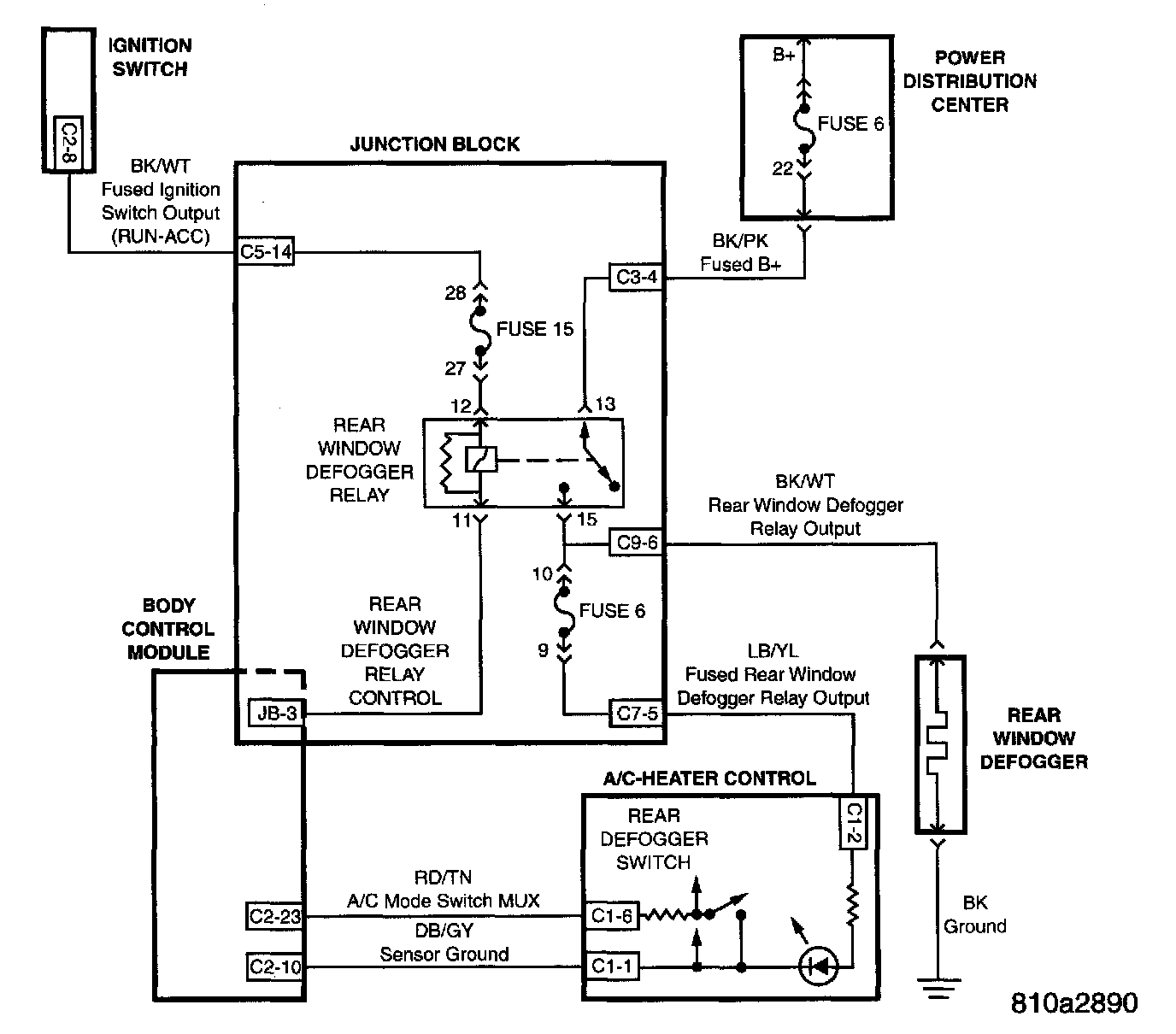

Rear Window Defogger (Manual Temperature Control):

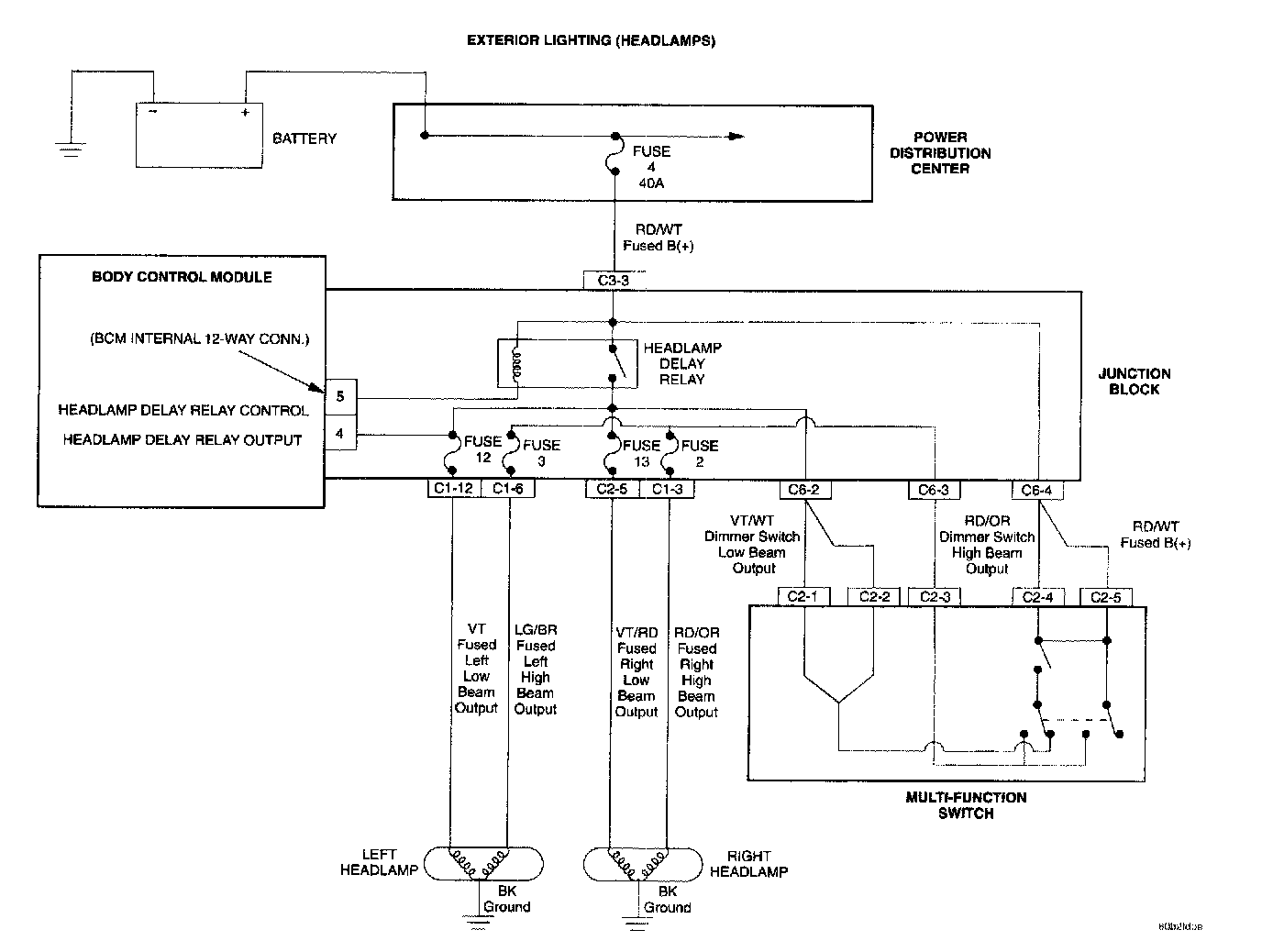

Exterior Lighting (Headlamps):

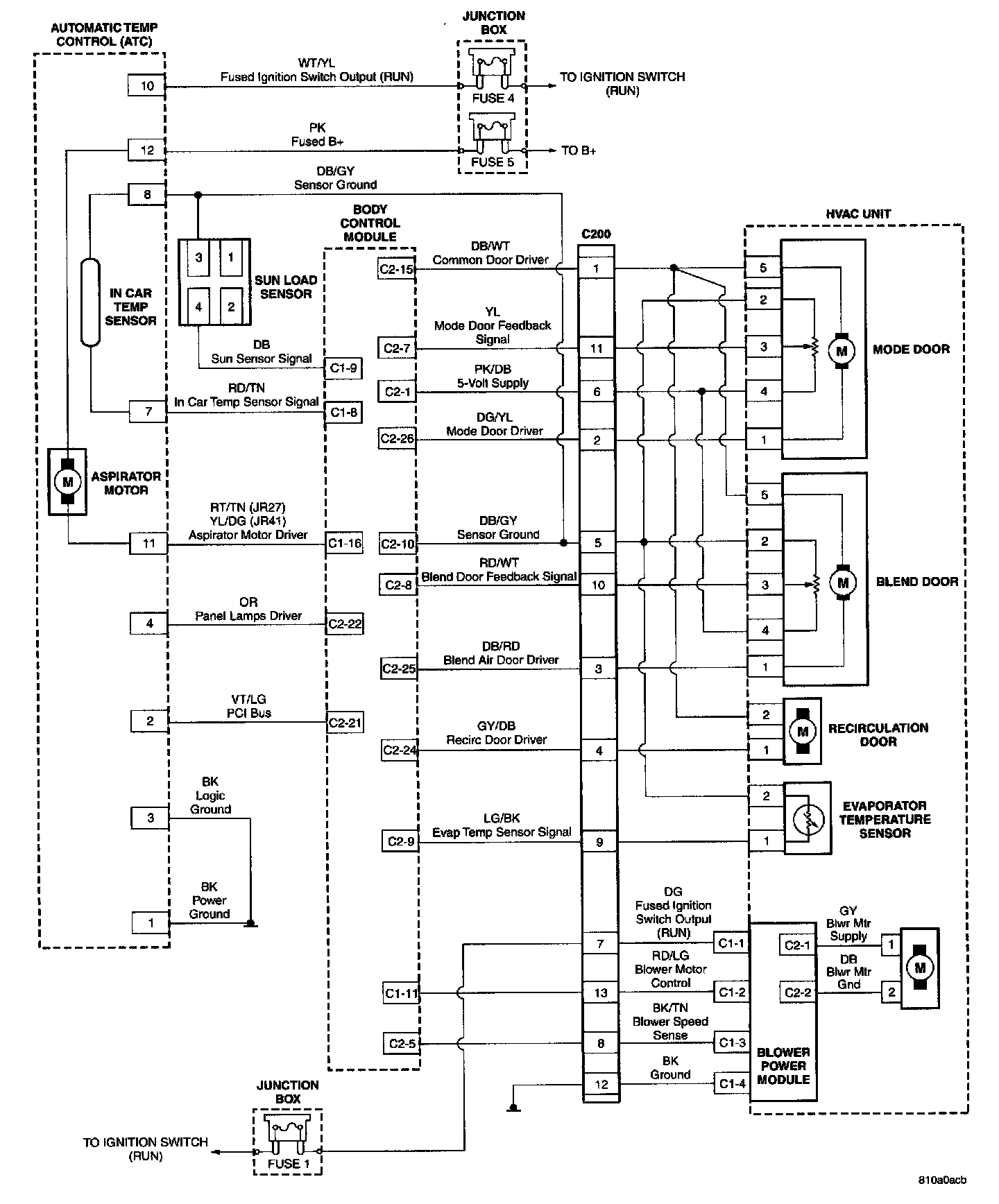

Automatic Temperature Control (ATC):

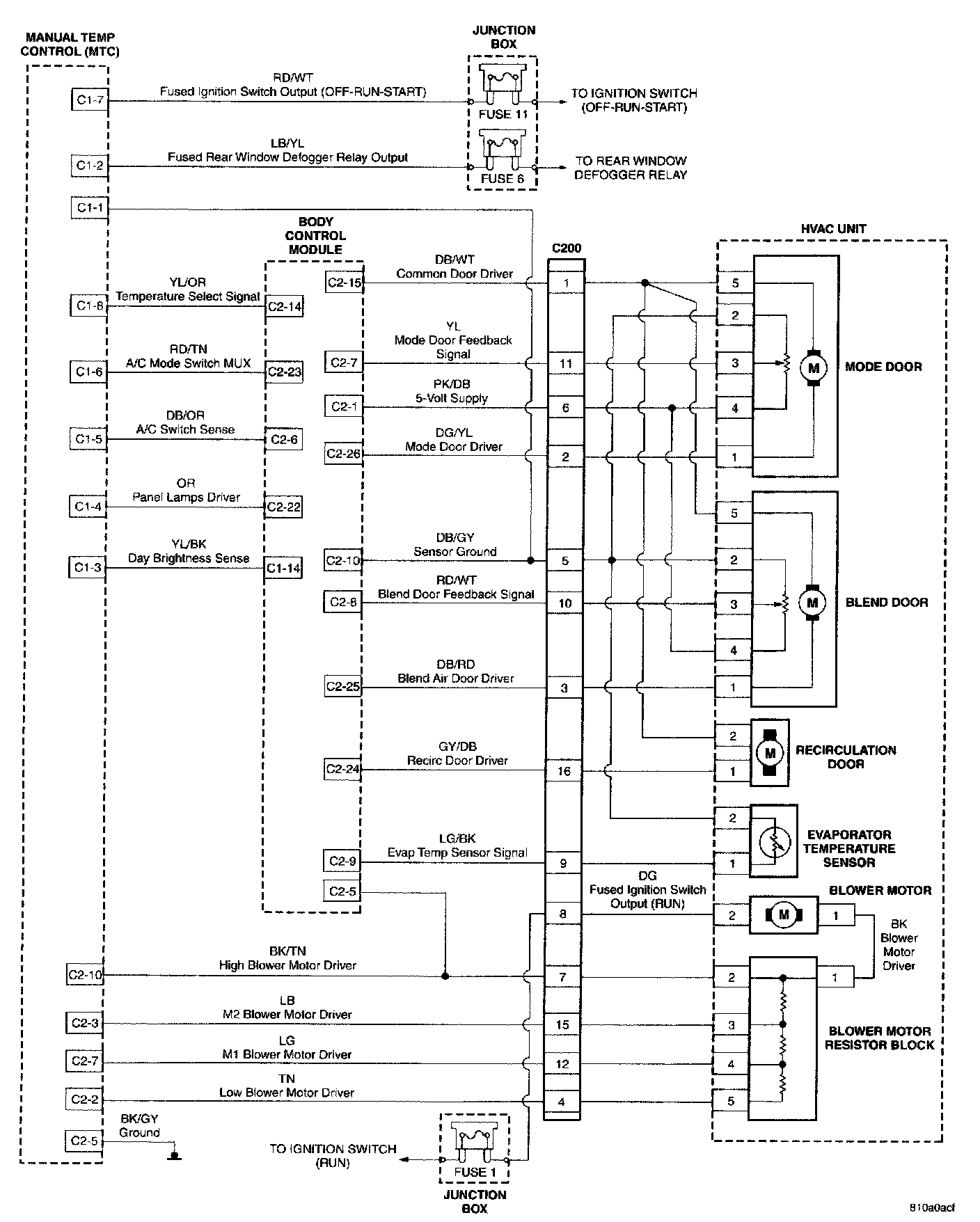

Manual Temperature Control (MTC):

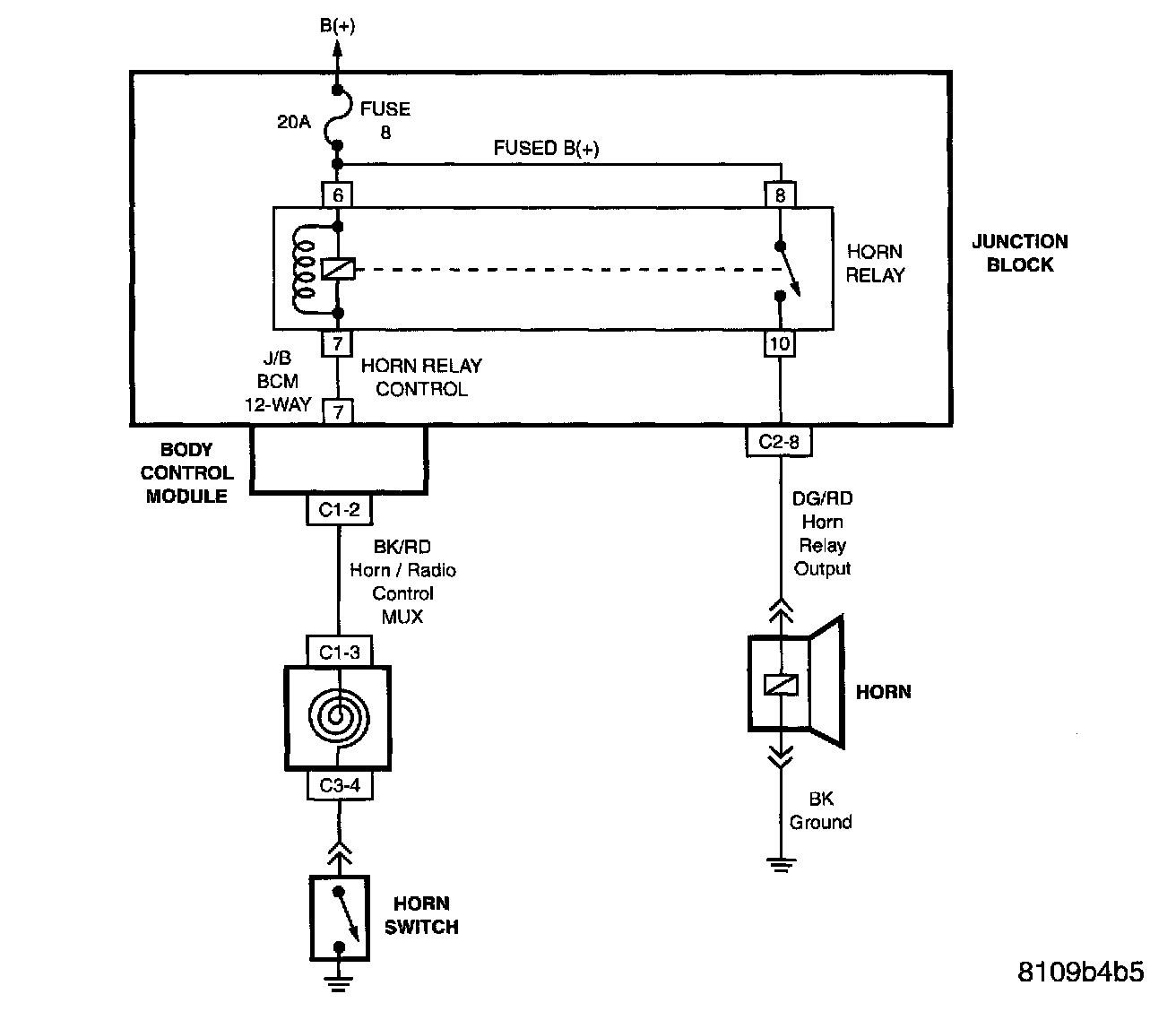

Horn System:

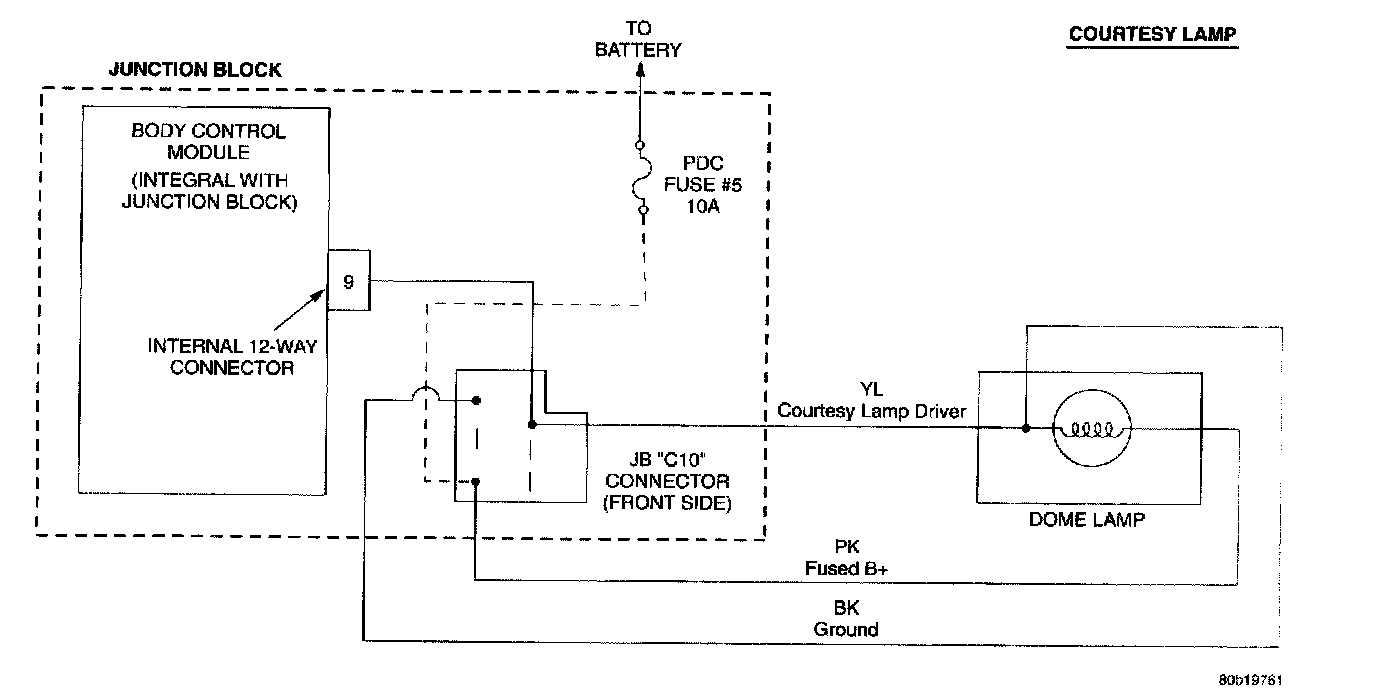

Courtesy Lamps:

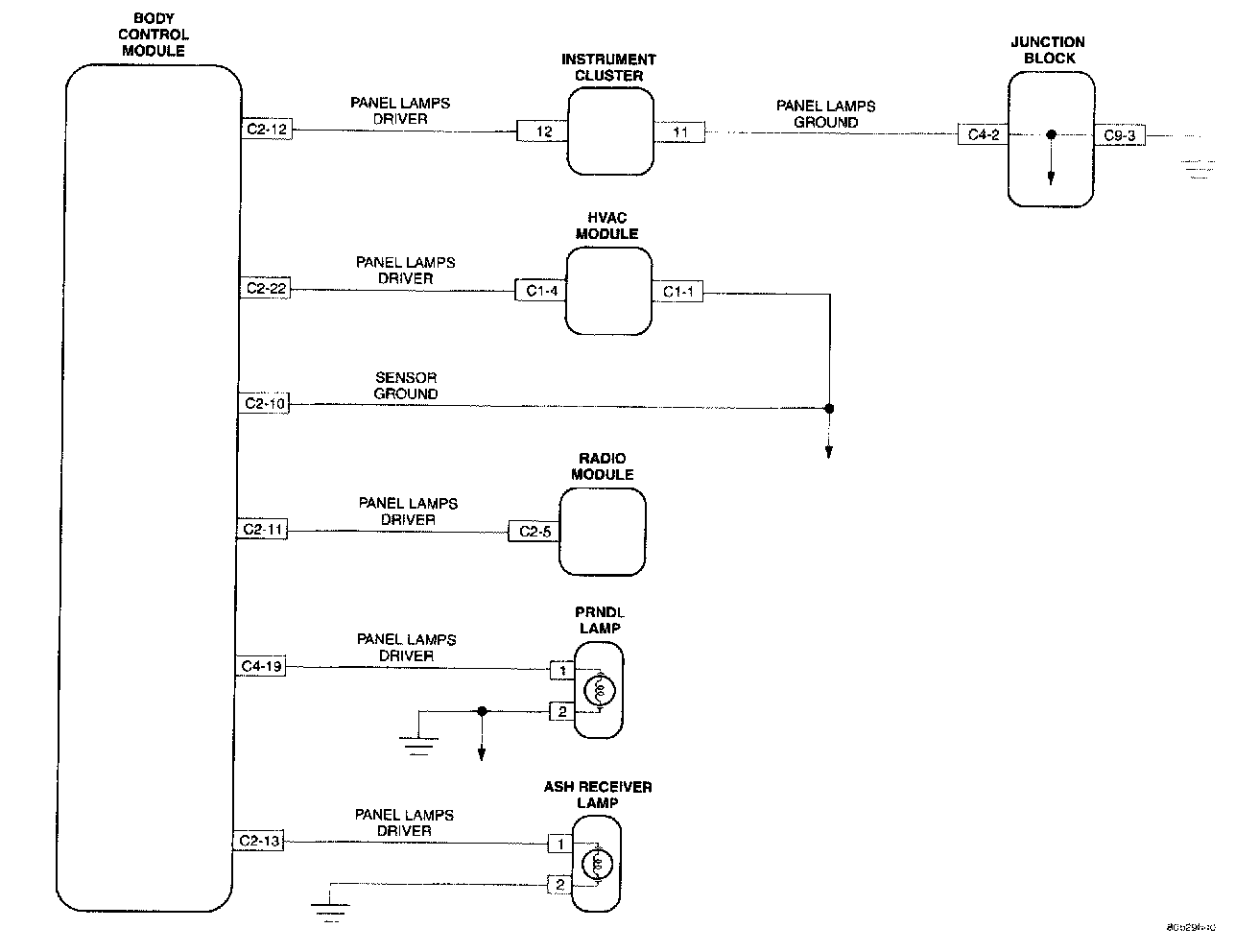

Panel Lamps:

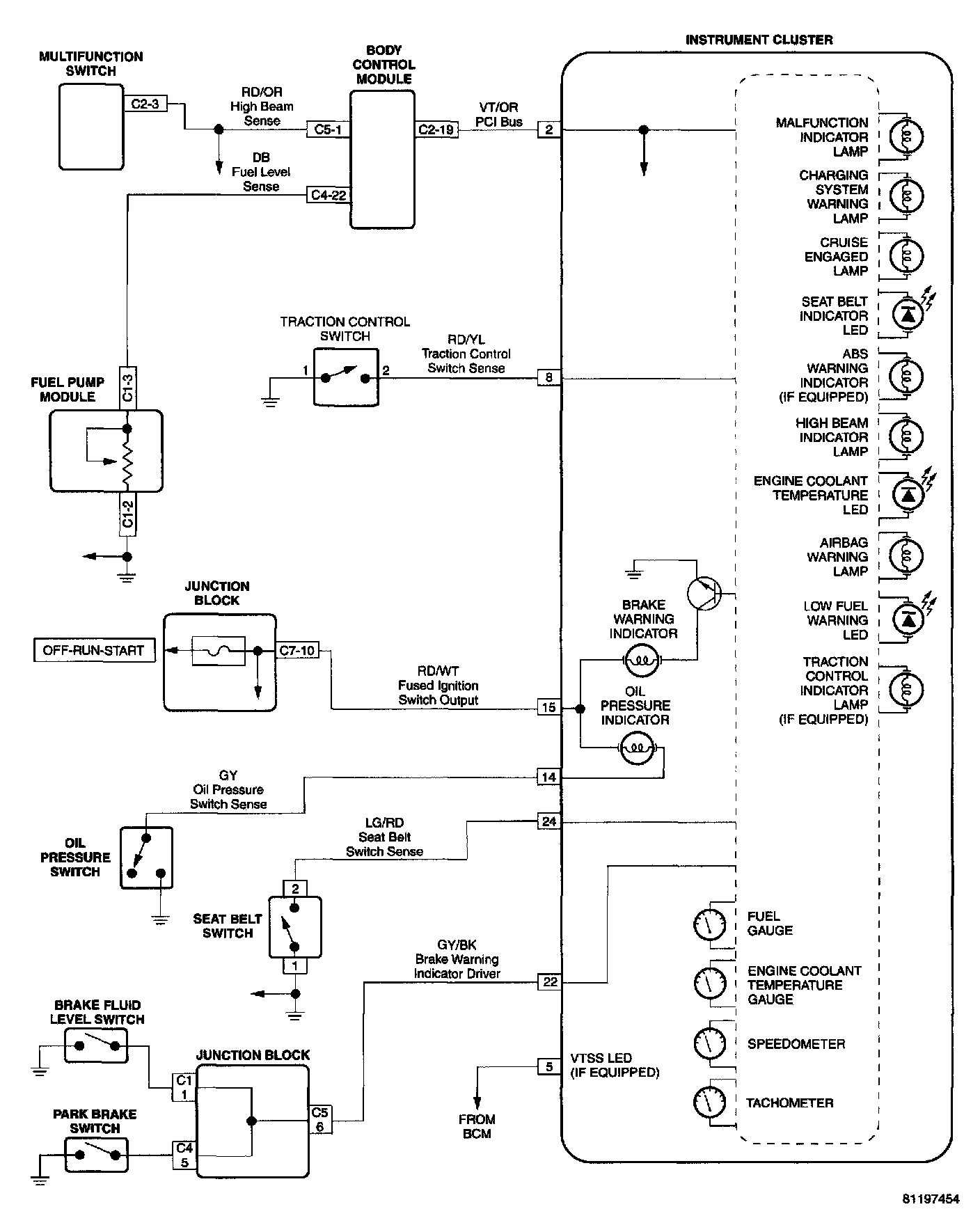

Mechanical Instrument Cluster:

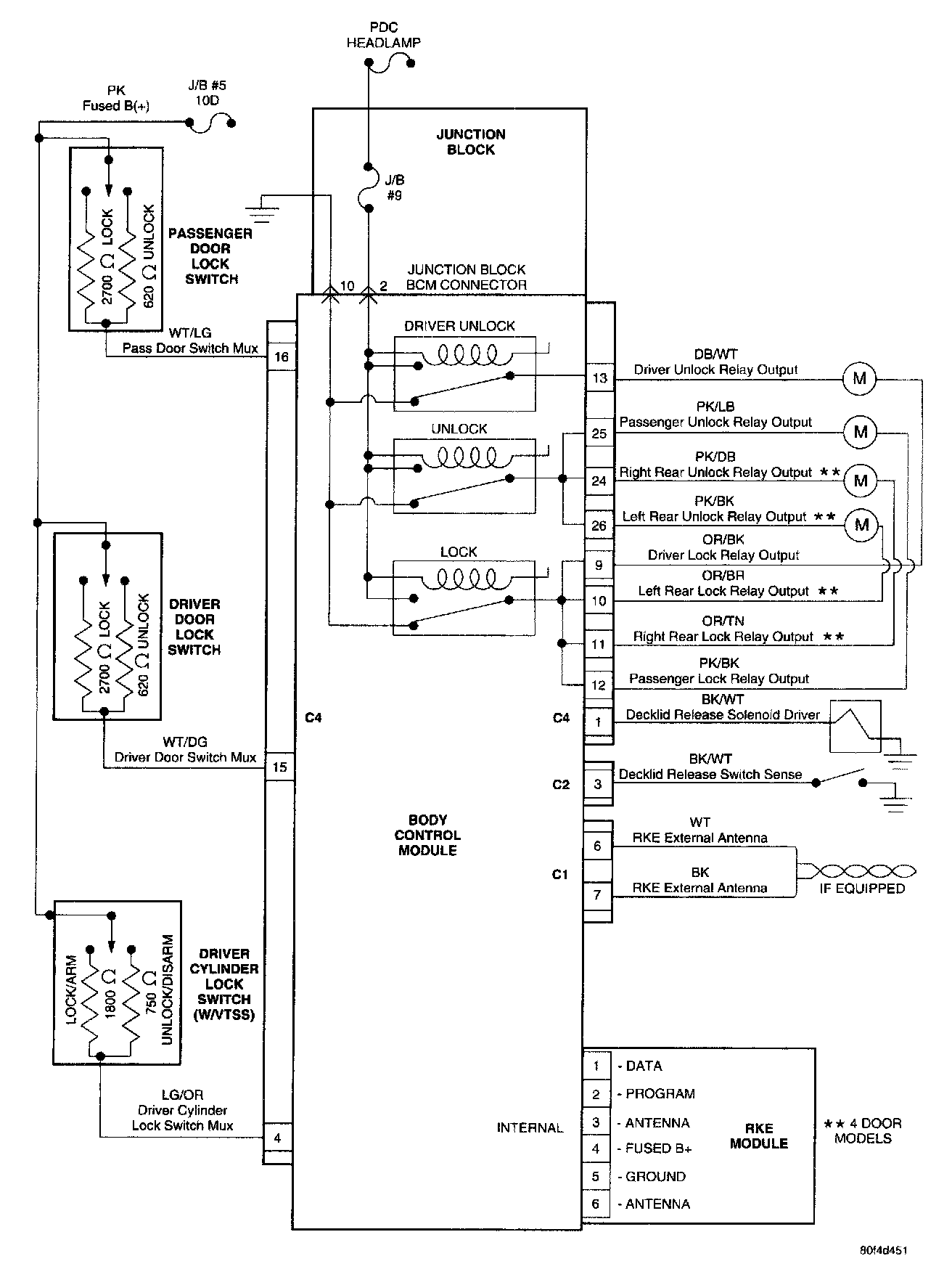

Power Door Locks/RKE:

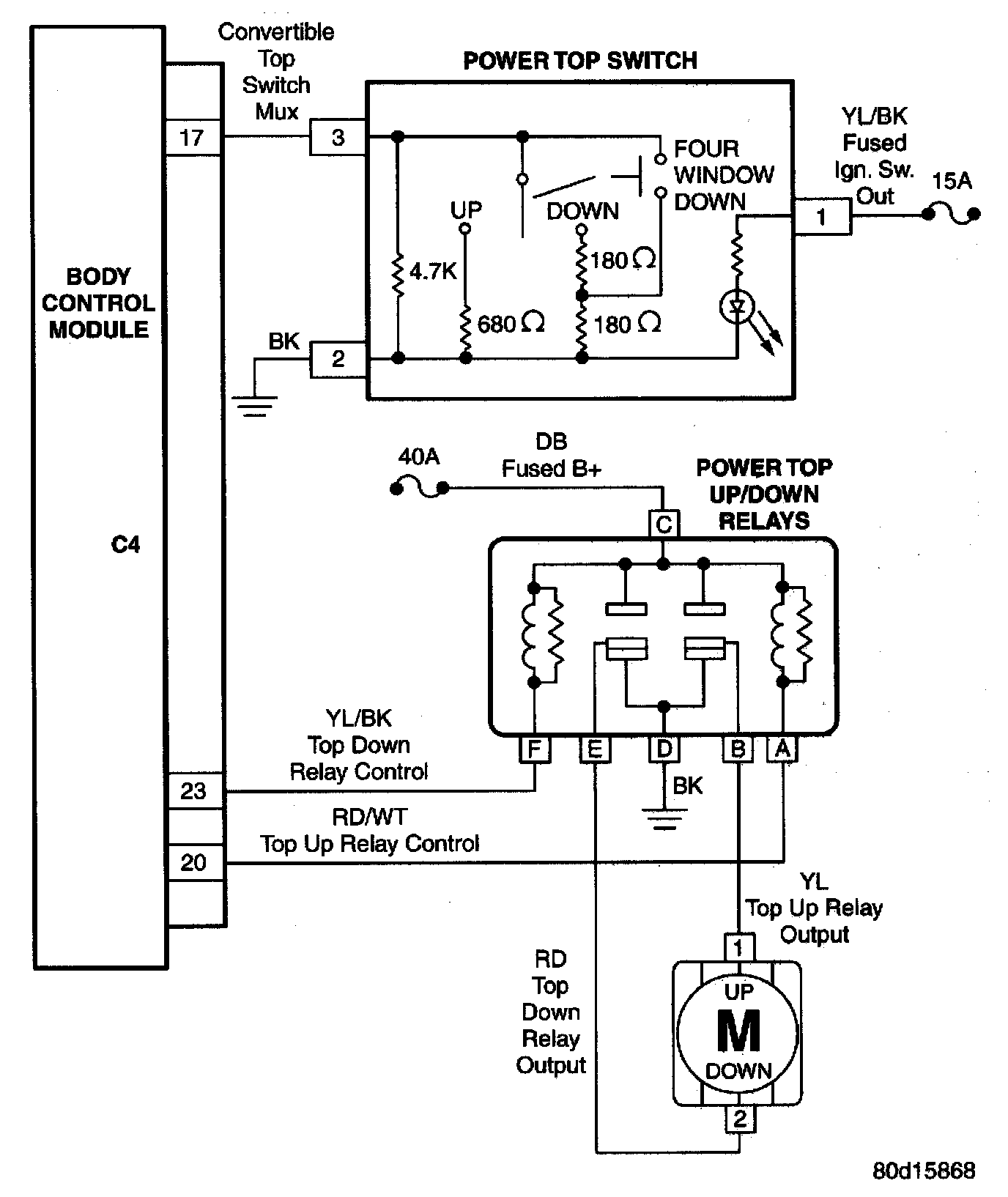

Convertible Top - Power Top:

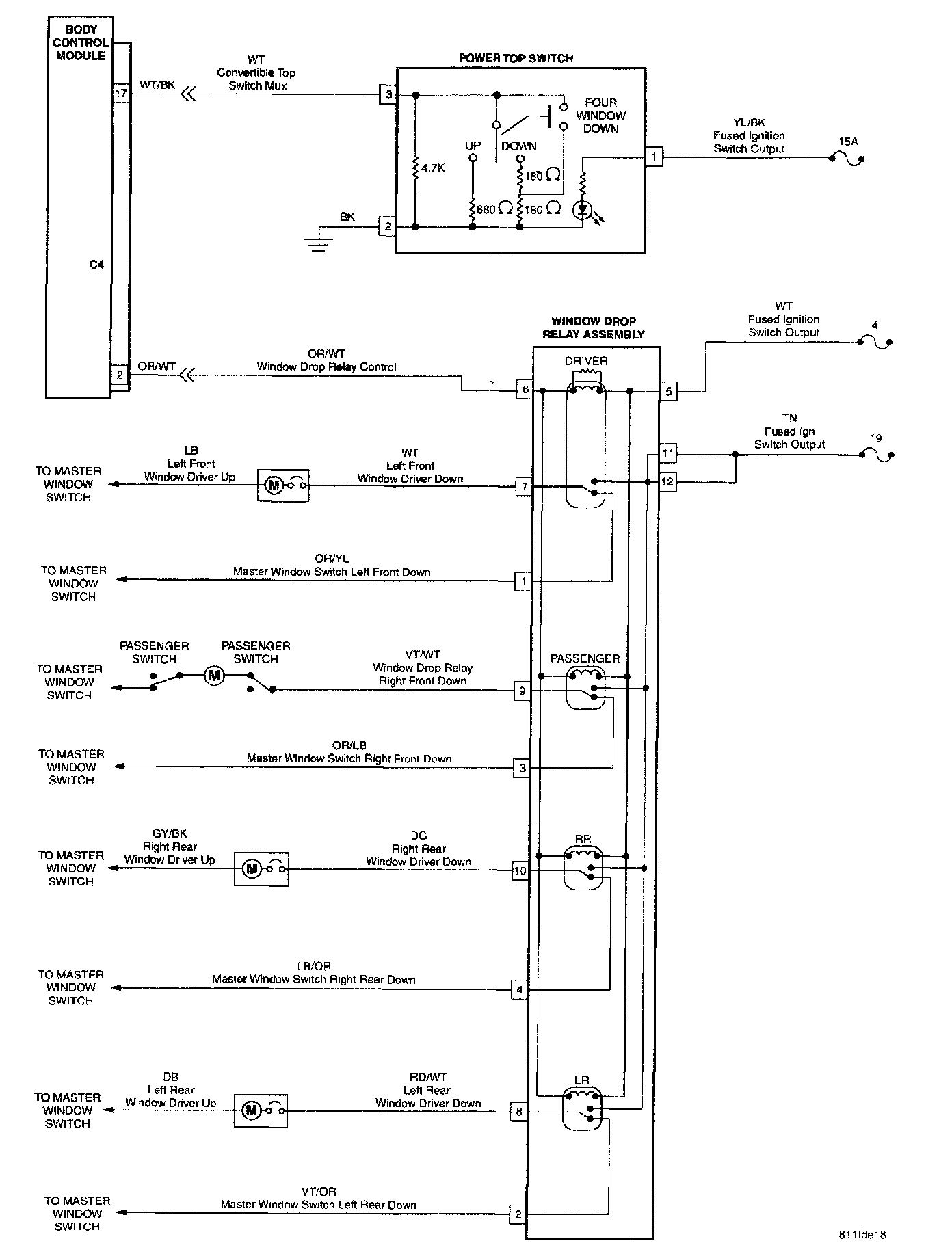

Power Top/4 Window Drop:

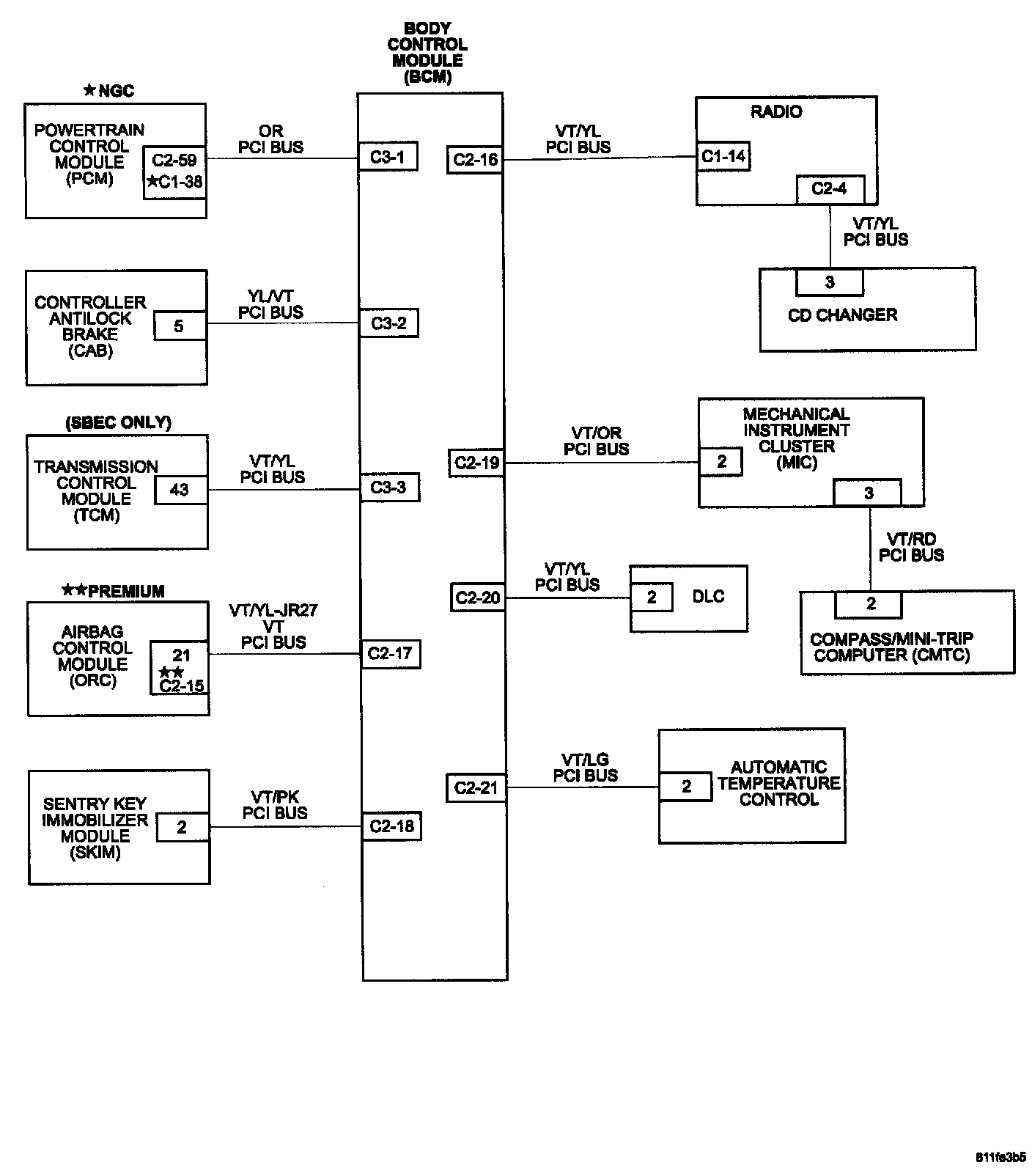

PCI Bus Communication:

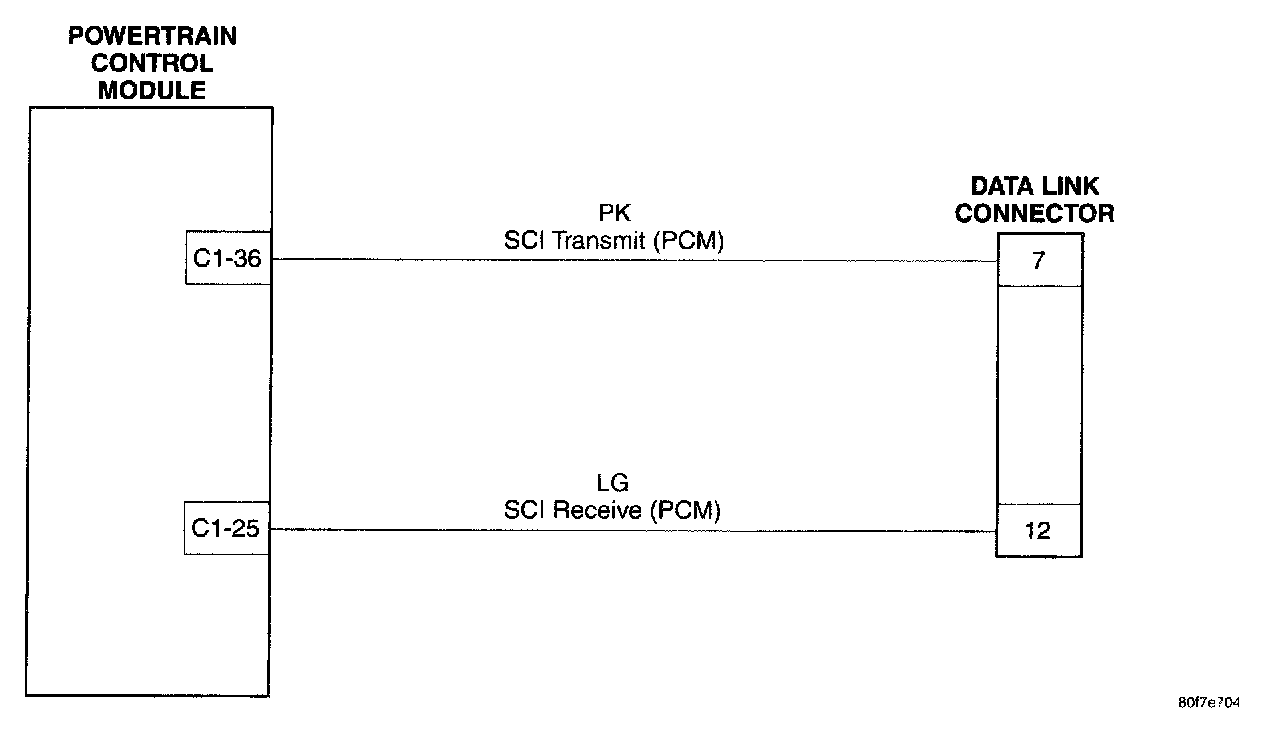

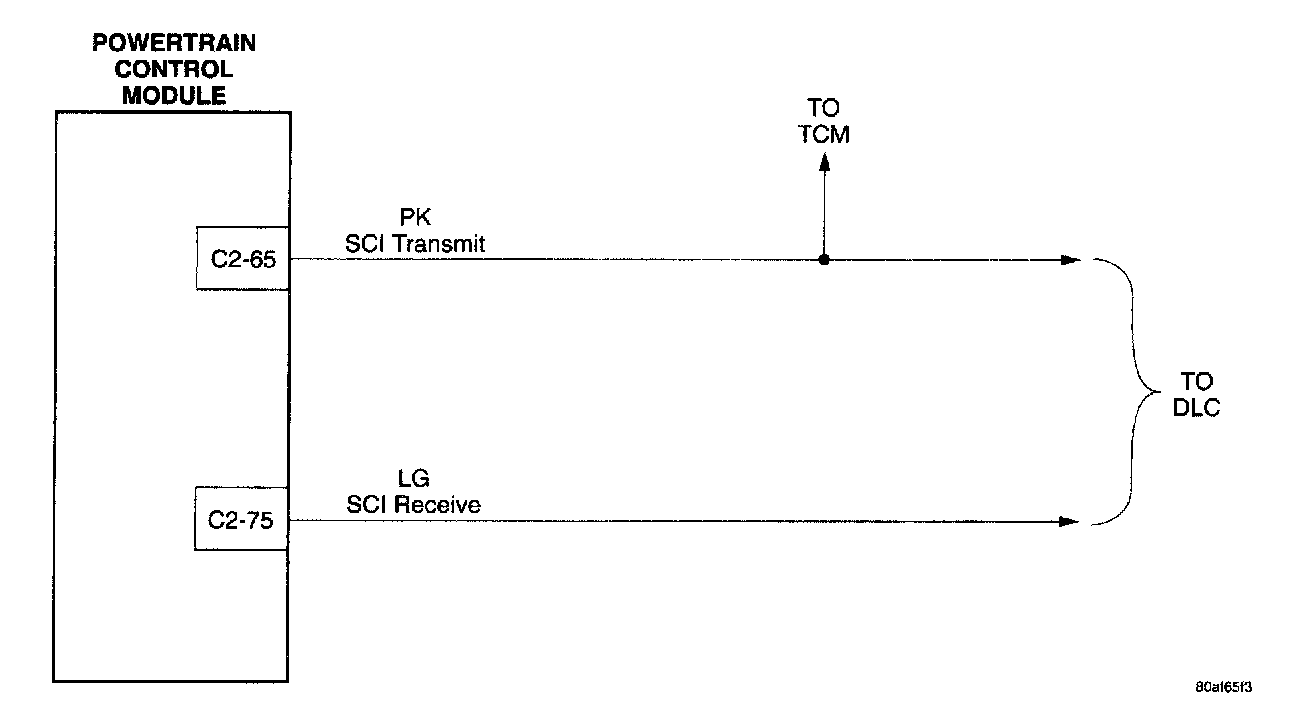

PCM Communication:

PCM Communication - NGC:

Vehicle Theft Security System:

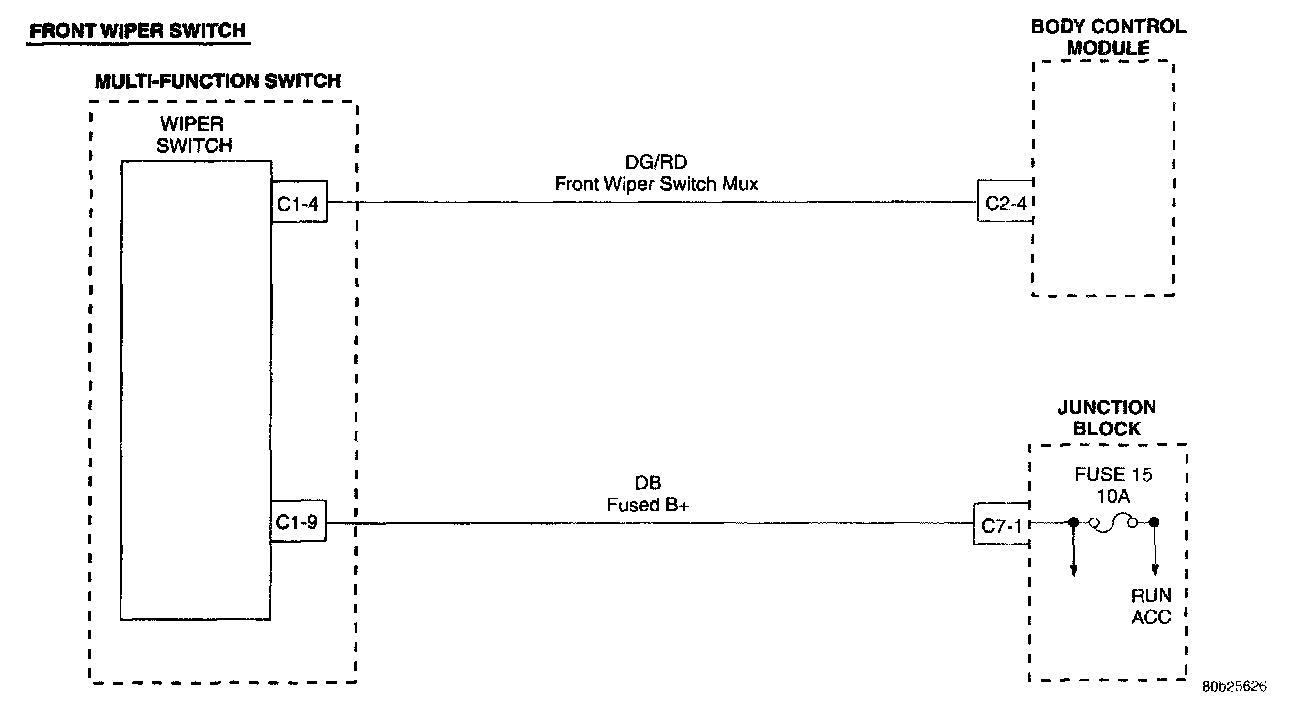

Wiper Switch:

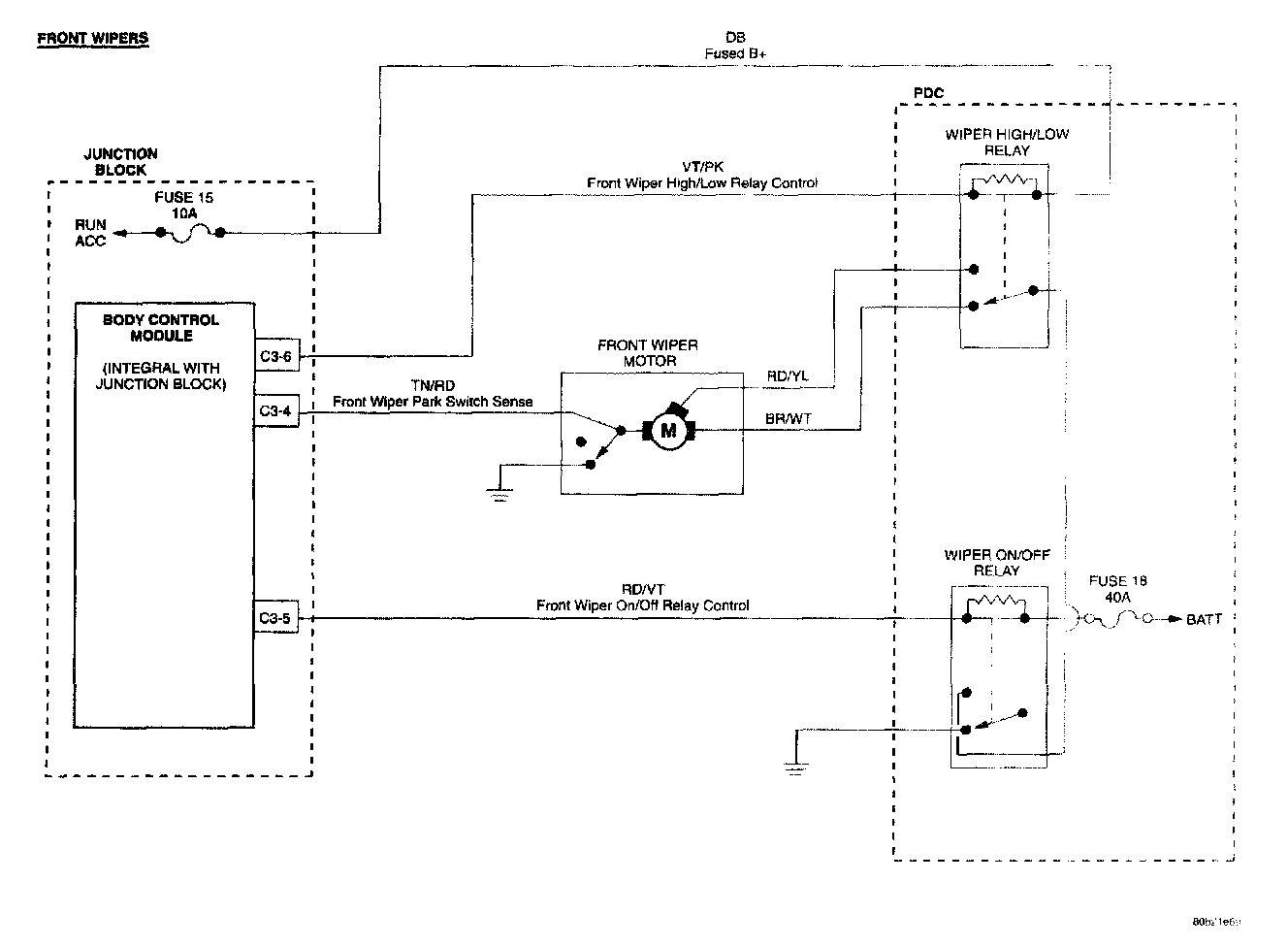

Front Wipers:
