VTSS Indicator Inoperative

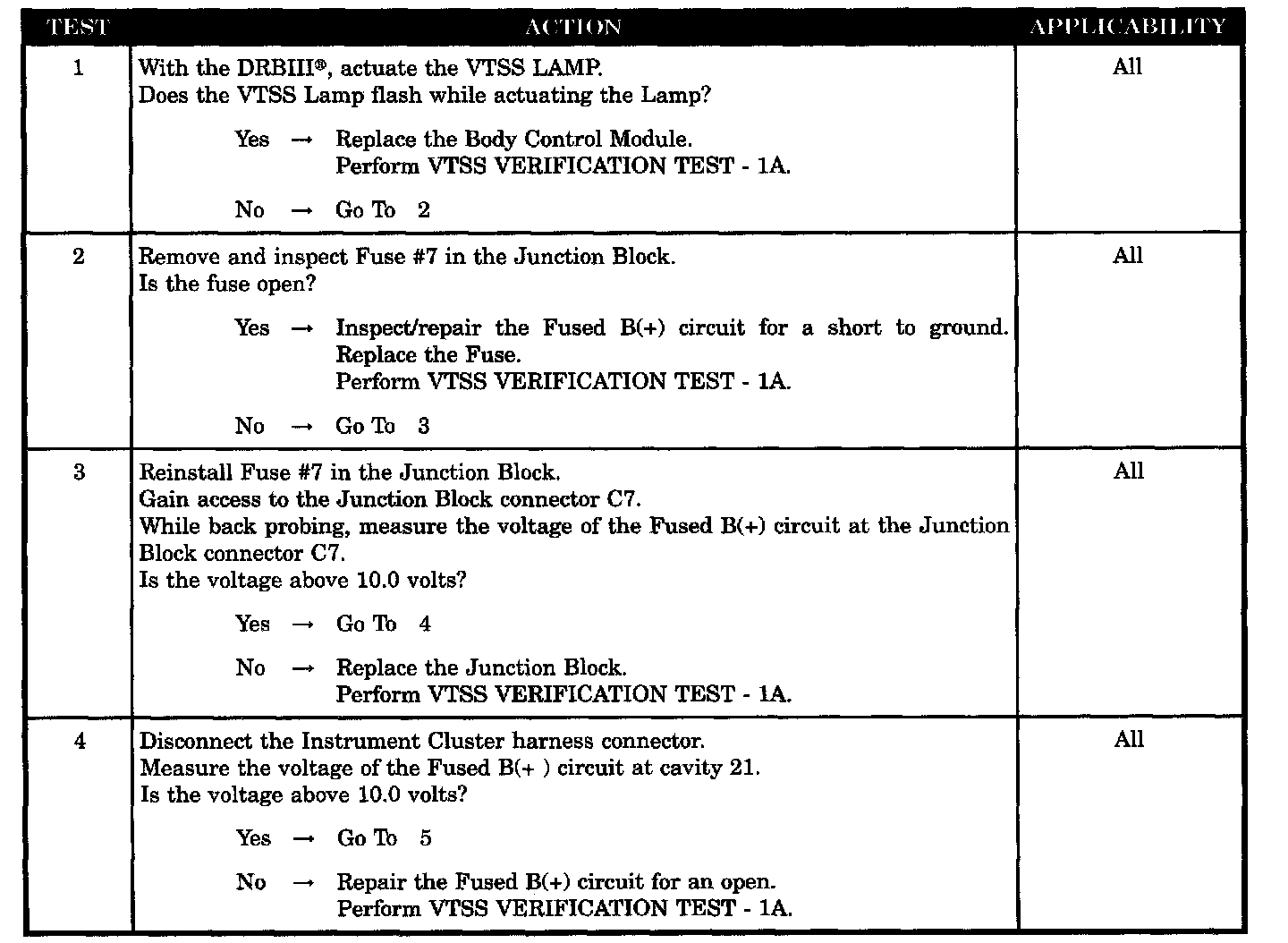

Test 1 - 4:

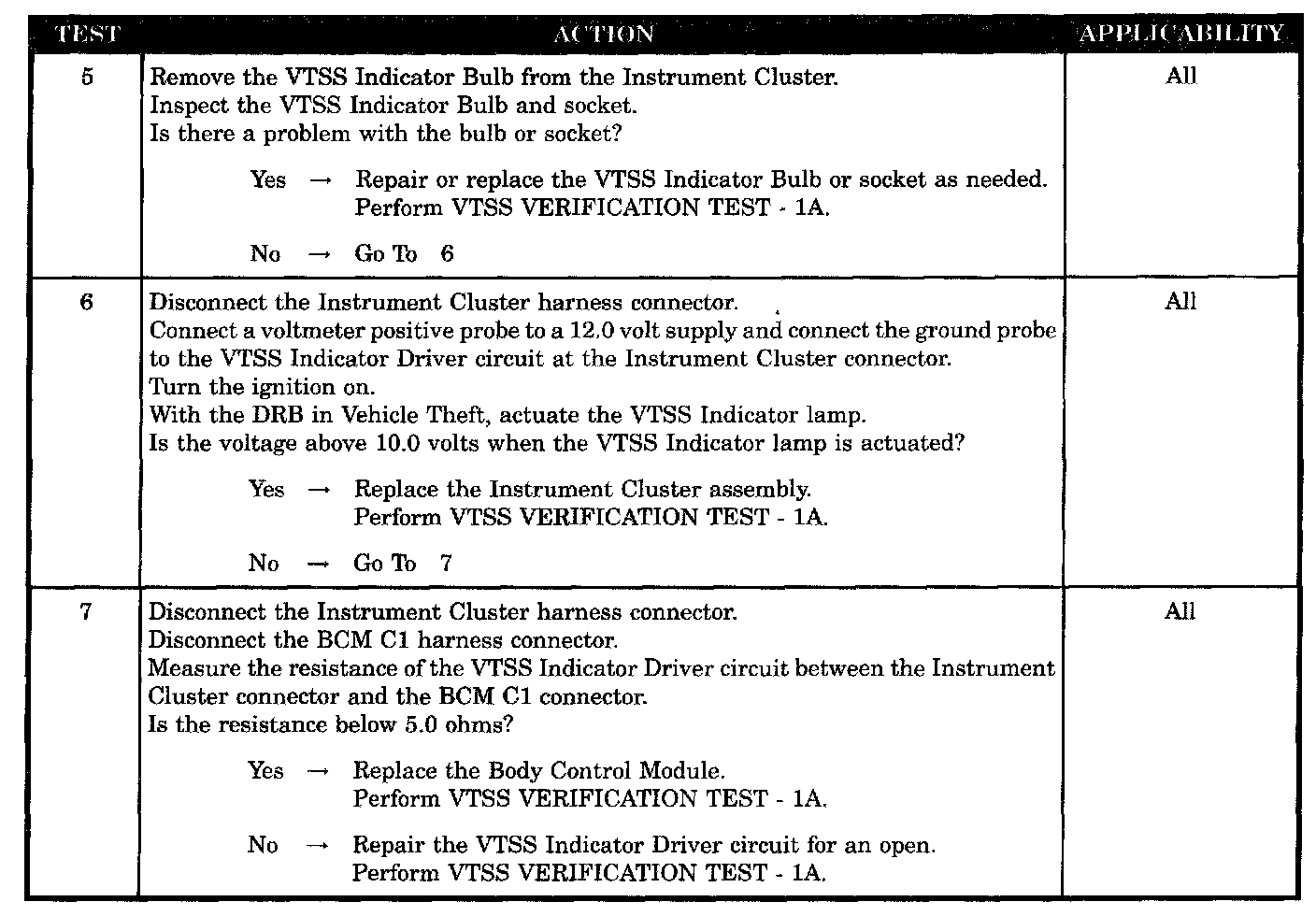

Test 5 - 7:






SYMPTOM
VTSS INDICATOR INOPERATIVE

POSSIBLE CAUSES
- VTSS indicator lamp test
- Open fused B(+) circuit
- Open junction block
- Instrument cluster
- Open VTSS LED
- VTSS Indicator driver circuit open
- Body control module internal malfunction
- Open fuse #7
