Connector Views

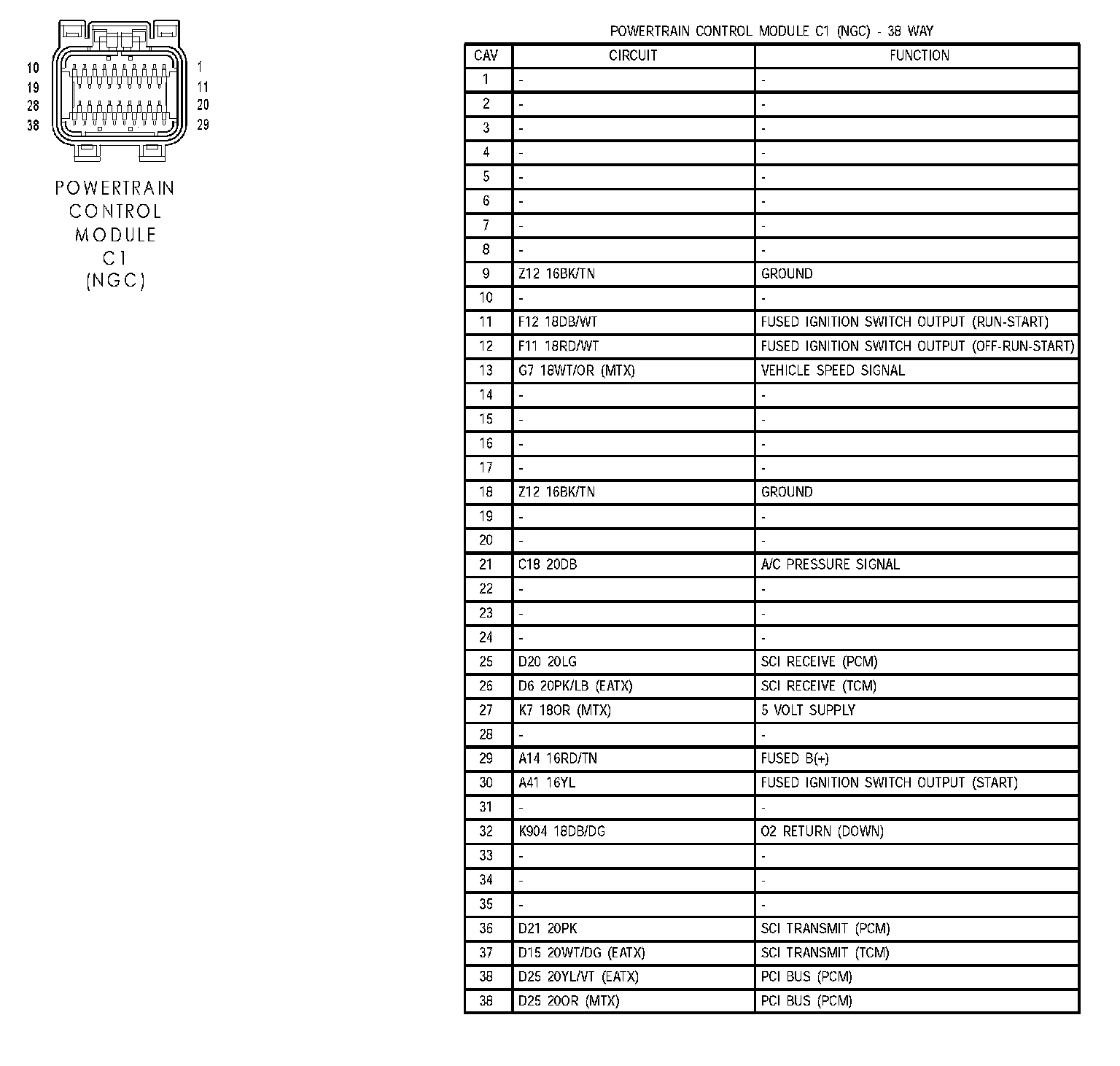

Powertrain Control Module C1(NGC):

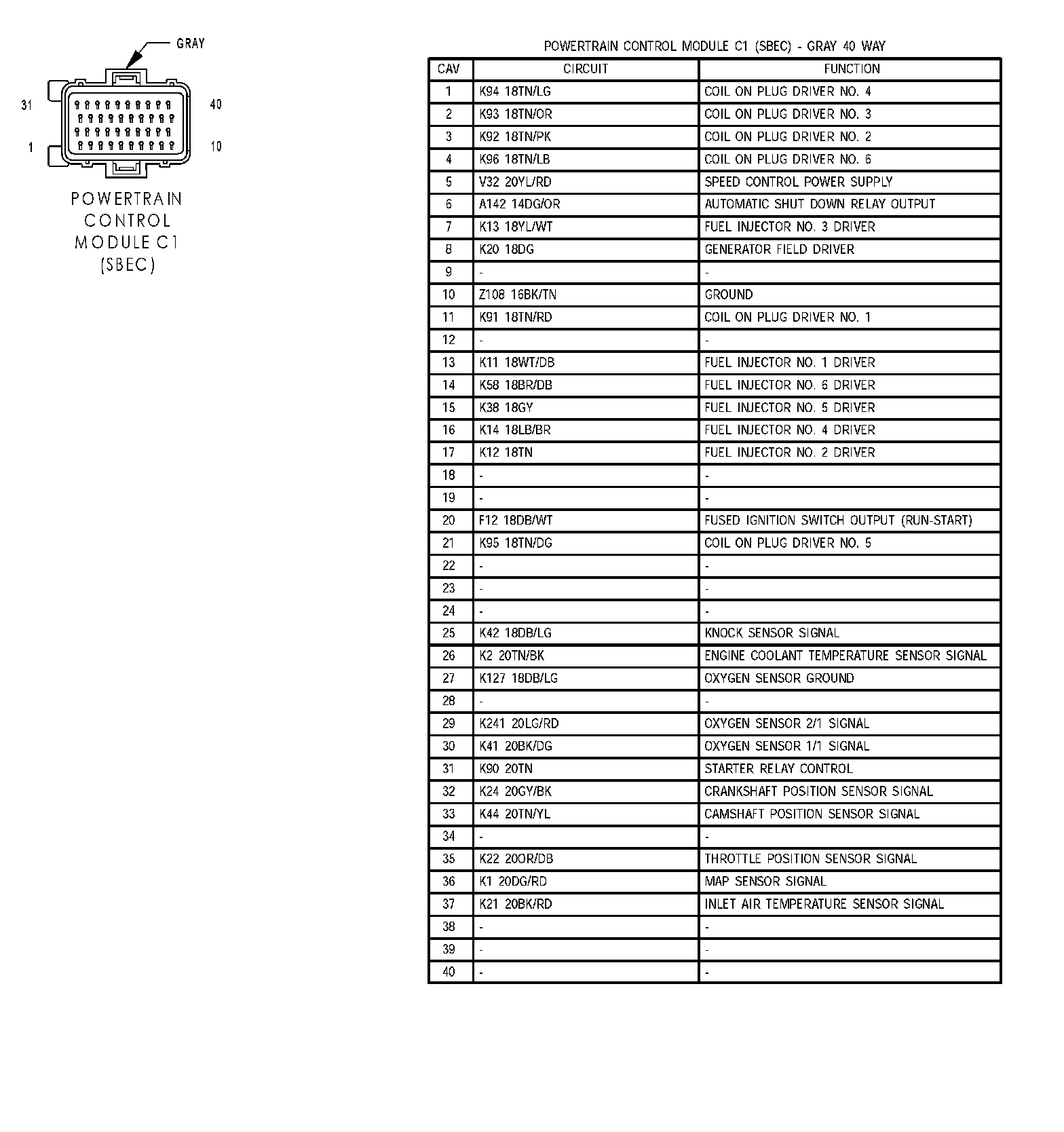

Powertrain Control Module C1(SBEC):

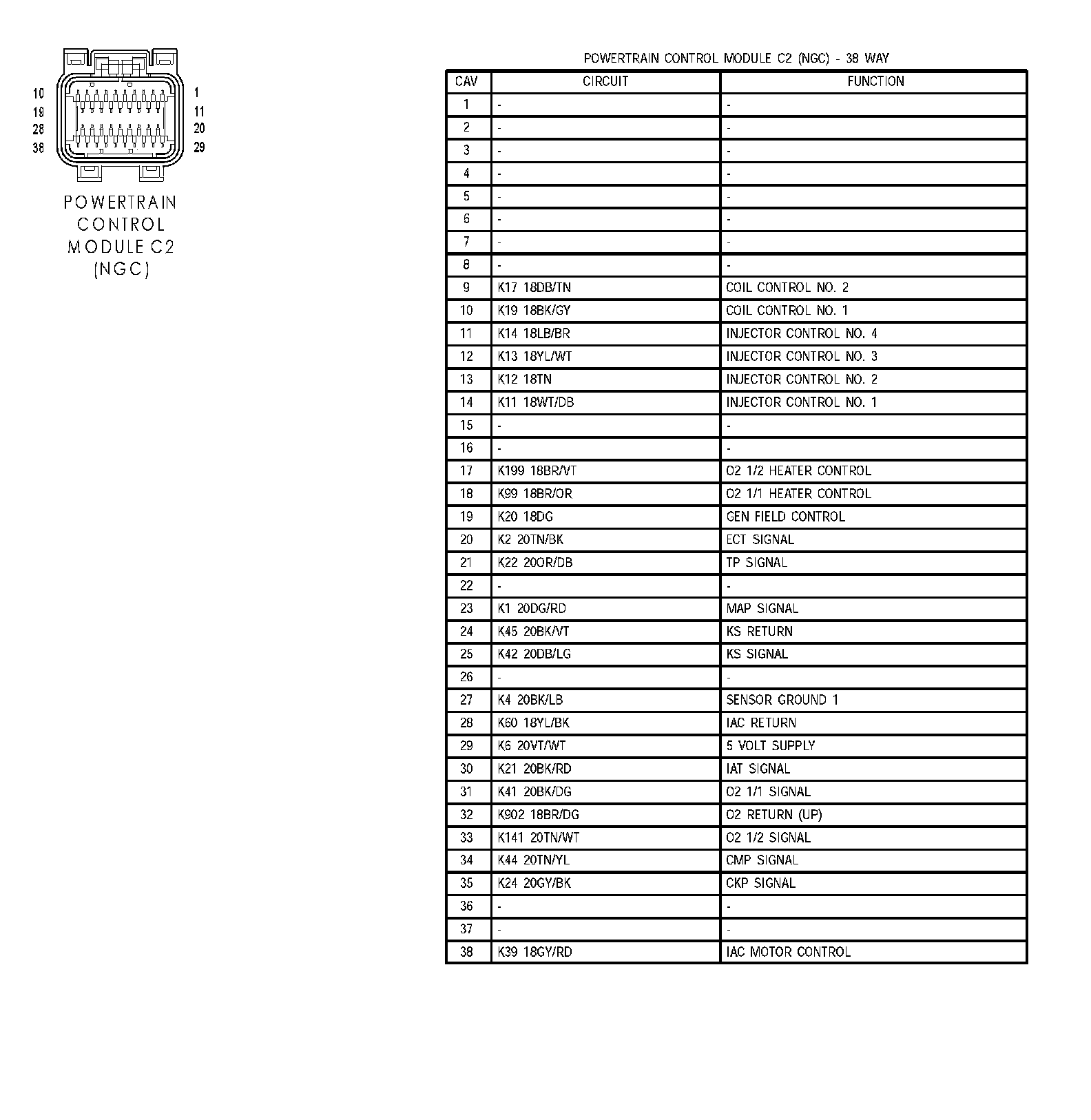

Powertrain Control Module C2(NGO):

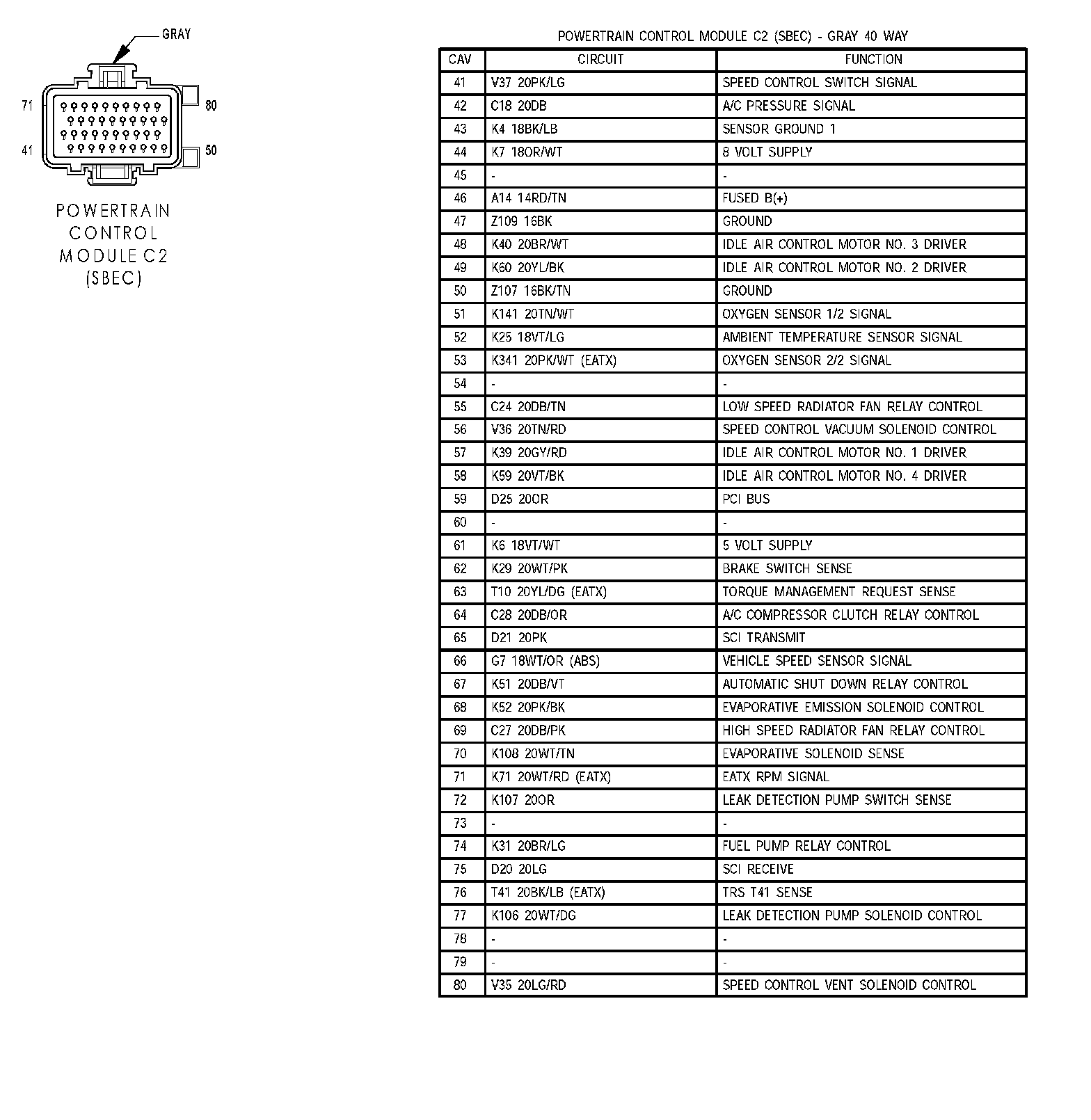

Powertrain Control Module C2(SBEC):

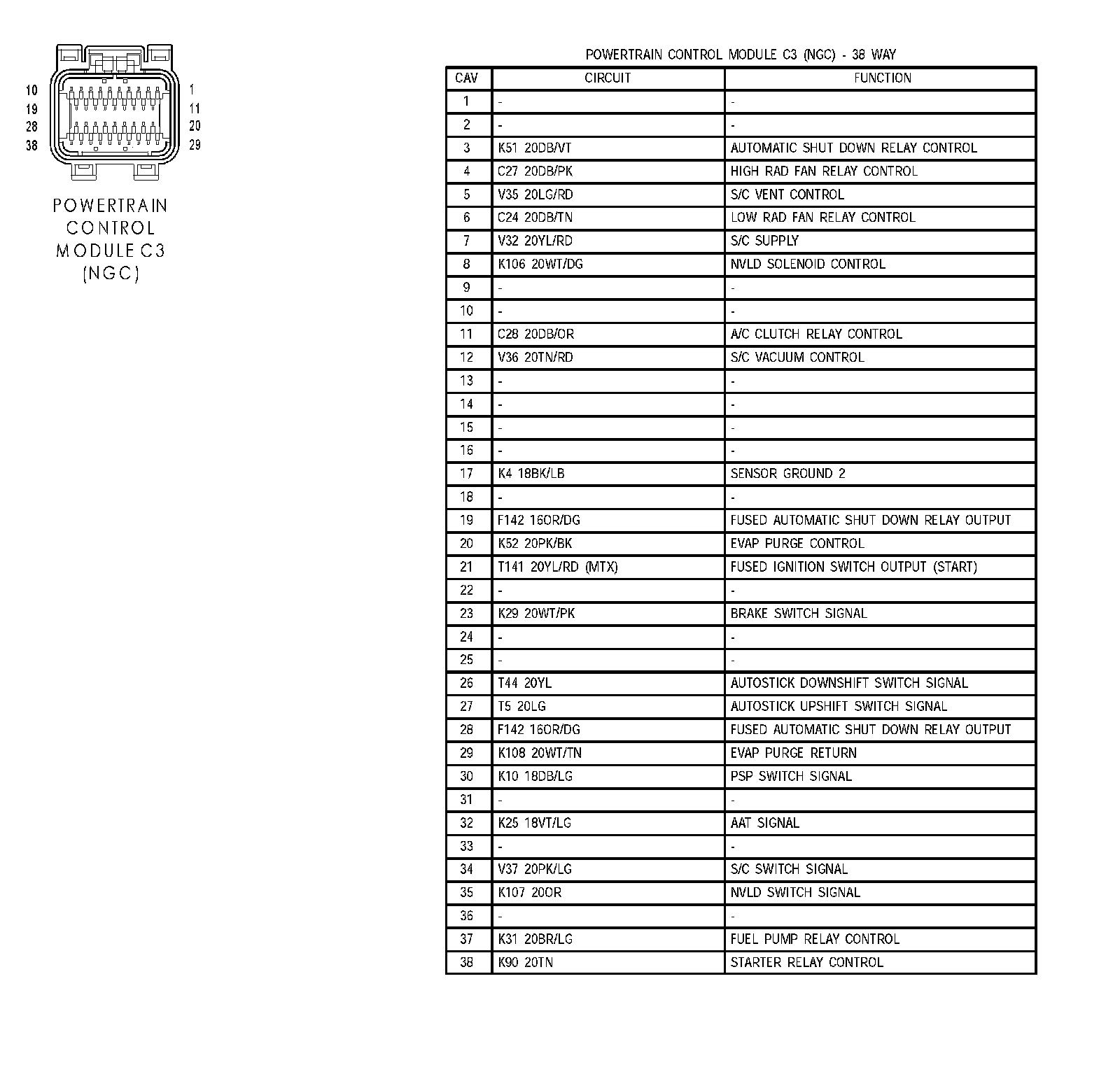

Powertrain Control Module C3(NGC):

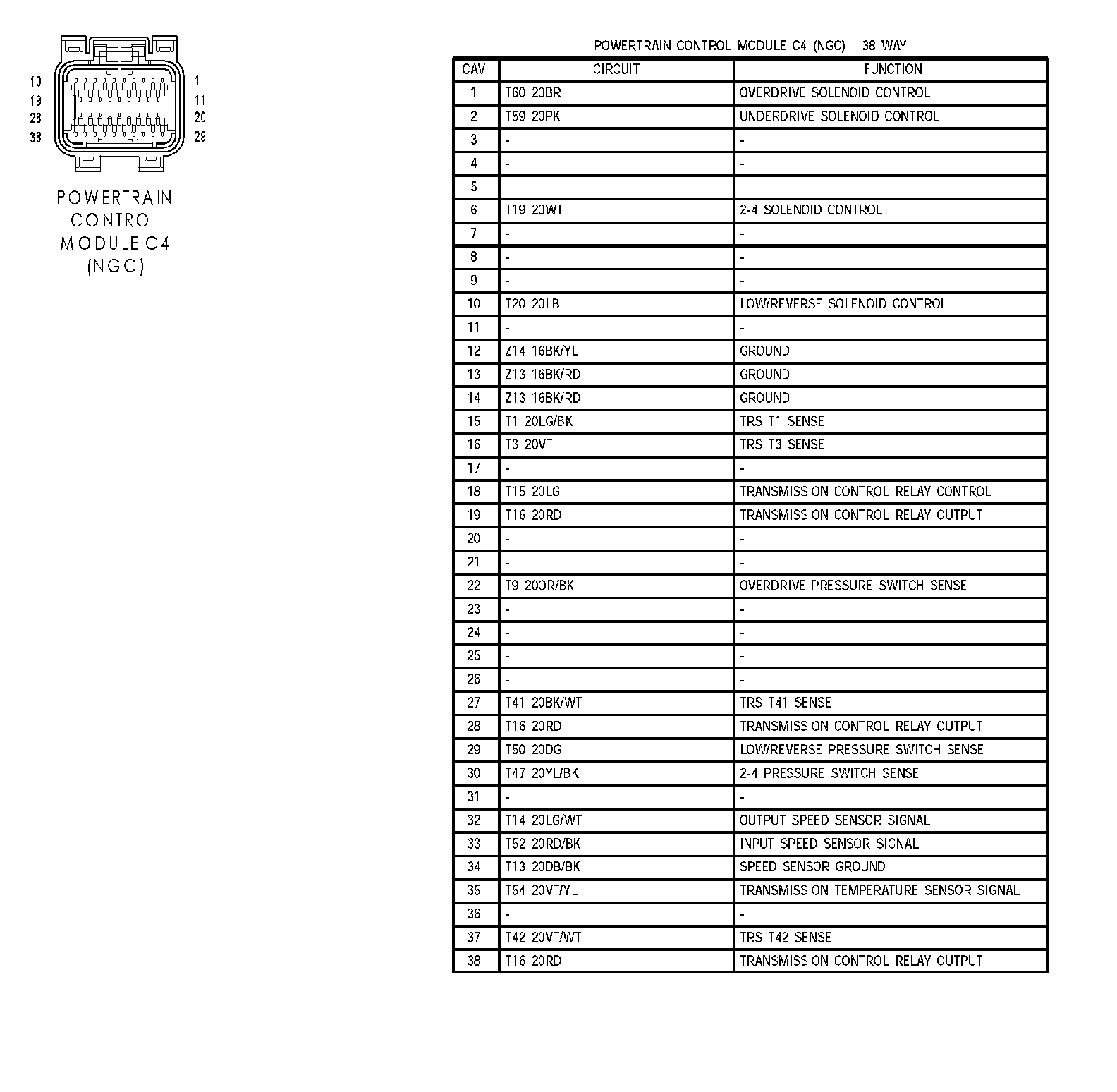

Powertrain Control Module C4(NGC):
