Inspection Procedure 2

Inspection Procedure 2: The Inside Rear View Mirror Can not be Set to Night Mode.

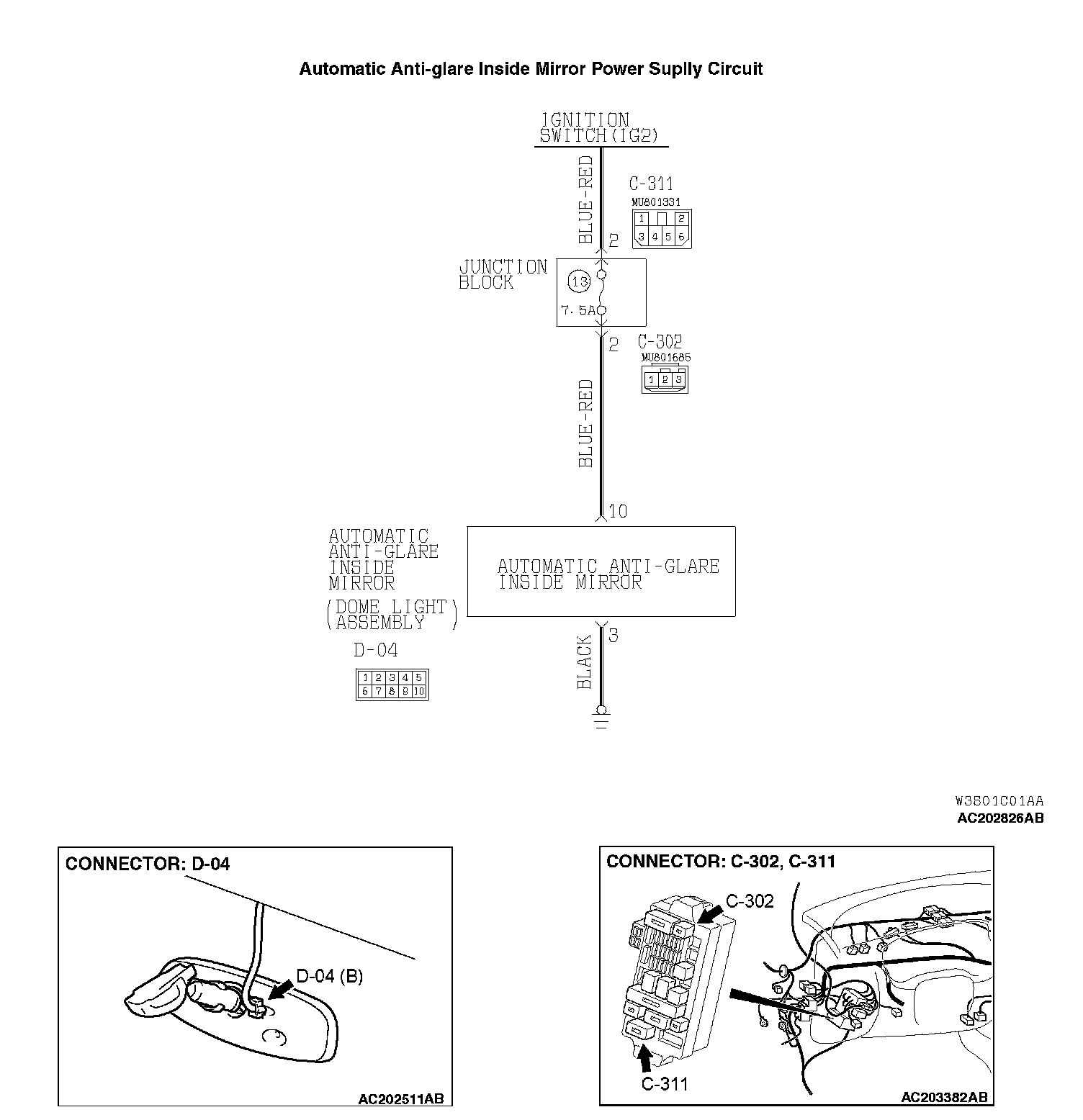

CIRCUIT OPERATION
When the photo sensor of the automatic anti-glare inside mirror detects light, the angle of the mirror changes to night mode.

TECHNICAL DESCRIPTION (COMMENT)
If the angle of the automatic anti-glare inside mirror does not change, the mirror power supply circuit or the mirror itself may be defective.

TROUBLESHOOTING HINTS
- Malfunction of the automatic anti-glare inside mirror
- Damaged harness wires or connectors

DIAGNOSIS

Check that the indicator illuminates.
1. Turn the ignition switch to "ON" position.
2. Make sure the green indicator on.
3. If it's not, press the display switch for more than 6 seconds, less than9 seconds,until the indicator illuminates.

Q: Does the indicator illuminate?

YES: Replace the inside rear view mirror.
NO: Refer to Inspection procedure.
