Transmission Control Module: Description

The Transmission Control Module (TCM) is located between the Power Distribution Center (PDC) and the left headlamp assembly, in the left side of the engine compartment (Fig 1).

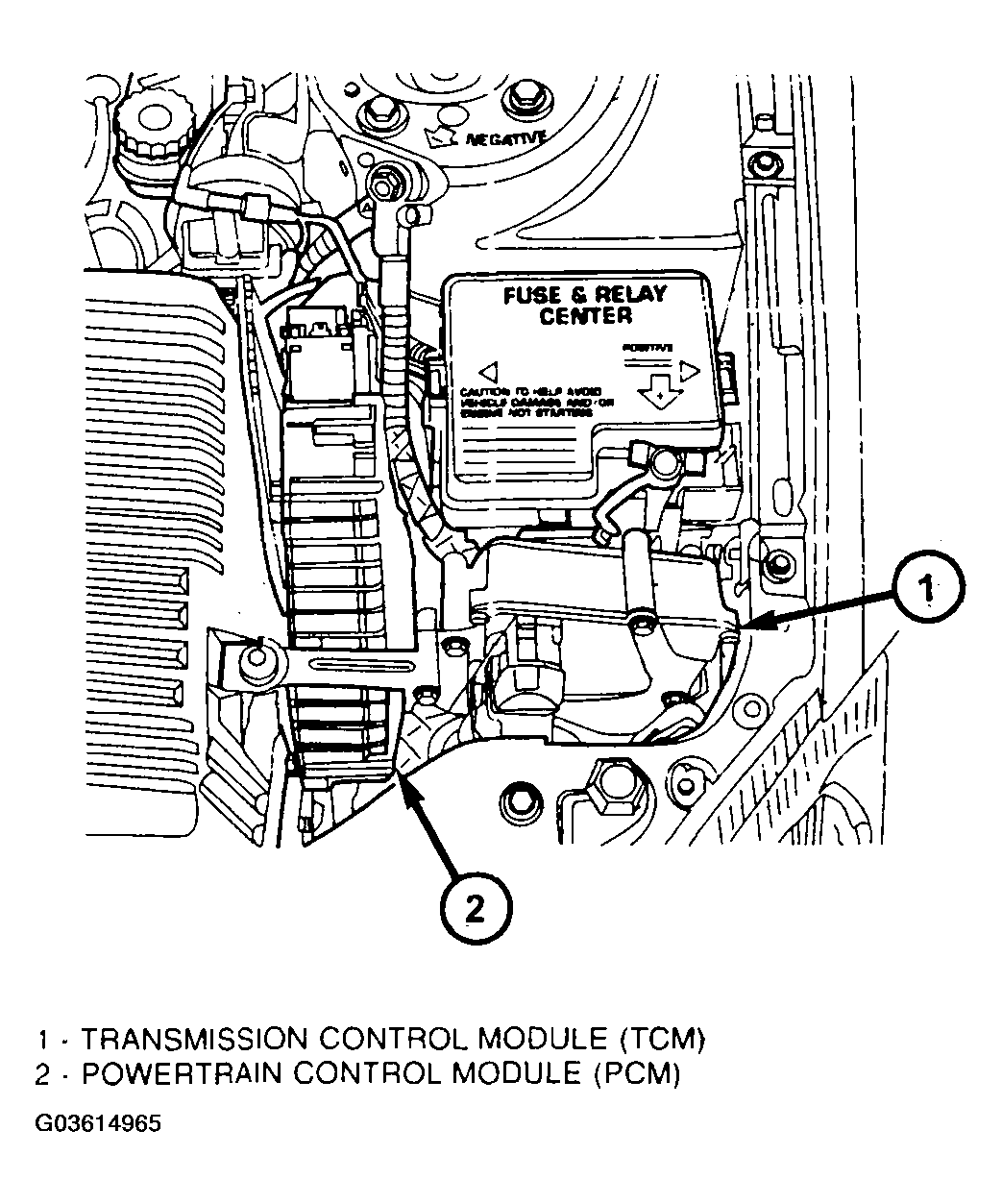

Fig 1: Identifying Transmission Control Module Location- 2.4L Models

Courtesy of DAIMLERCHRYSLER CORP.
