Clock Analog Module Connector End View

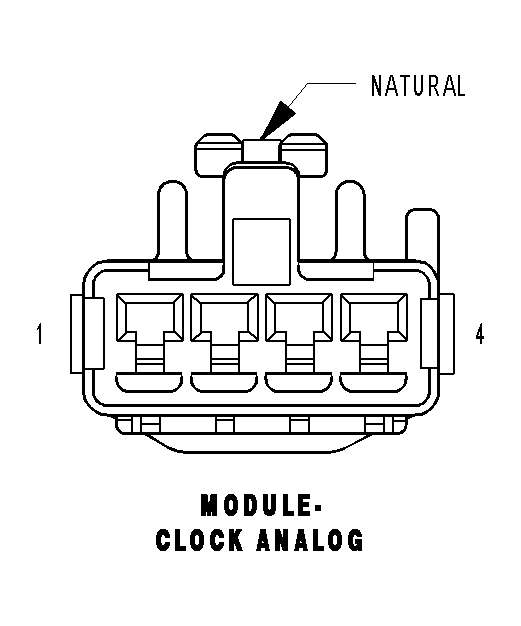

MODULE-CLOCK ANALOG - NATURAL 4 WAY

GCLX580226Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 A117 20RD/DG FUSED B(+) (I.O.D.)
2 Z909 20BK/LG GROUND
3 E12 20OR/GY PANEL LAMPS DRIVER
4 - -
