Anti-Lock Brake System (Service Information): Sensor-Dynamics: Installation

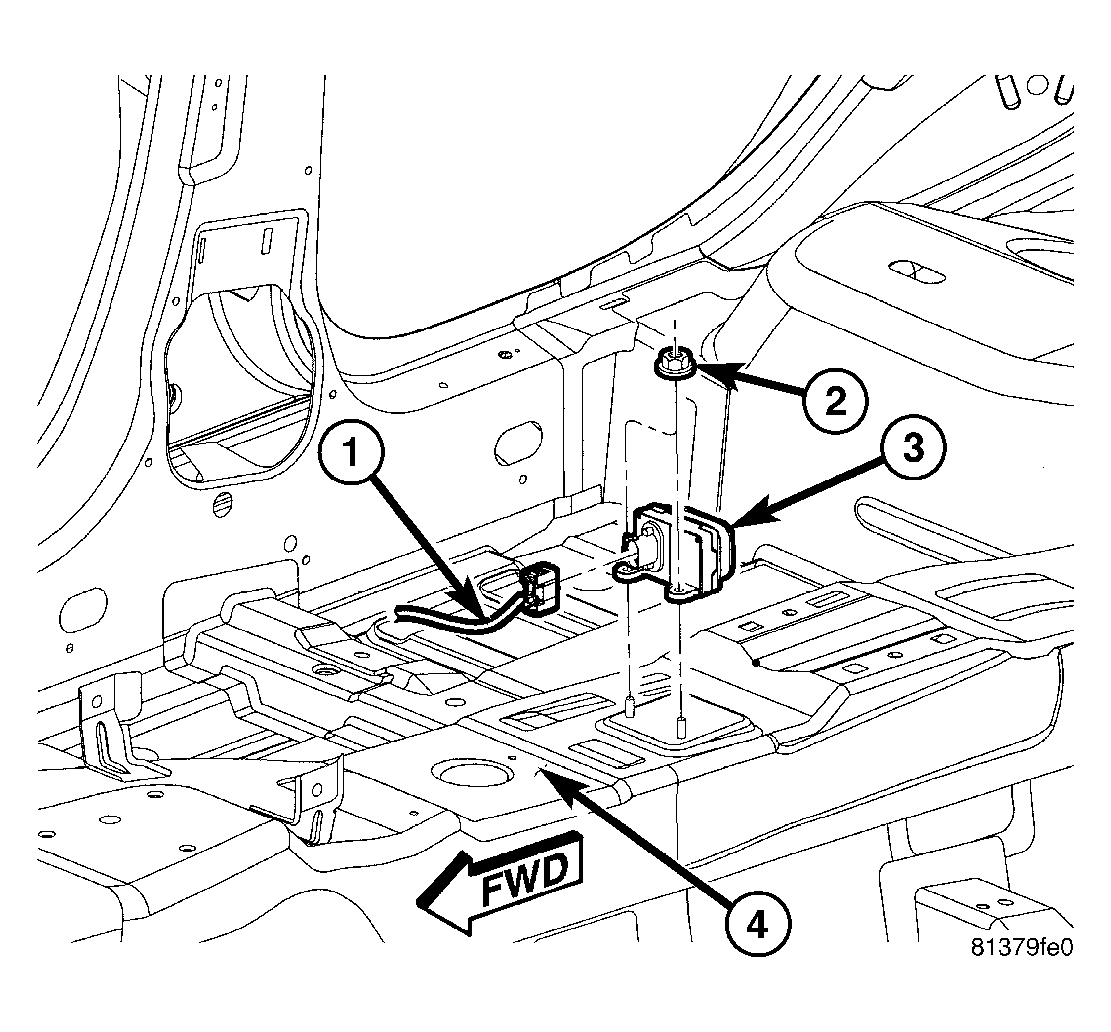

Fig 1: DYNAMICS SENSOR MOUNTING

Courtesy of DAIMLERCHRYSLER CORP.

1. Install dynamics sensor (3) over studs mounted to floor pan tunnel (4).
2. Install mounting nuts (2). Tighten nuts to 12 N.m (110 in. lbs.) torque.
3. Connect wiring harness (1) connector to module (3).
4. Install floor console. (Refer to BODY/INTERIOR/FLOOR CONSOLE - INSTALLATION)
   Fig 2: LX BATTERY AND CABLES

   Courtesy of DAIMLERCHRYSLER CORP.
5. Connect battery negative cable (2) to battery post. It is important that this is performed properly. (Refer to ELECTRICAL/BATTERY SYSTEM - STANDARD PROCEDURE)
6. Perform Verification Test and clear any faults. (Refer to BRAKES - DIAGNOSIS AND TESTING)
