Sensor-Rear Wheel Speed: Installation

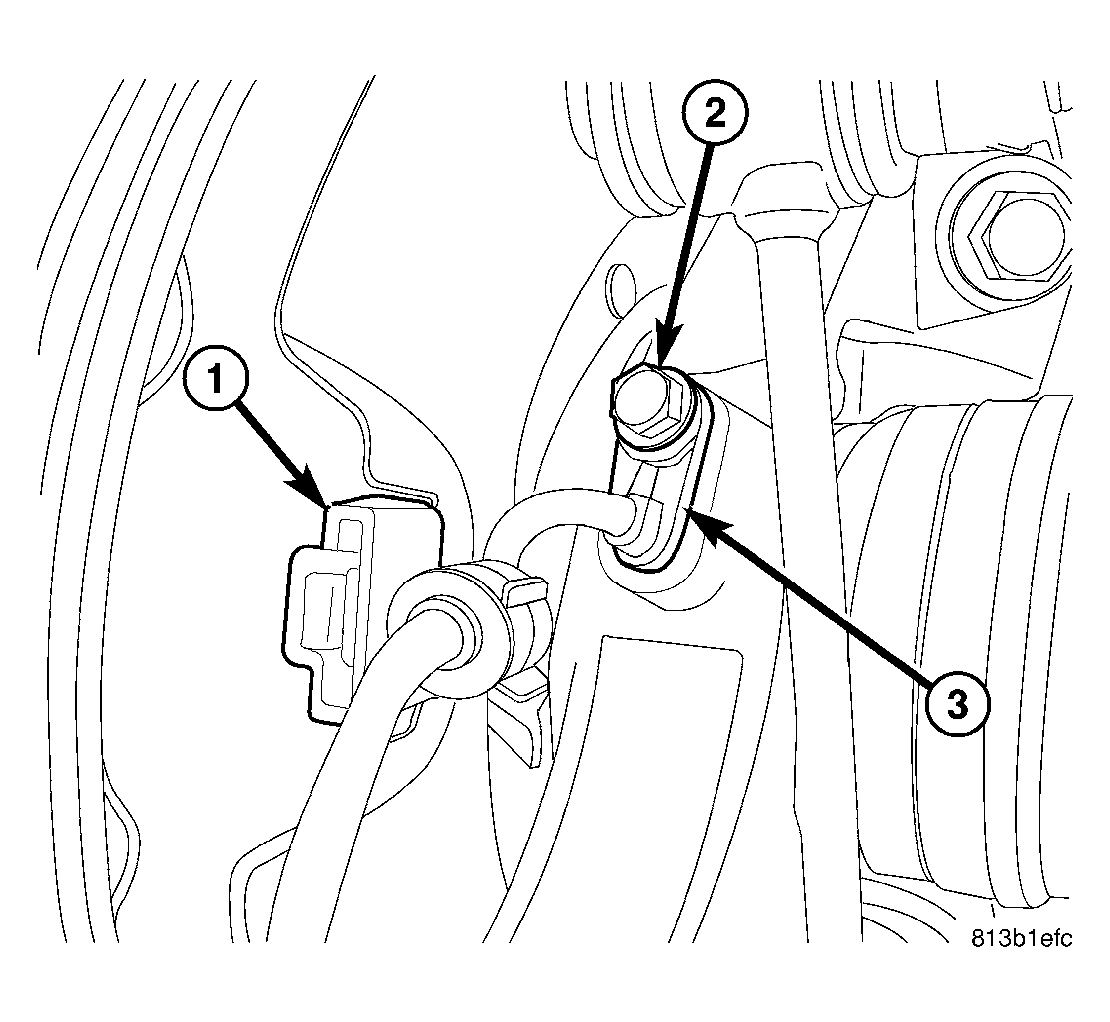

Fig 1: WHEEL SPEED SENSOR AT REAR KNUCKLE

Courtesy of DAIMLERCHRYSLER CORP.

Insert wheel speed sensor head (3) into mounting hole in rear of knuckle.
Install screw (2) fastening sensor head (3) to rear knuckle. Tighten Screw to 11 N.m (100 in. lbs.) torque.
Install sensor cable at rear brake rotor shield (1).

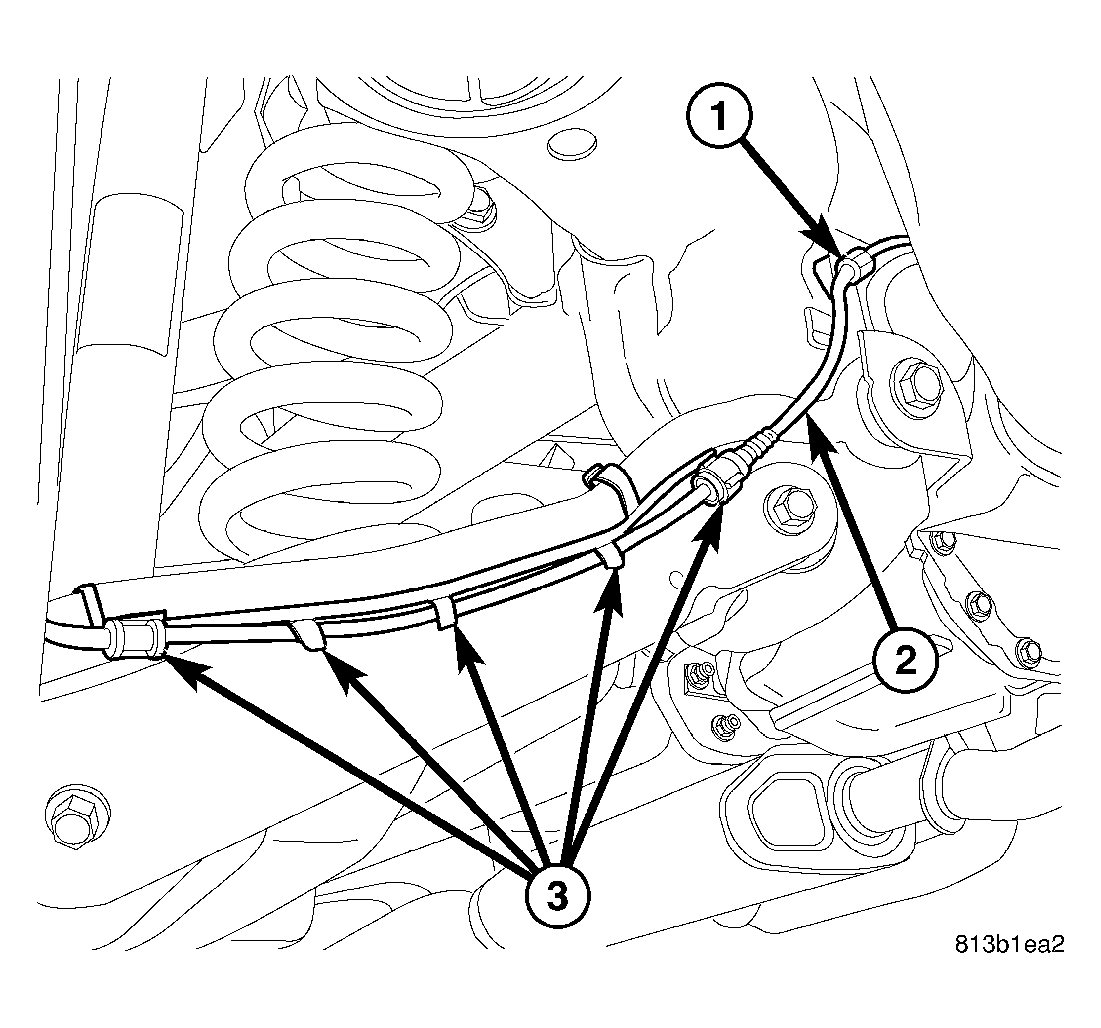

Fig 2: WSS ROUTING ALONG LEFT TOE LINK
Courtesy of DAIMLERCHRYSLER CORP.
Clip sensor cable (2) to routing clips (3) along toe link.
If installing left sensor, clip sensor cable (2) to routing clip (1) above toe link mount on rear crossmember.

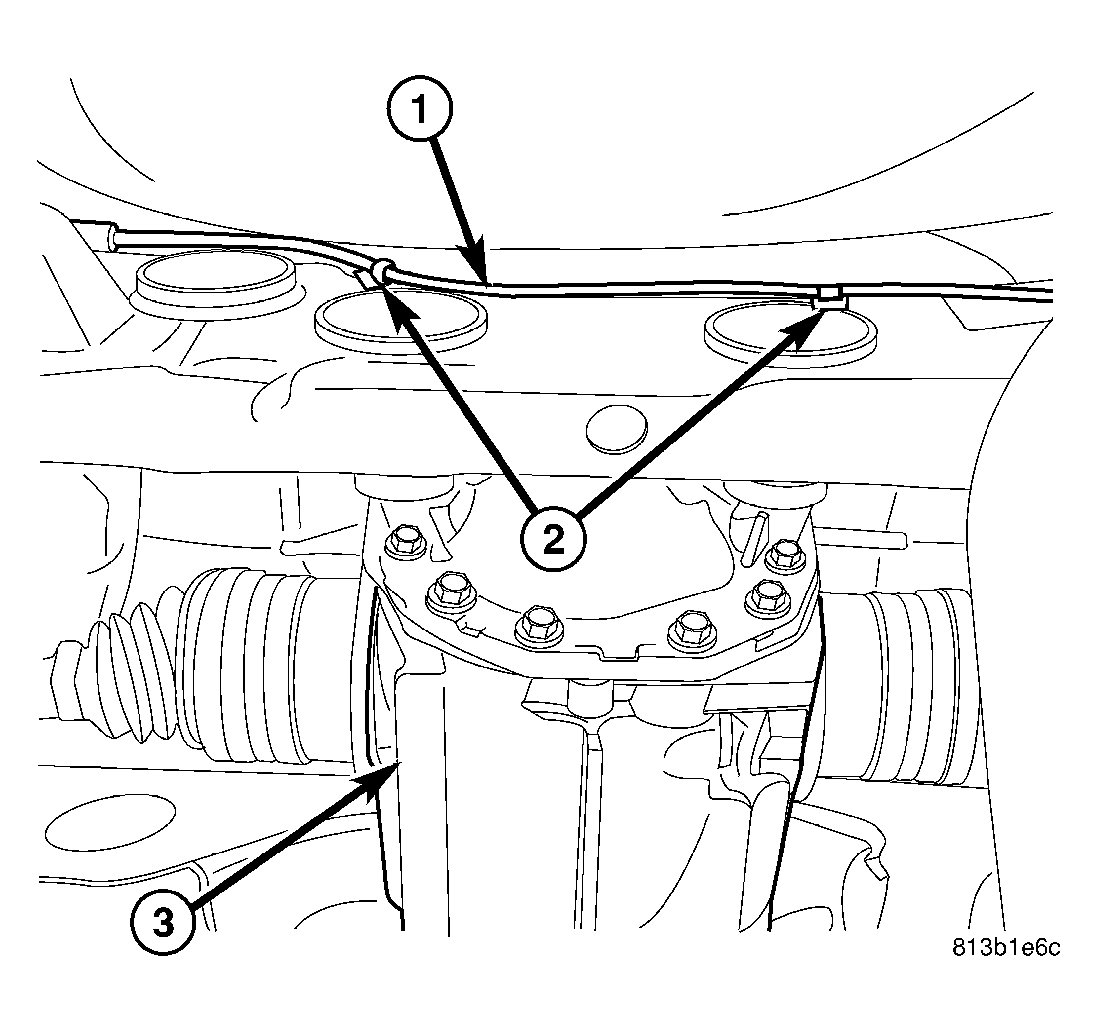

Fig 3: LEFT WSS ROUTING OVER REAR DIFFERENTIAL
Courtesy of DAIMLERCHRYSLER CORP.
If installing left sensor, clip sensor cable (1) to routing clips (2) along rear of crossmember near rear differential (3).

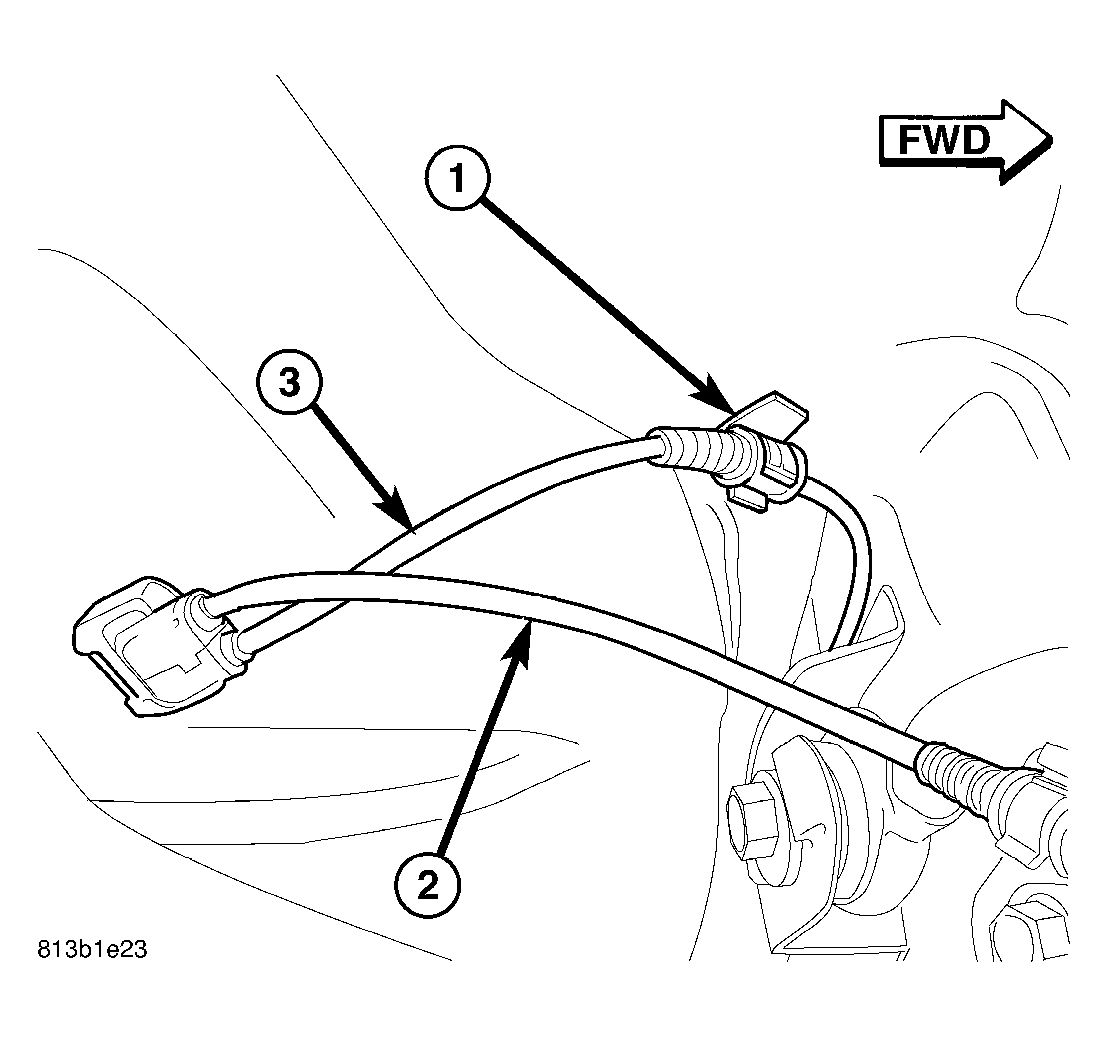

Fig 4: LEFT/RIGHT REAR WHEEL SPEED SENSOR ROUTING
Courtesy of DAIMLERCHRYSLER CORP.
If installing left sensor, clip sensor cable (3) to routing clip near body connector (1).

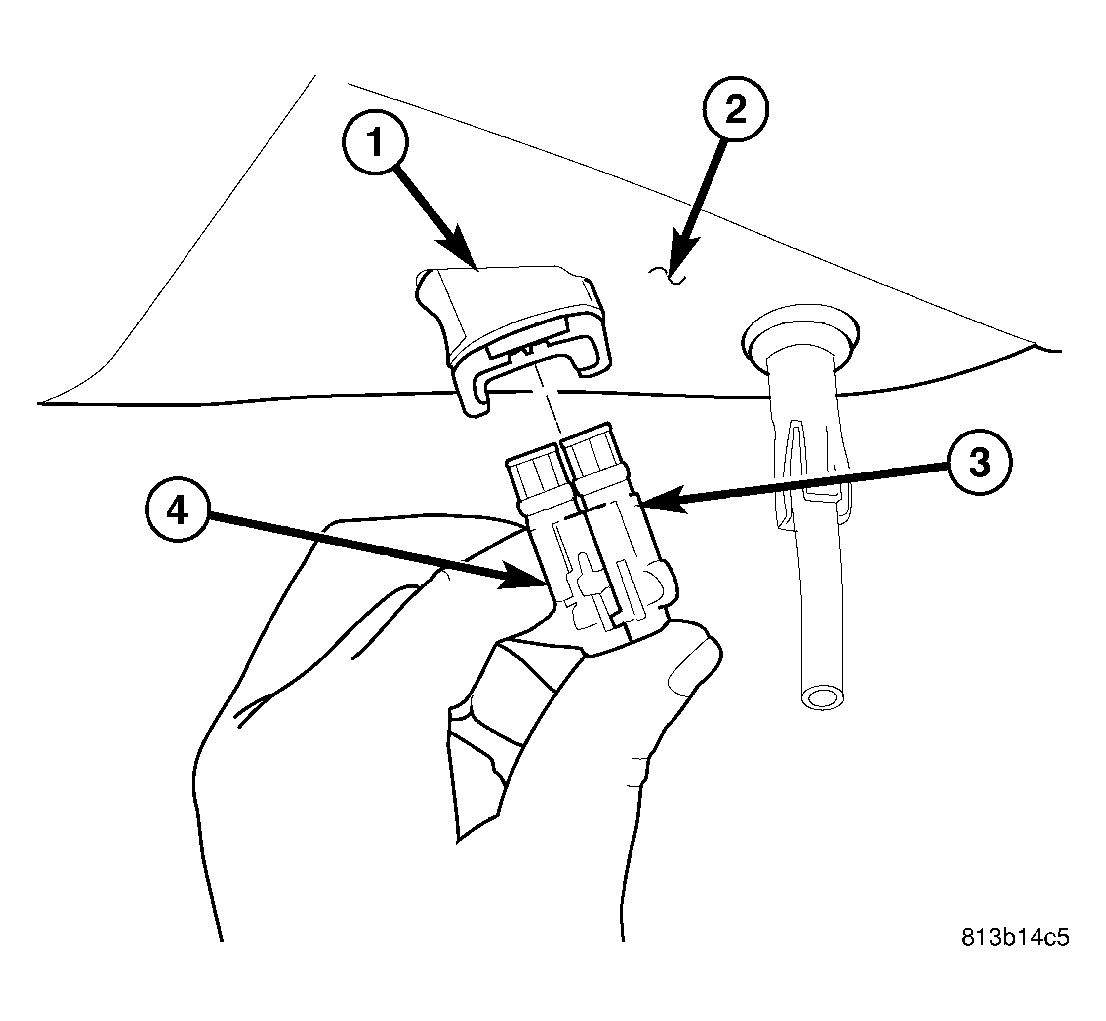

Fig 5: SENSOR CONNECTION TO BODY CONNECTOR
Courtesy of DAIMLERCHRYSLER CORP.
Match left sensor connector (4) to right sensor connector (3) to make one connector.
Insert sensor connectors (3 and 4) into body wiring harness connector (1) located in luggage compartment floor pan (2). When installing connector, make sure retaining clip on body connector is properly in place and sensor connector cannot be pulled out.
