Heat Shields: Installation

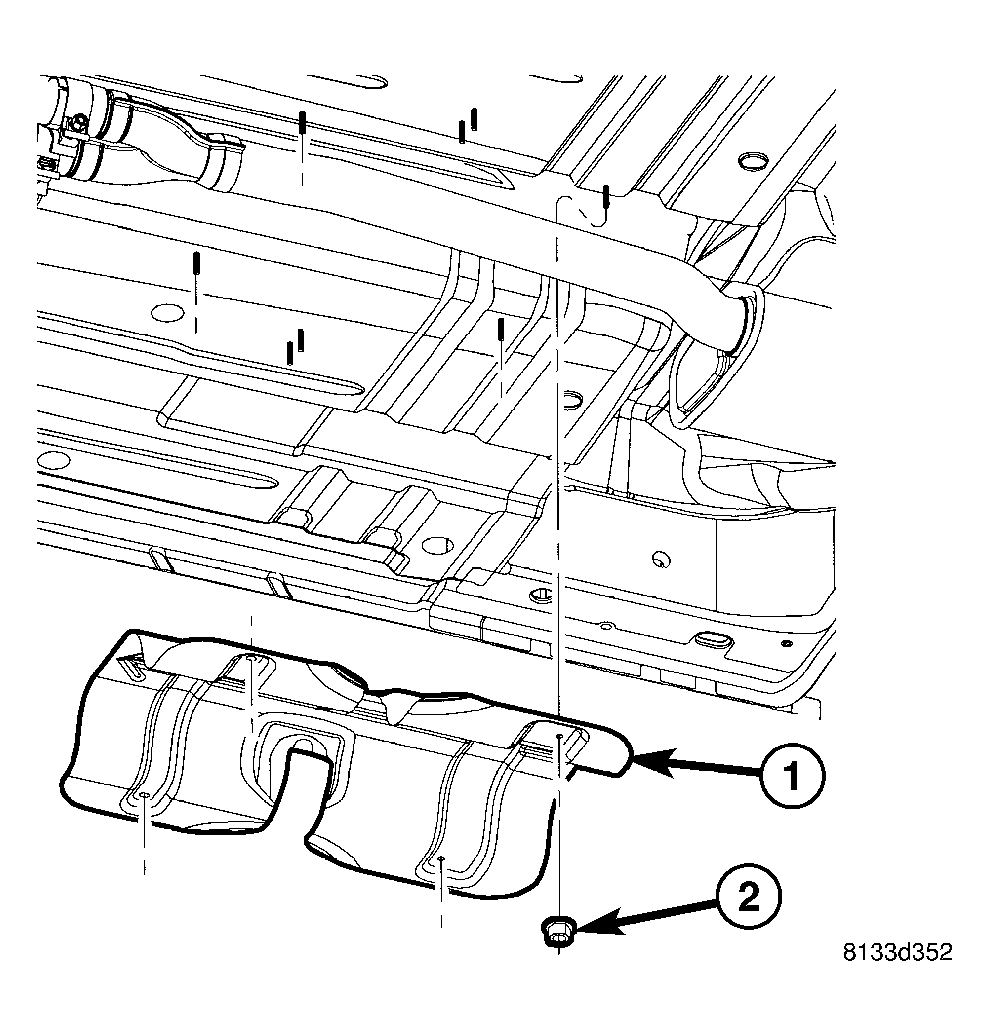

Fig 1: Heat Shields
GC0012942Courtesy of DAIMLERCHRYSLER CORP.
1 - HEAT SHIELD
2 - NUT
  1. Position heat shields (1).
  2. Install nuts (2). Tighten nuts to 10 N.m (98 in. lbs.).
