5.9L Diesel - Auto. Trans.

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect both negative battery cables at both batteries.
  2. Remove cable/lever/linkage cover. Refer to Speed Control Servo REMOVAL /INSTALLATION .
  3. Remove (disconnect) servo cable from servo. Refer to Speed Control Servo REMOVAL /INSTALLATION .
  4. Using finger pressure only, disconnect end of servo cable from throttle lever pin by pulling forward on connector while holding lever rearward (Fig 2). DO NOT try to pull connector off perpendicular to lever pin. Connector will be broken.

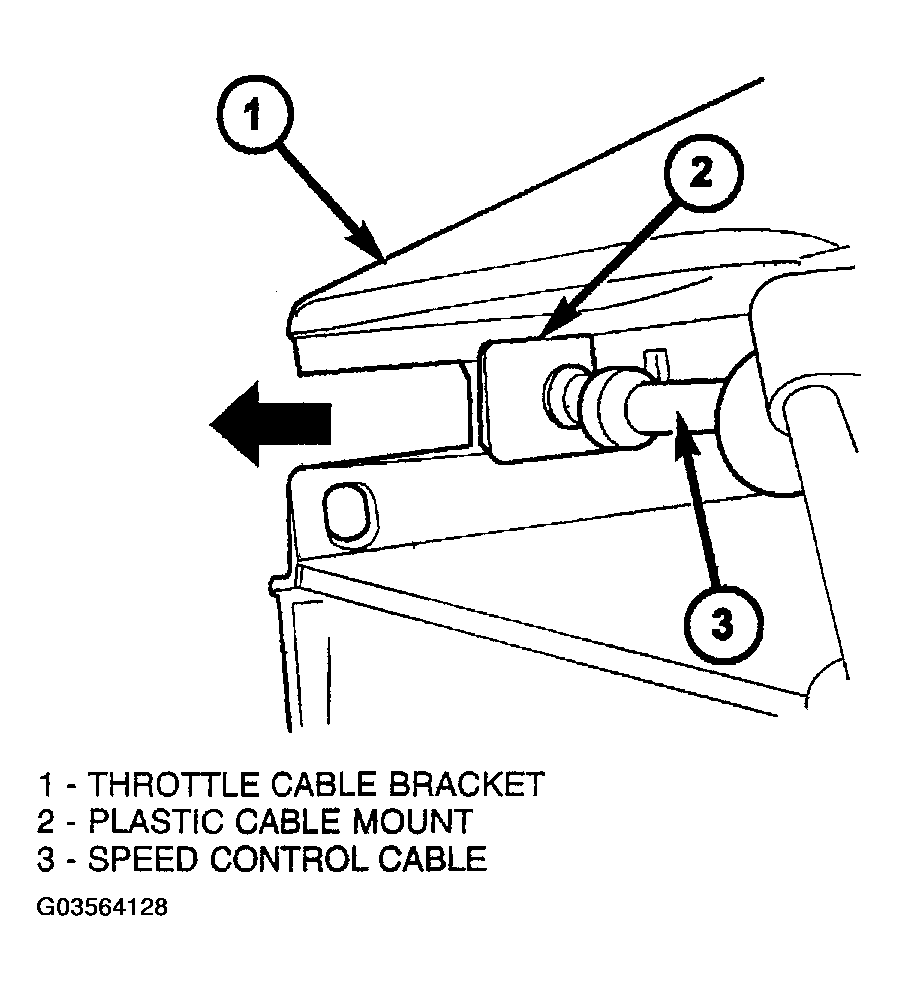

    Fig 1: Identifying Component Of Speed Control Cable At Bracket - 3.7L / 4.7L
    G03564128Courtesy of DAIMLERCHRYSLER CORP.
  5. Squeeze 2 pinch tabs (Fig 2) on sides of speed control cable at mounting bracket and push cable rearward out of bracket.
  6. Remove cable from vehicle.

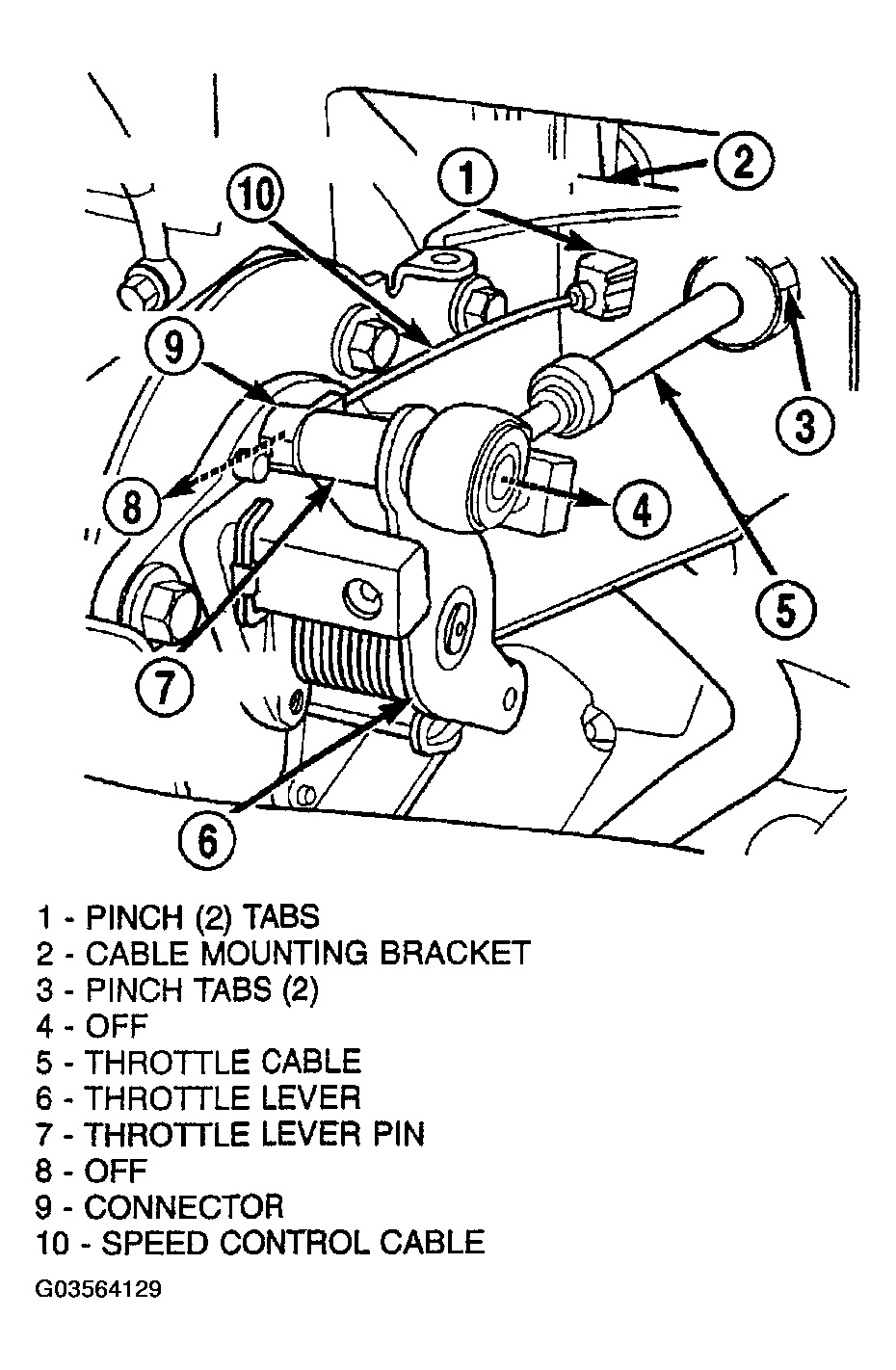

    Fig 2: Identifying Component Of Servo Cable At Throttle Lever - 5.9L Diesel
    G03564129Courtesy of DAIMLERCHRYSLER CORP.
