Section 130 (Speed Control): Servo: Installation

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position servo to mounting bracket (Figure).

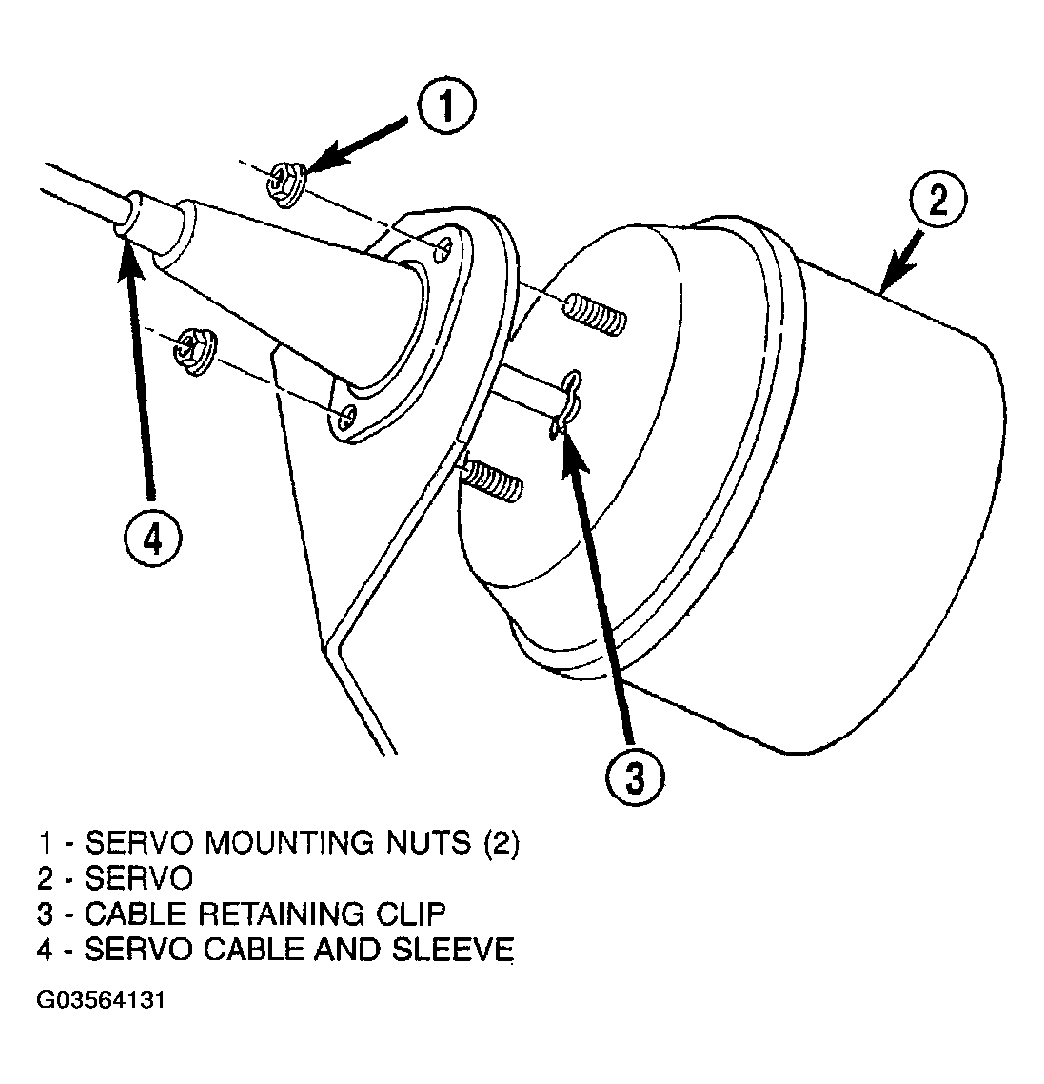

  2. Align hole in cable connector with hole in servo pin. Install cable-to-servo retaining clip (Figure).
  3. Insert servo mounting studs through holes in servo mounting bracket.
  4. Install 2 servo-to-mounting bracket nuts and tighten. Refer to TORQUE - SPEED CONTROL .

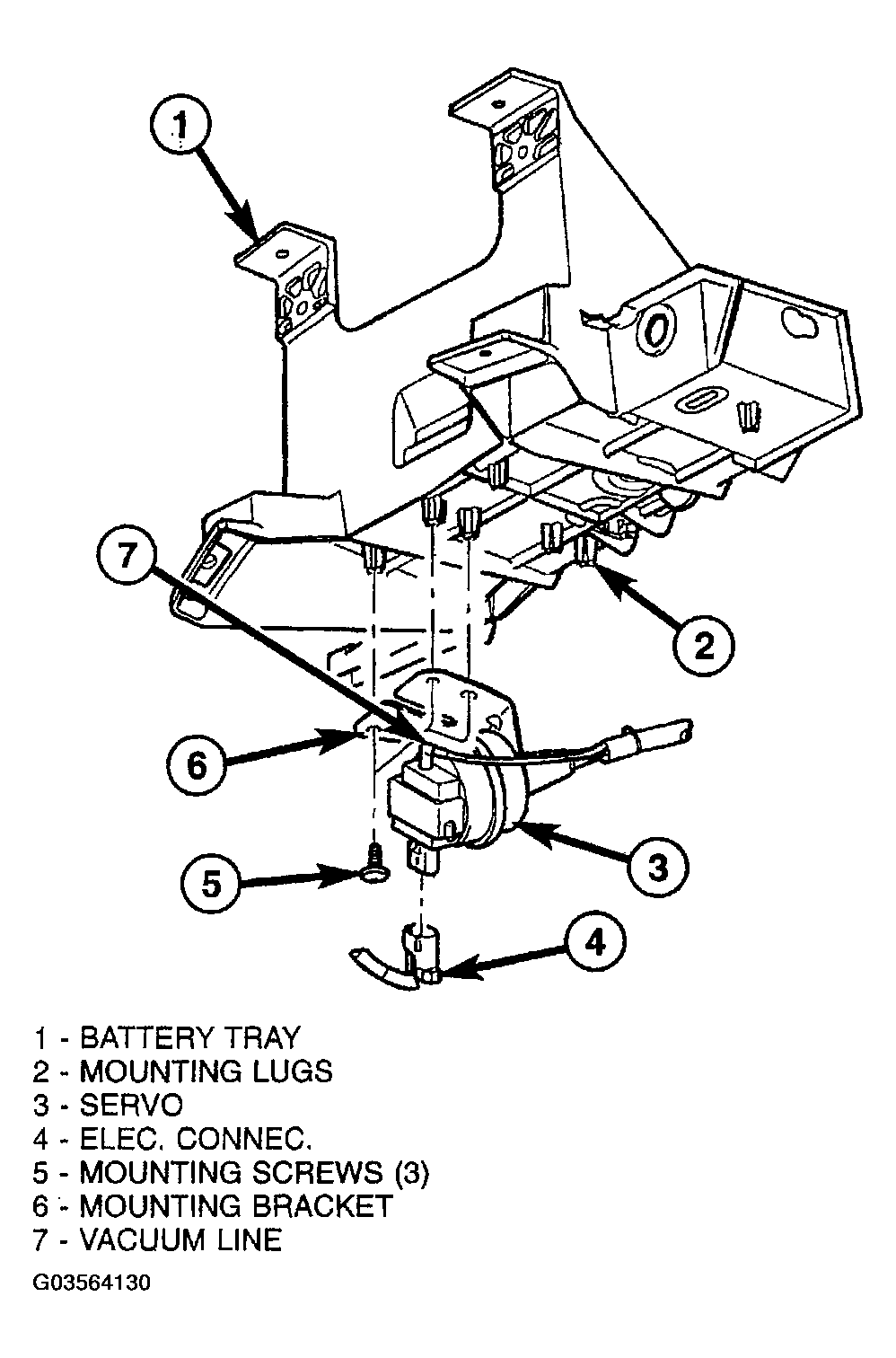

  5. Position servo assembly to correct mounting lugs on battery tray (Figure) and install 3 screws. Tighten 3 screws. Refer to TORQUE - SPEED CONTROL .
  6. Connect vacuum line at servo.
  7. Connect electrical connector at servo.
  8. Connect servo cable to throttle body. Refer to Servo Cable REMOVAL /INSTALLATION .
  9. Install left-front wheel-well liner.
  10. Connect negative battery cable to battery (connect both cables if diesel).
  11. Before starting engine, operate accelerator pedal to check for any binding.
