Controller Antilock Brake C2 (AWAL) Connector End View

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

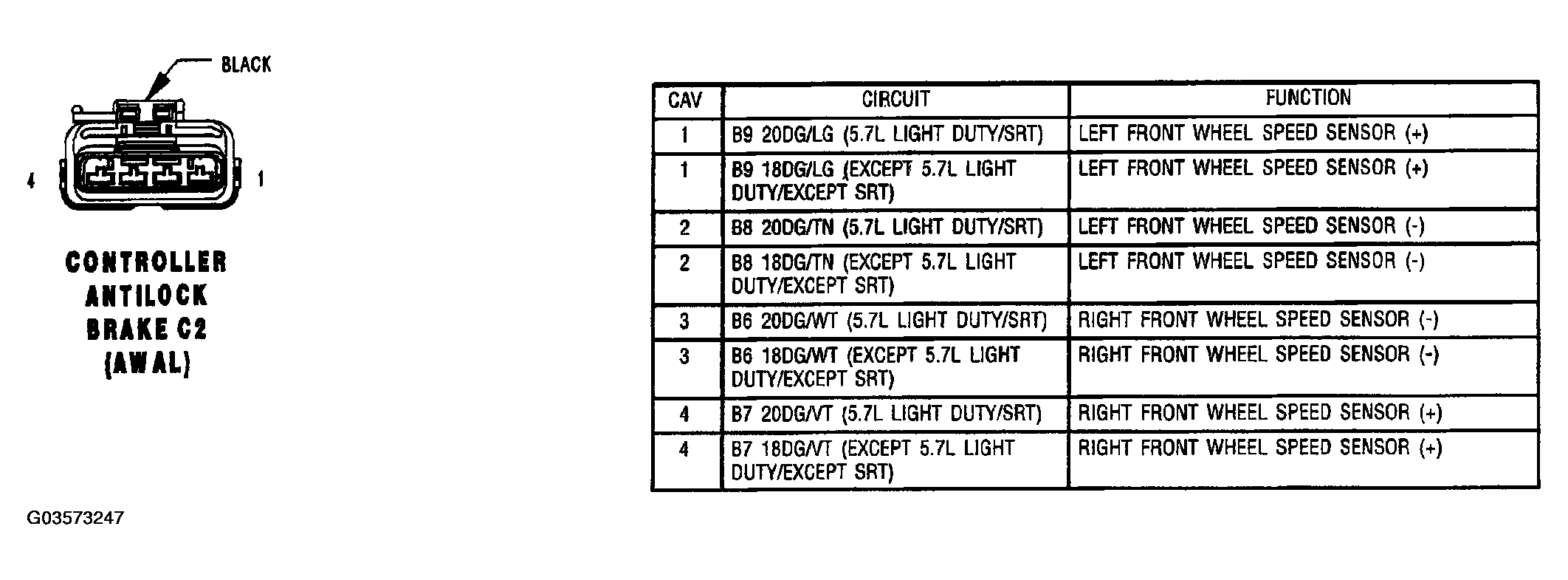

Fig 1: Antilock Brake Controller (AWAL) Connector End View (C2)
G03573247Courtesy of DAIMLERCHRYSLER CORP.
