Engine Control Module C1 (Diesel) Connector End View
WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

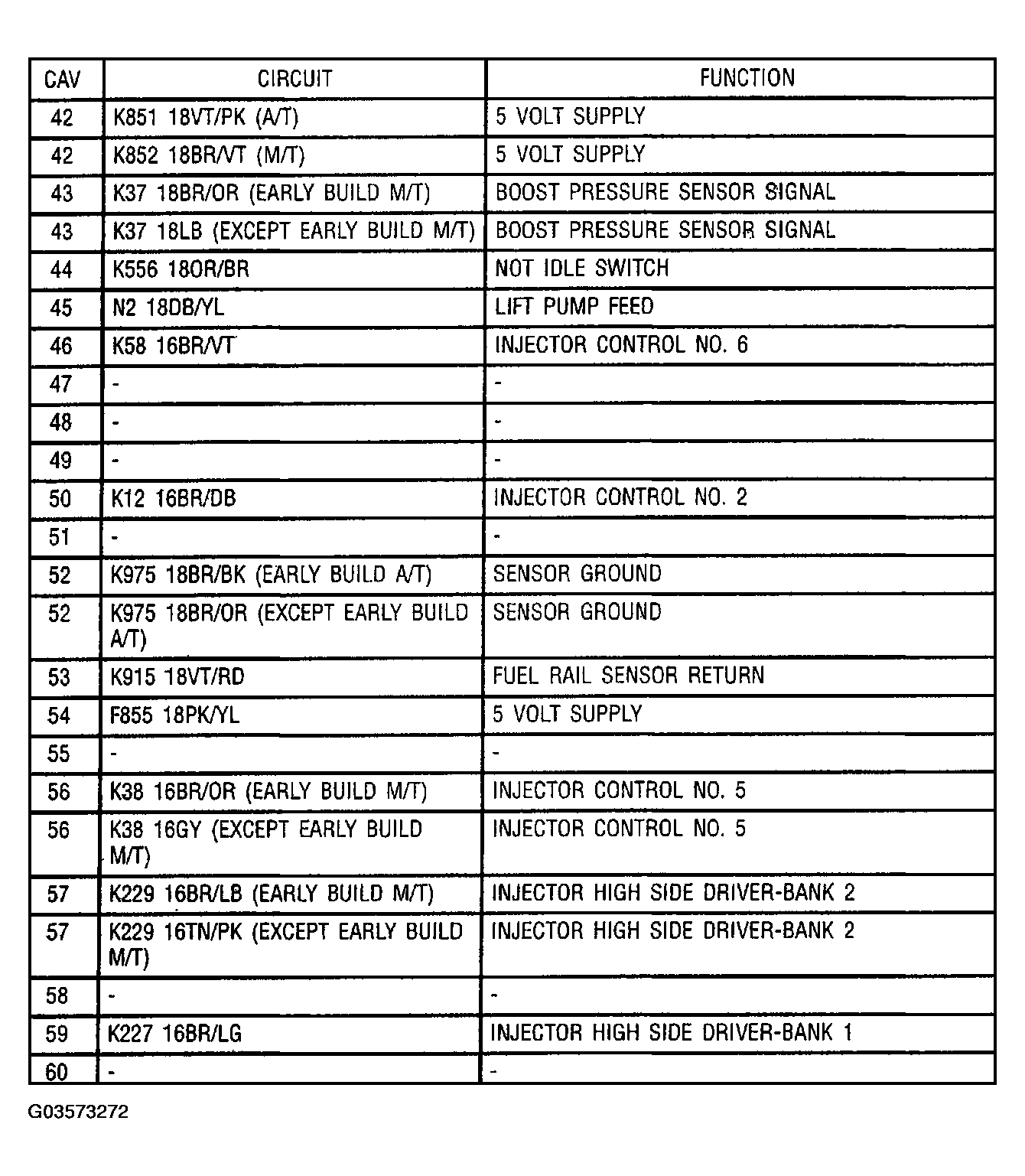

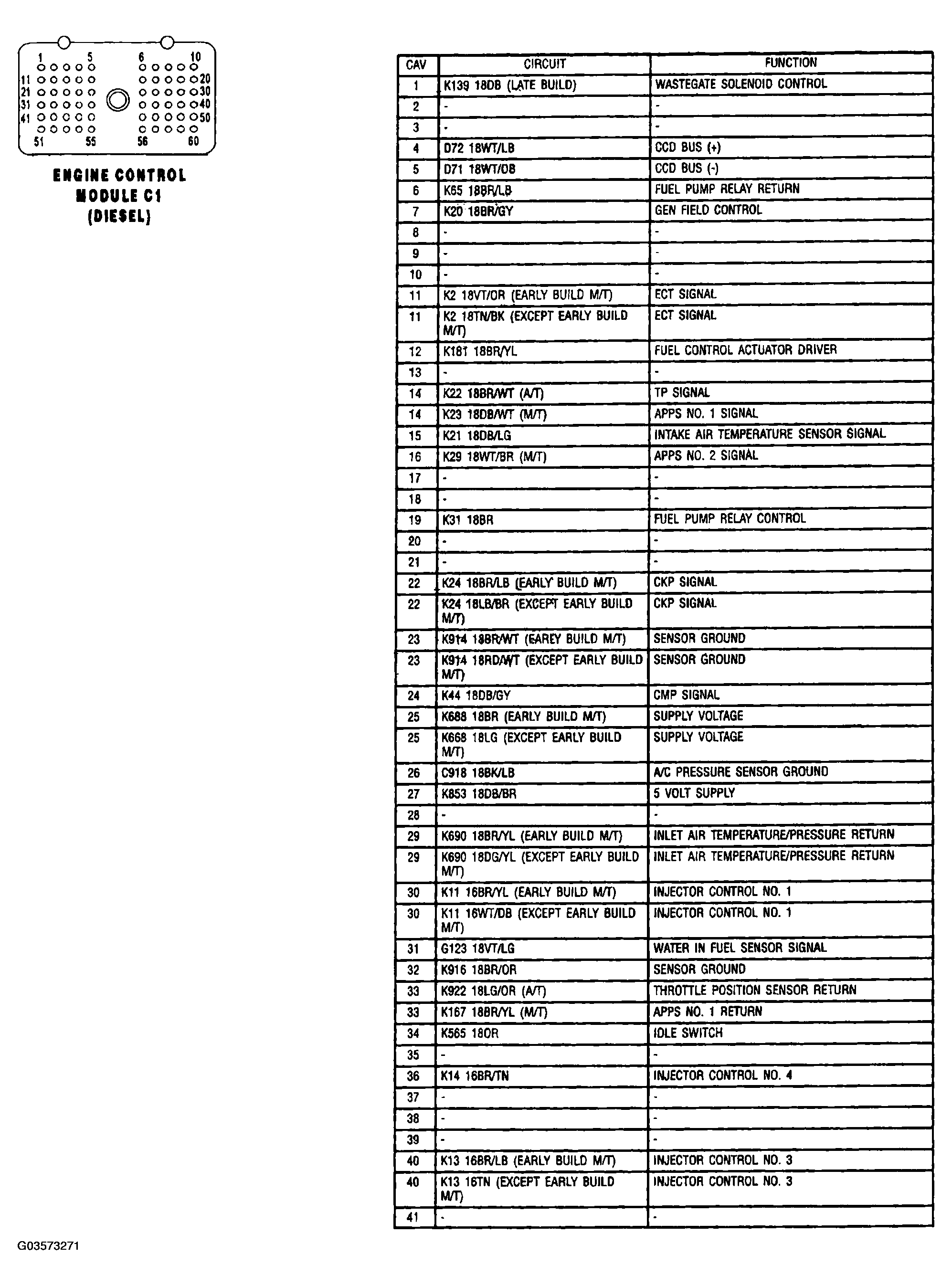

Fig 1: Engine Control Module (Diesel) Connector End View (C1)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 1: Engine Control Module (Diesel) Connector End View (C1)
