Integrated Power Module: Installation
WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the front control module by pushing it straight on the integrated power module electrical receptacle.

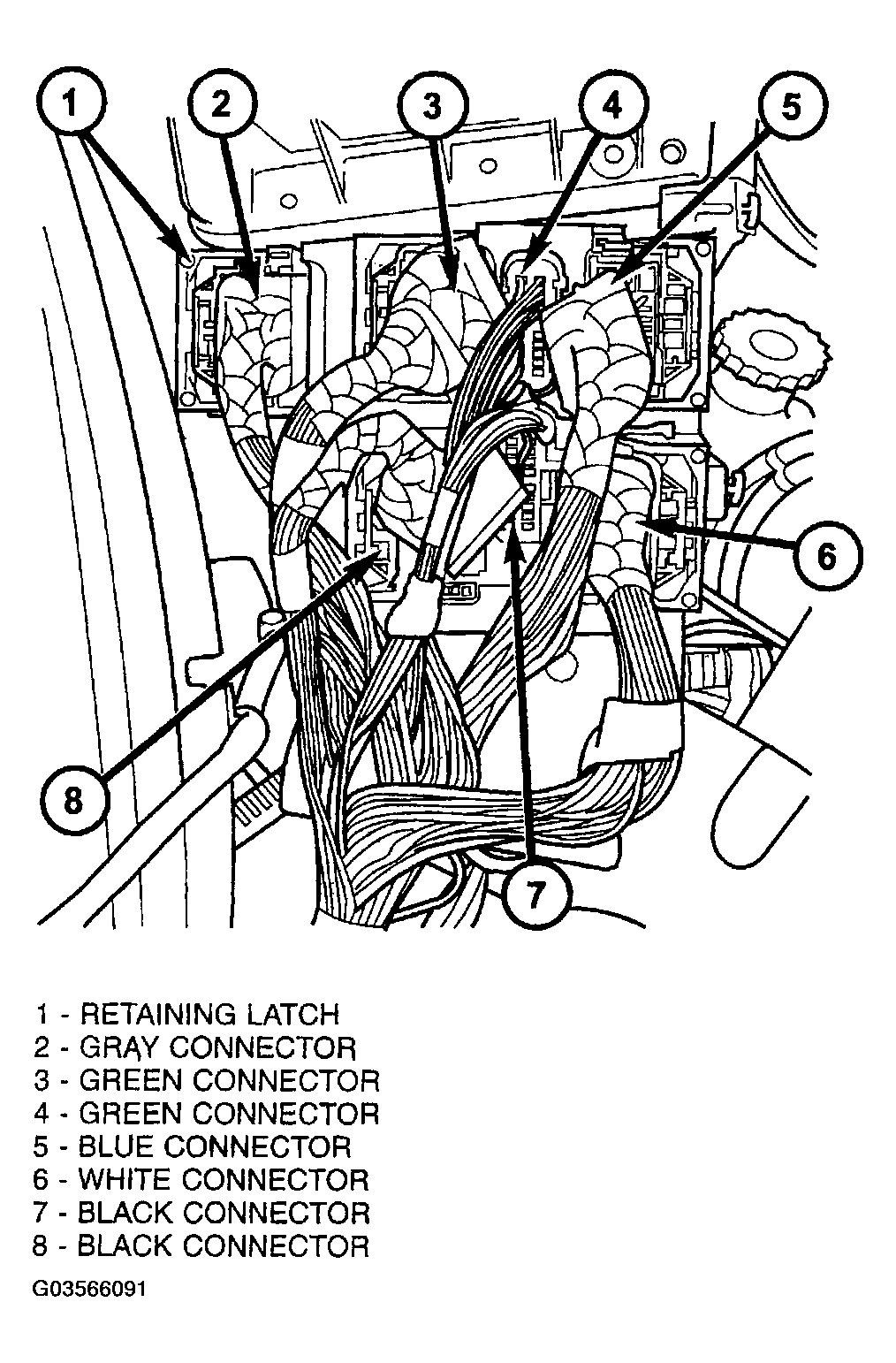

- Install the four front control module retaining screws. Torque to 30 in. lbs. +/-5.NOTE: Integrated power module electrical connectors are color coded to ease location reference (Fig 1 ).
- Connect the electrical connectors by pushing straight on and rotating the connector arm inboard, until the connector is firmly locked in place on the module assembly.
- Grasp the integrated power module with two hands and install the assembly on the battery tray (Figure ).
- Install the integrated power module retaining bolt and screw.
- Connect the gray connector on the integrated power module housing.
- Install the B+ terminal cable and nut on the integrated power module B+ terminal. Snap the cover in place.
- Connect the negative and positive battery cables.
