Section 154 (Seats): Seat-Rear: Removal
WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the load floor. (Refer to LOAD FLOOR )

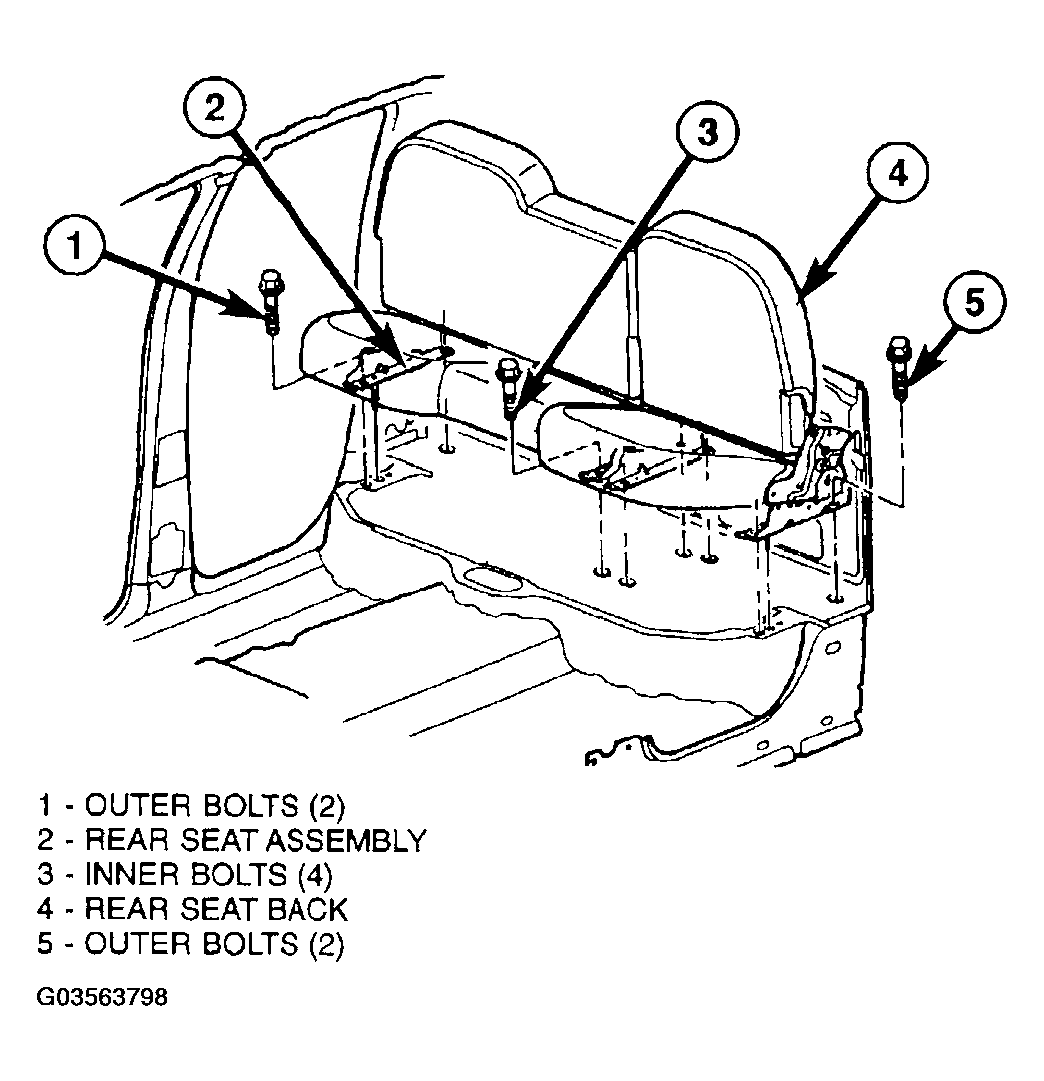

- Fold the rear seat cushions up and remove the rear bolts. (Fig 1 )

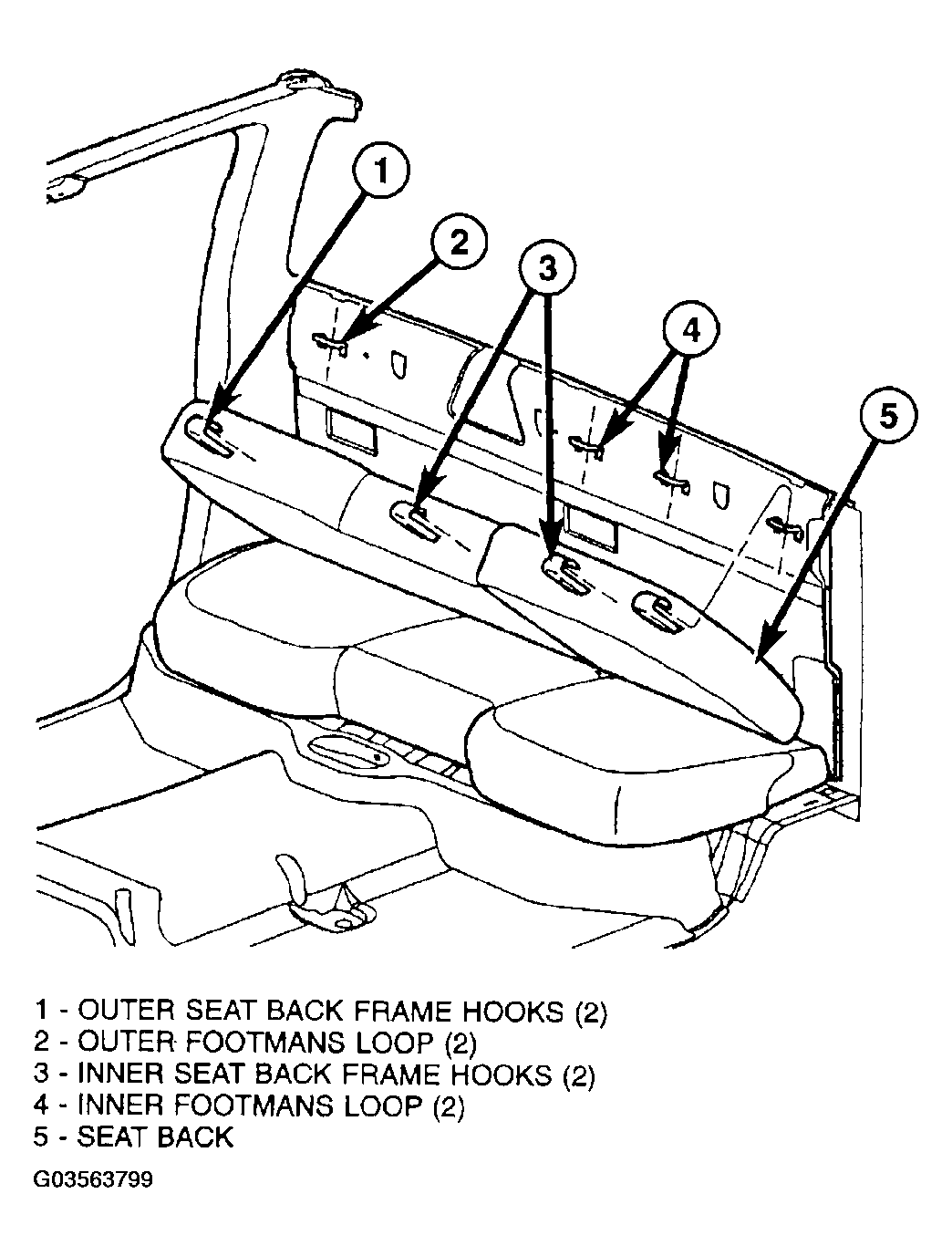

- Lift each seat assembly up and disengage the seat back frame hooks from the footmans loops bolted to the rear cab back. (Figure )
- Remove the seats from the vehicle.
