Data Link Connector: Description

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

The data link connector is located inside the vehicle, below instrument panel next to the center column (Fig 1).

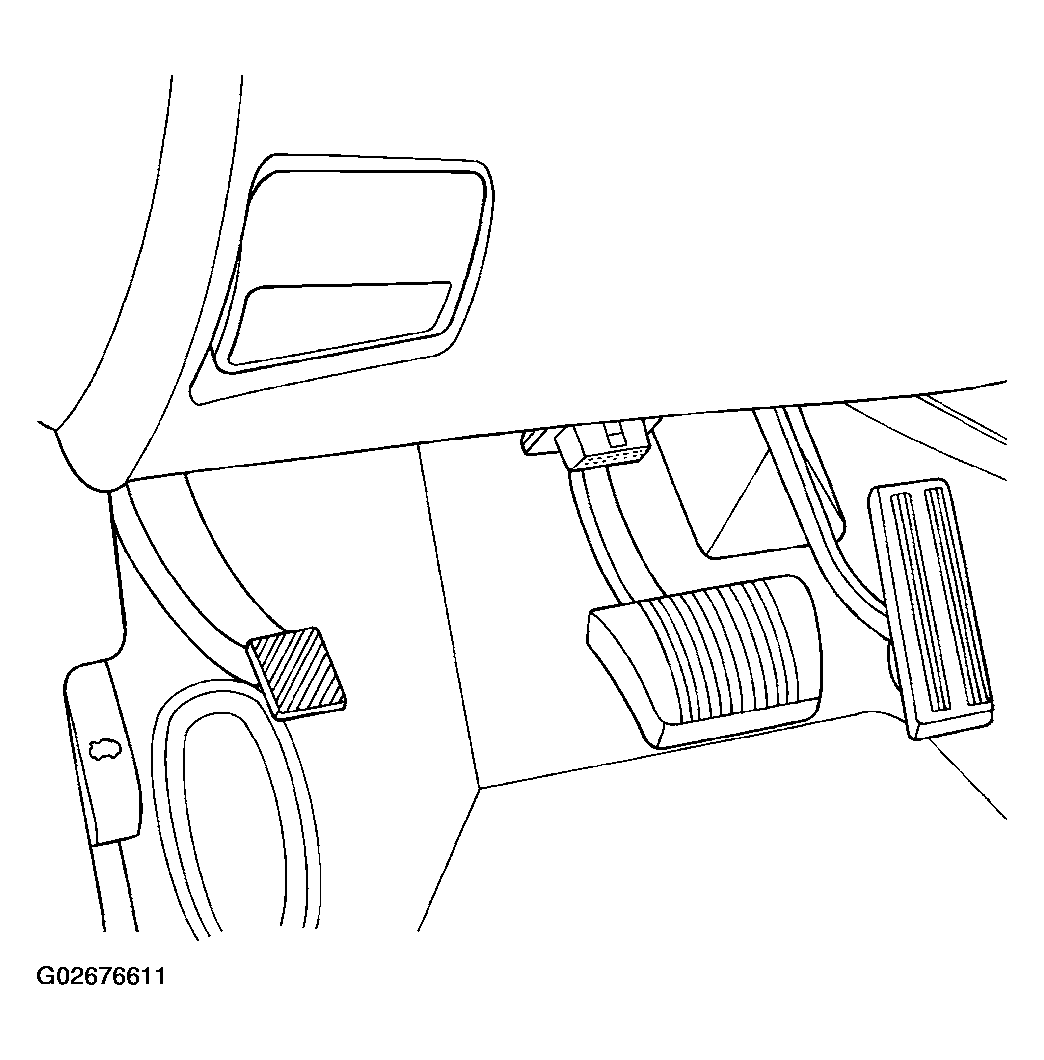

Fig 1: Locating Data Link Connector
G02676611Courtesy of DAIMLERCHRYSLER CORP.
