Remote Keyless Entry Module: Removal

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the battery negative cable.
  2. Remove instrument panel top cover (Refer to INSTRUMENT PANEL ).
  3. Remove screws holding RKE module to instrument panel.
  4. Disconnect wire connector from RKE module (Fig 1 ).

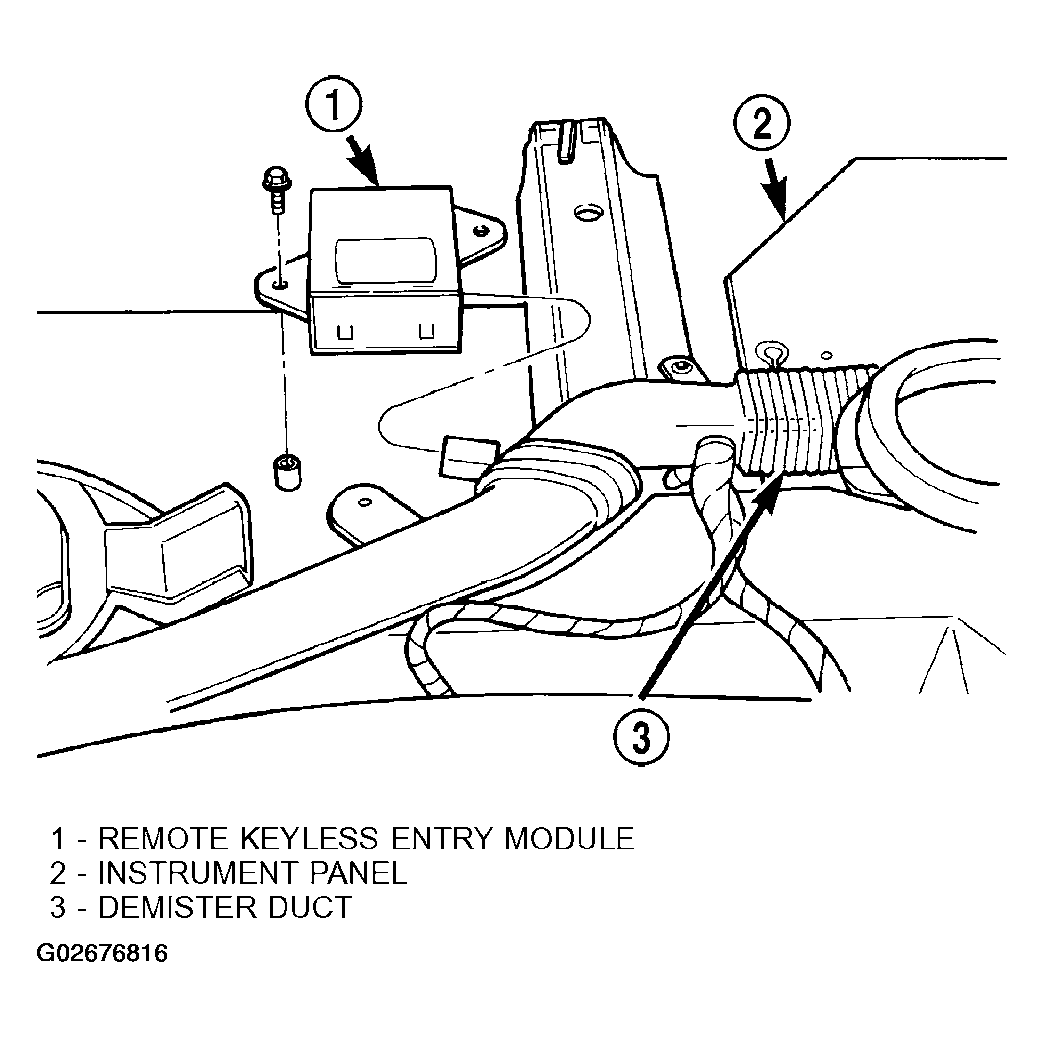

    Fig 1: Removing RKE Module
    G02676816Courtesy of DAIMLERCHRYSLER CORP.
  5. Remove the RKE module from vehicle.
