Memory Set Switch: Description
WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

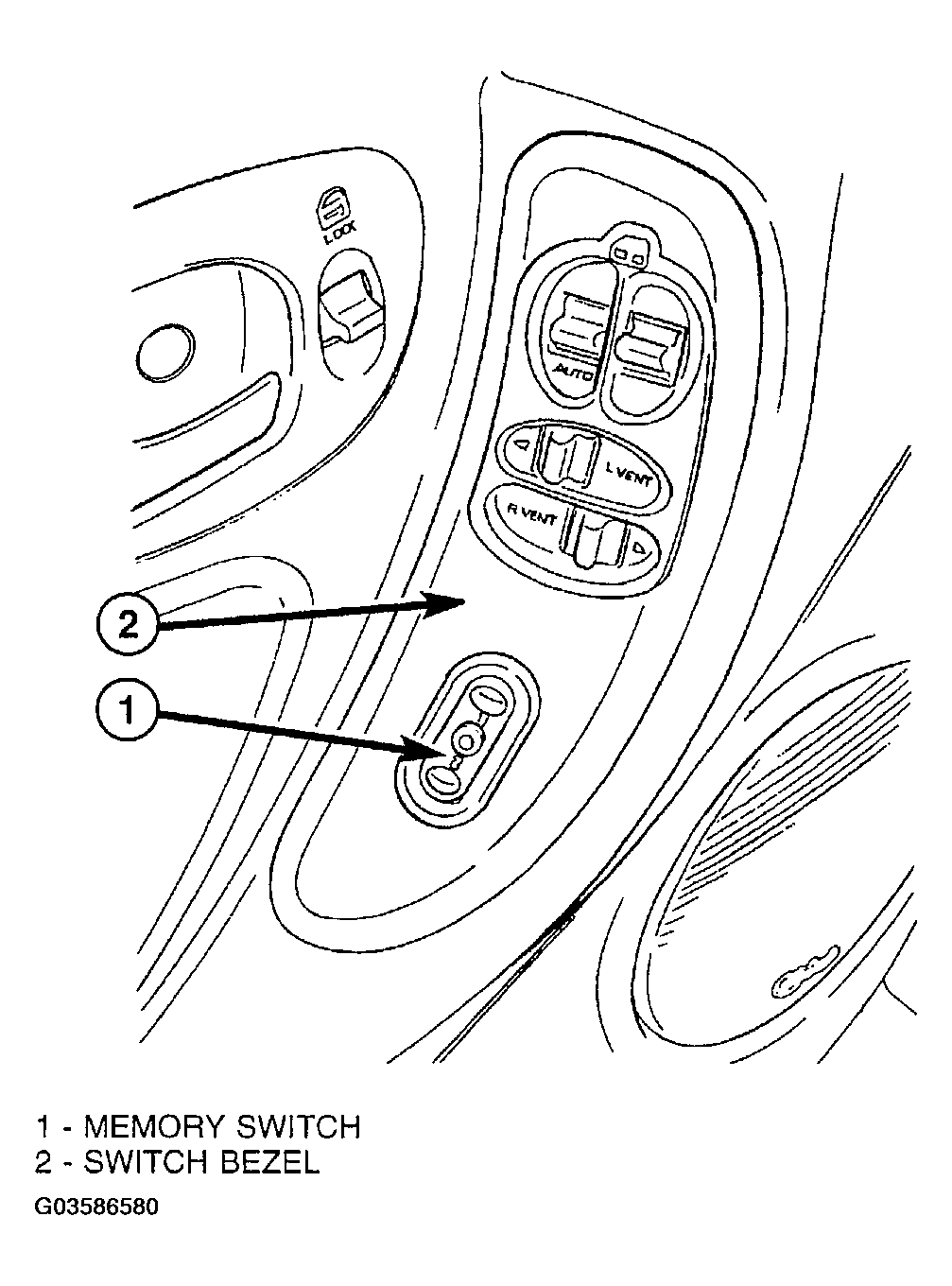

Vehicles equipped with the memory system have a memory switch mounted to the driver side front door trim panel (Fig 1 ). This switch is used to set and recall all of the memory system settings for up to two drivers. The memory switch is a resistor multiplexed unit that is hard wired to the Body Control Module (BCM). The BCM sends out the memory system set and recall requests to the other electronic modules over the Programmable Communications Interface (PCI) data bus.
The memory switch cannot be adjusted or repaired and, if faulty or damaged, it must be replaced. For complete circuit diagrams, refer to Wiring Diagrams.
