Using The DRBIII®

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

Refer to scan tool user's guide for instructions and assistance with reading trouble codes, erasing trouble codes, and other DRBIII® functions.

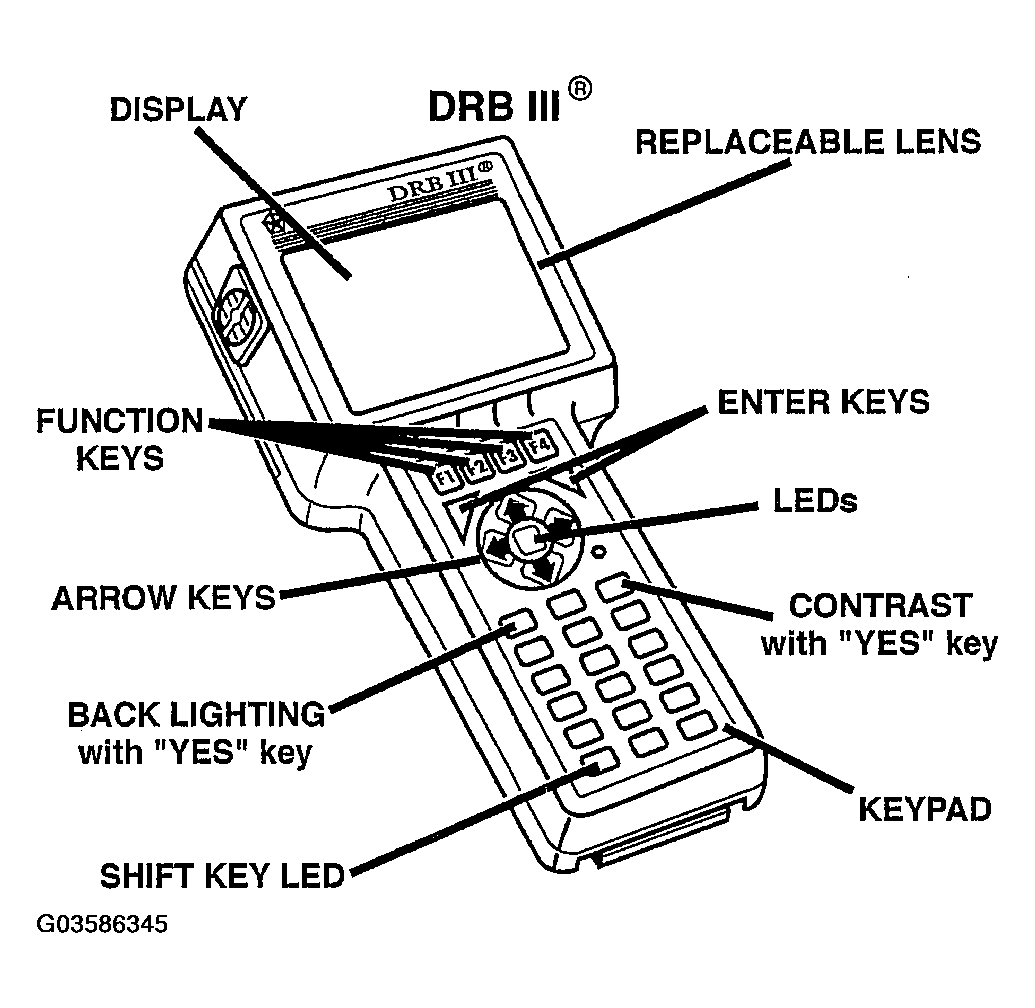

Fig 1: Identifying DRBIII® Functions
G03586345Courtesy of DAIMLERCHRYSLER CORP.
