Antenna Module - Export: Removal
WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the battery negative cable.

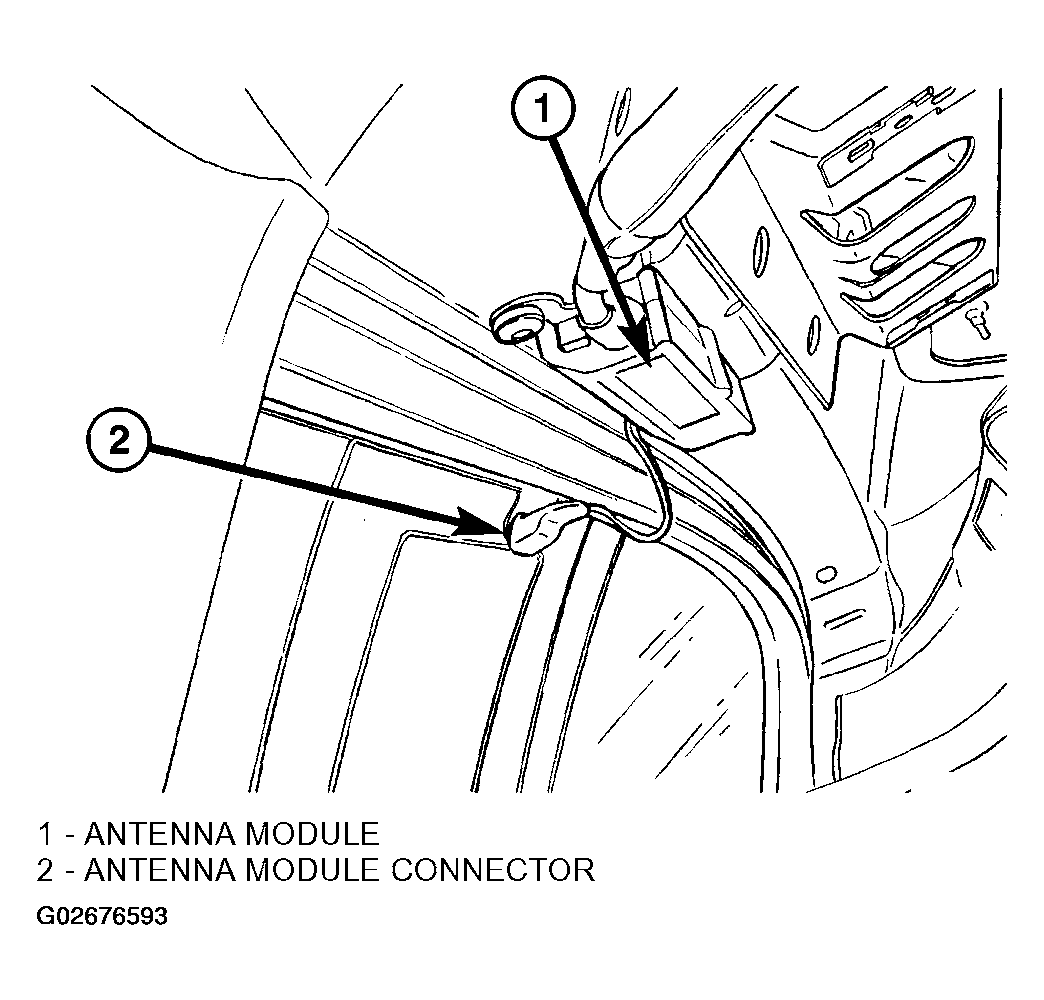

- Lower headliner as necessary to access antenna module (Fig 1 ).
- Disconnect antenna coax cable lead and electrical harness connector from antenna module.
- Disconnect the antenna module connector from the quarter glass.
- Remove the mounting screw and the antenna module.
