Video Screen: Removal

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect and isolate the battery negative battery cable.
Remove the lens bezel.
Remove the rear console screws (Fig 1 ).

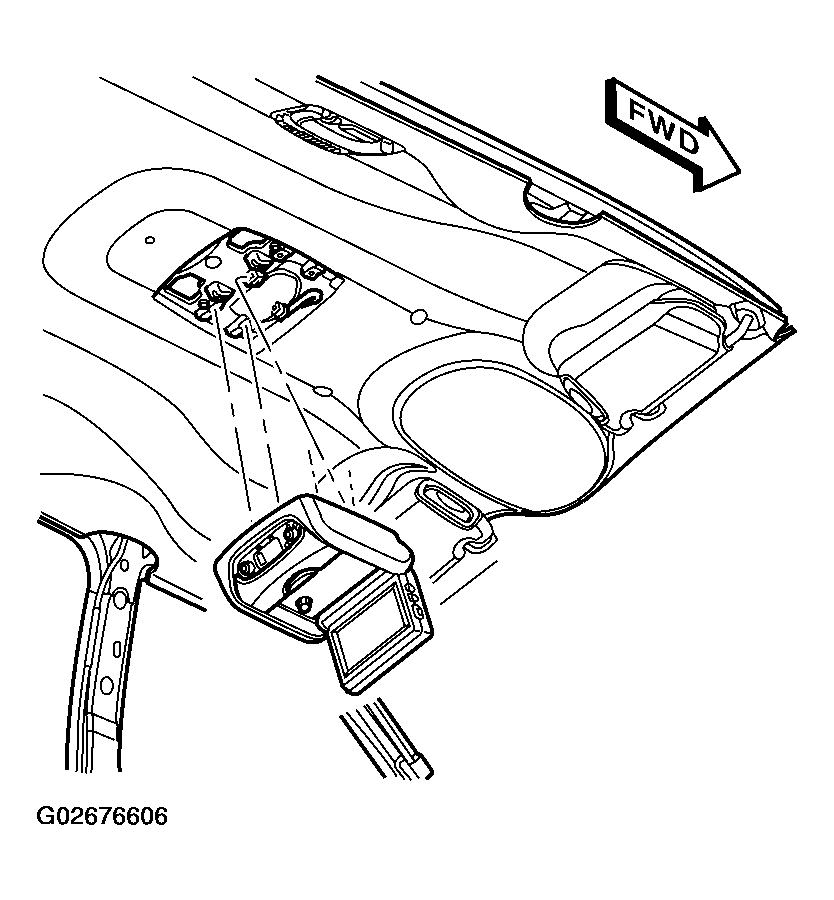

Fig 1: Removing Video Screen
Courtesy of DAIMLERCHRYSLER CORP.
Remove the rear A/C trim bezel.
Disconnect A/C wire harness connector.
Remove remaining mounting screws.
Disconnect wire harness connectors.
