Description - Pcm
WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

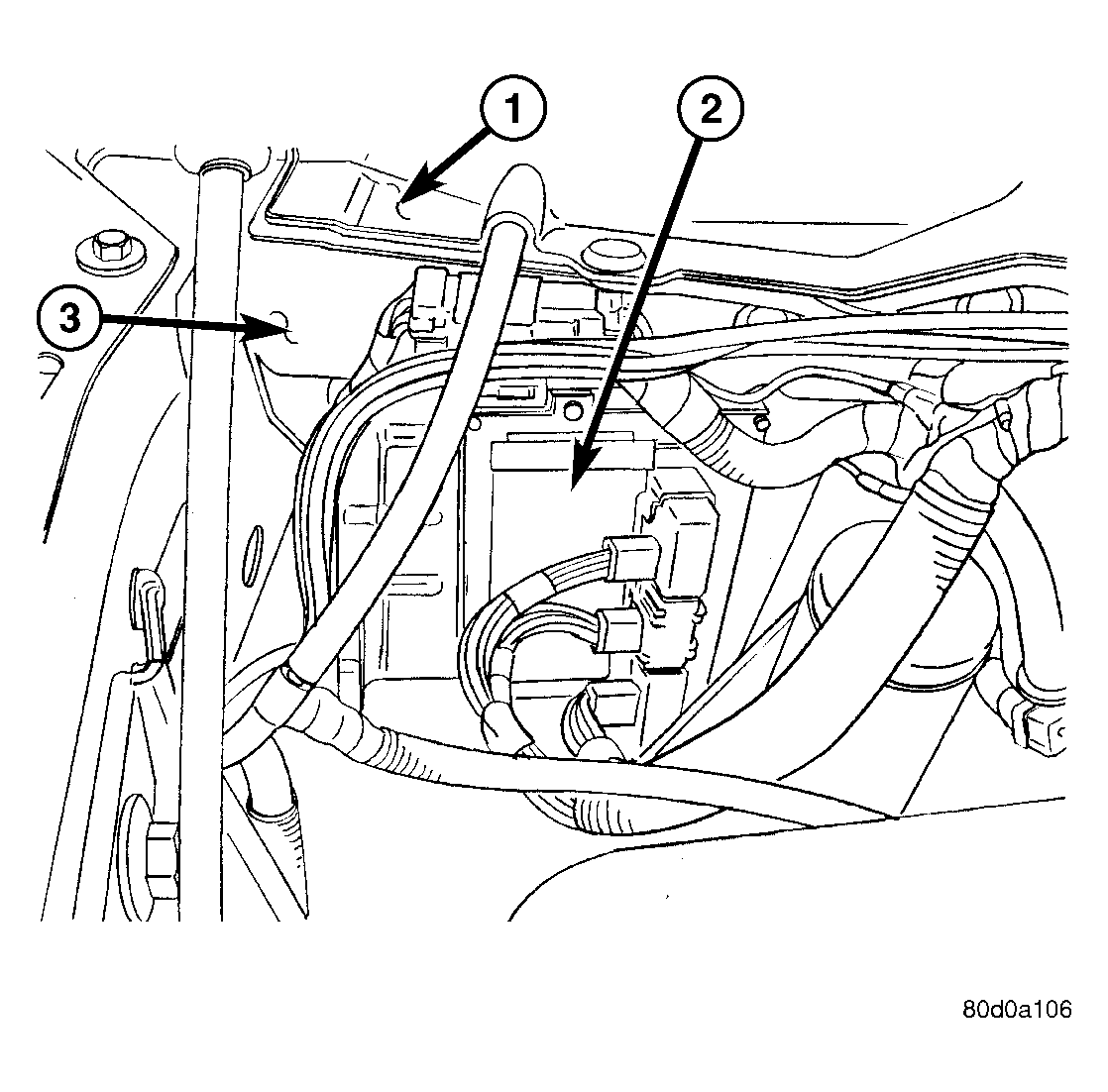

| 1 - COWL GRILL |
| 2 - PCM |
| 3 - COWL (RIGHT-REAR) |
The Powertrain Control Module (PCM) is located in the right-rear section of the engine compartment under the cowl. See Fig 1.
Two different PCM's are used (JTEC and NGC). These can be easily identified. JTEC's use three 32-way connectors, NGC's use four 38-way connectors
