Module-Transmission Control: Description

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

The Transmission Control Module (TCM) (2) may be sub-module within the Powertrain Control Module (PCM) (3). Or, for vehicles with a diesel engine, the Engine Control Module (ECM) (1). See Fig 1. The PCM, and TCM when equipped, is located at the right rear of the engine compartment, near the right inner fender. See Fig 2.

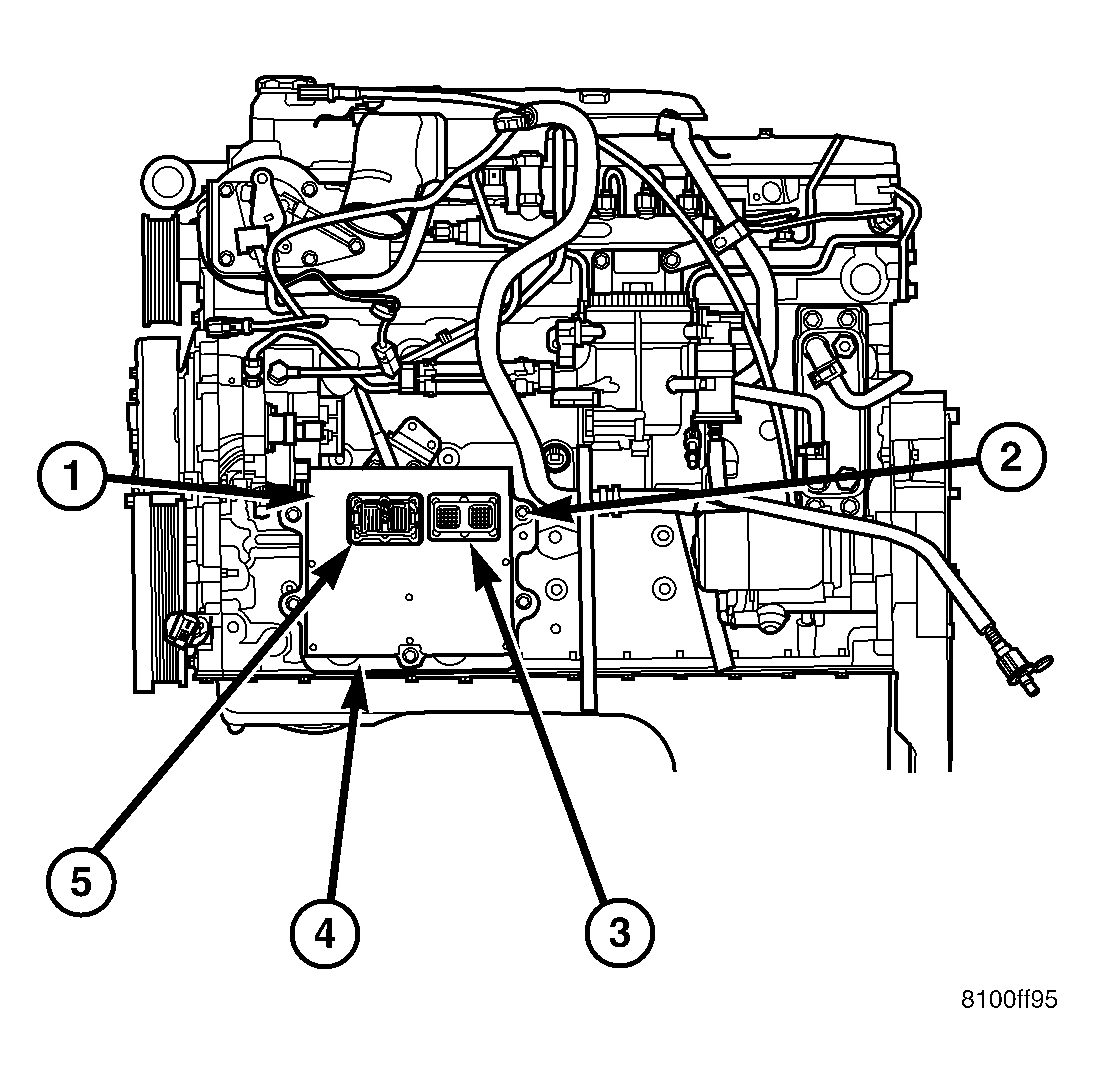

Fig 1: Identifying Diesel ECM

Courtesy of DAIMLERCHRYSLER CORP.

1 - ENGINE CONTROL MODULE (ECM)

2 - ECM MOUNTING BOLT

3 - 50-WAY CONNECTOR

4 - SUPPORT PLATE

5 - 60-WAY CONNECTOR

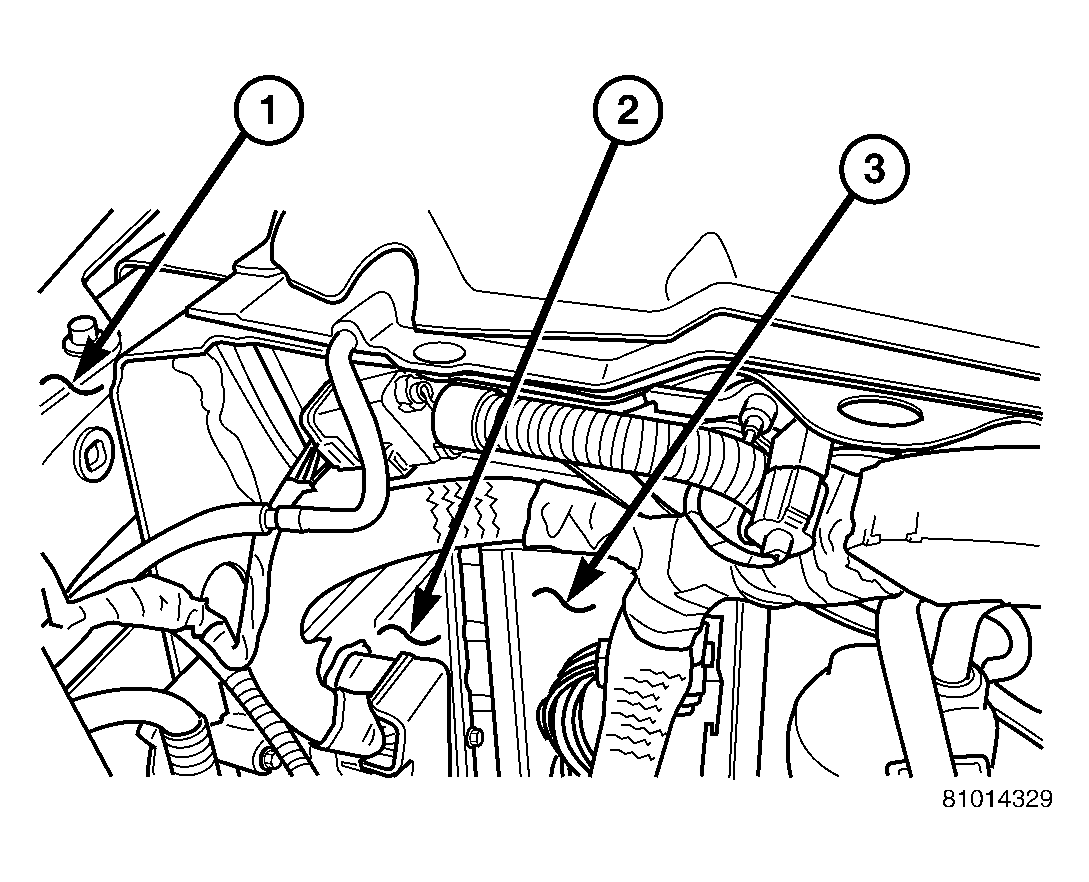

Fig 2: Identifying PCM/TCM

Courtesy of DAIMLERCHRYSLER CORP.

1 - RIGHT FENDER

2 - TRANSMISSION CONTROL MODULE

3 - POWERTRAIN CONTROL MODULE
