Push-Button Starter Switch: Installation

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

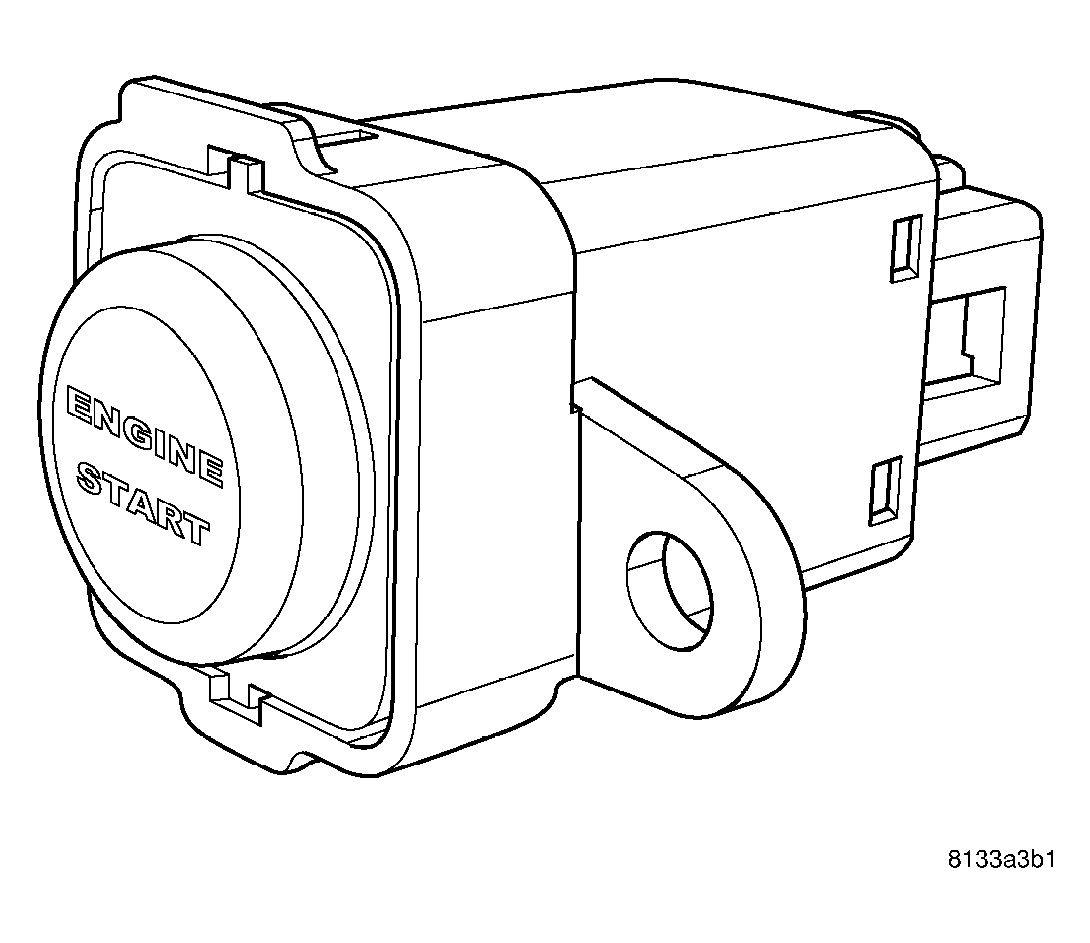

Fig 1: PUSH-BUTTON STARTER
GC0006192Courtesy of DAIMLERCHRYSLER CORP.
  1. Position switch. See Fig 1 into instrument panel opening.
  2. Install and tighten two switch retaining screws.
  3. Install electrical connector to back of switch.
  4. Install plastic panel below push-button switch.
