Ignition Switch: Installation

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

The ignition key must be in the key cylinder for cylinder removal. The key cylinder must be removed first before installing ignition switch.

Before installing ignition switch, rotate the slot in the switch to the ON position.

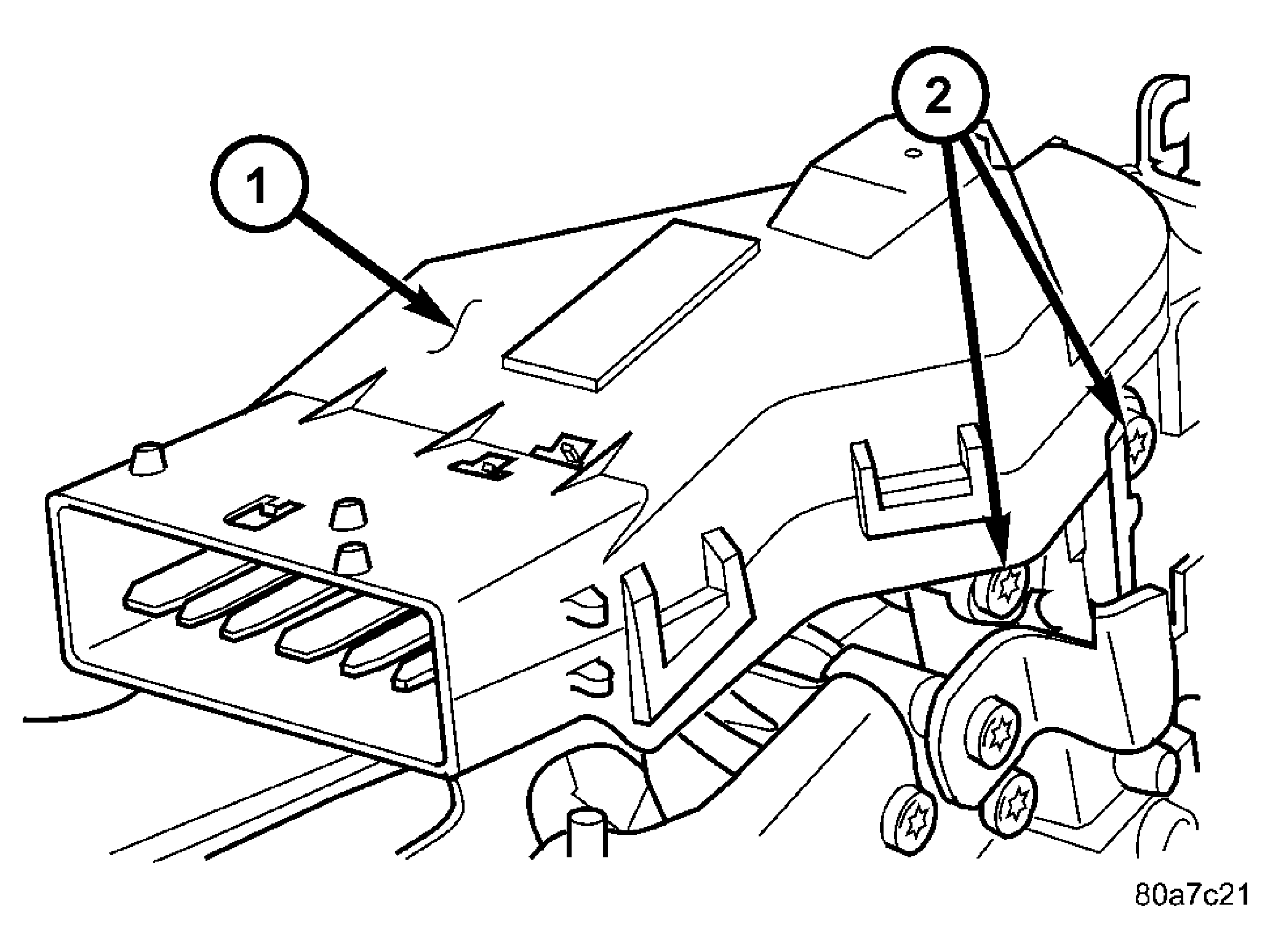

Fig 1: IGNITION SWITCH
Courtesy of DAIMLERCHRYSLER CORP.

1 - Ignition Switch

2 - Ignition Switch Mounting Screws
Connect the electrical connector to rear of the ignition switch. Make sure that locking tabs are fully seated into wiring connector.
Position switch (1) to column and install the mounting screw (2). Tighten screw to 3 N.m (26 in. lbs.).

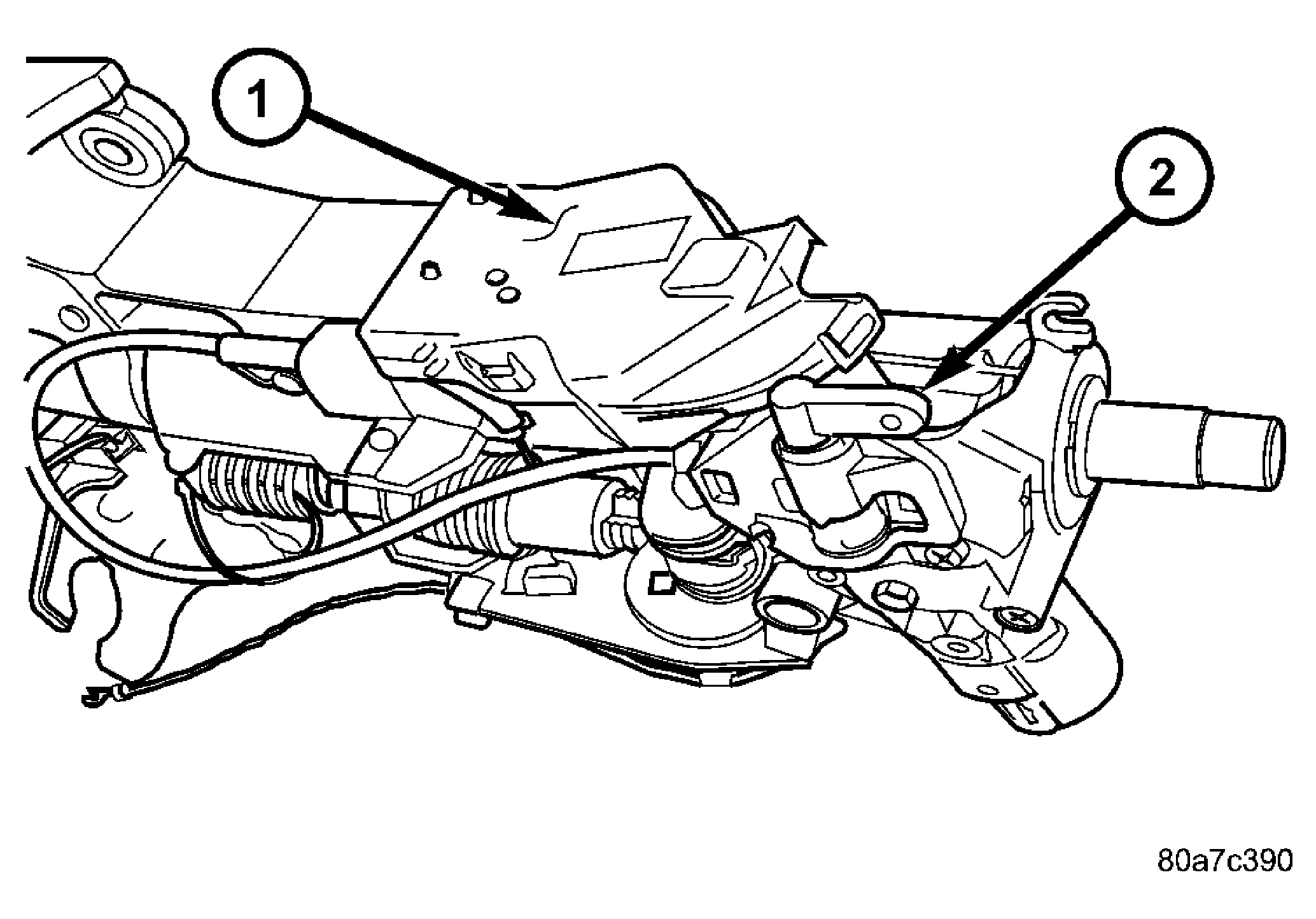

Fig 2: IGNITION SWITCH WITH TILT
Courtesy of DAIMLERCHRYSLER CORP.

1 - IGNITION SWITCH

2 - TILT LEVER MECHANISM
Install the tilt lever bracket (2) mounting screws. Tighten screws to 4.5 N.m (40 in. lbs.).

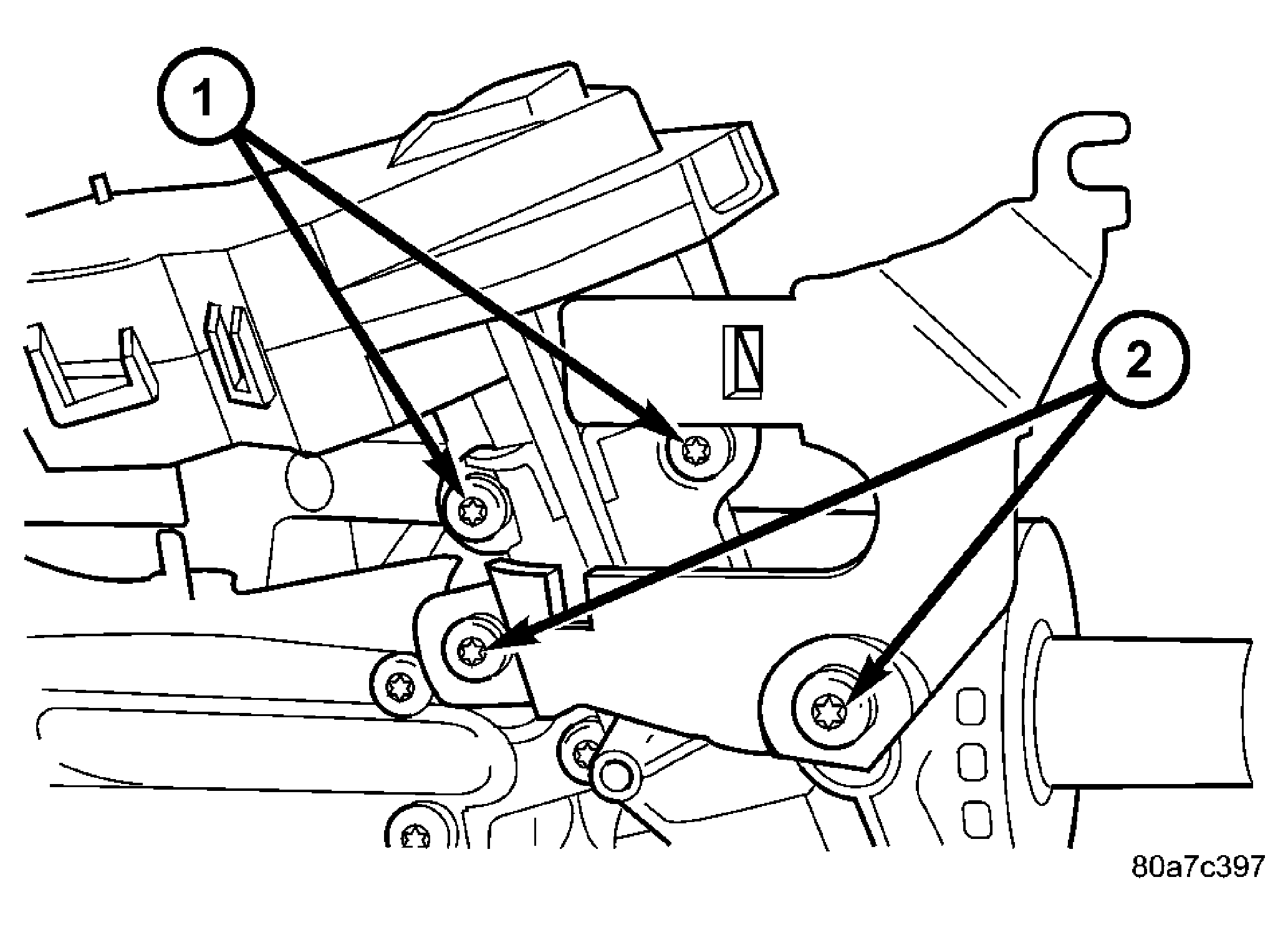

Fig 3: IGNITION SWITCH WITHOUT TILT
Courtesy of DAIMLERCHRYSLER CORP.

1 - Ignition Switch Mounting Screws

2 - Non-Tilt Mounting Bracket Screws

If the column is non-tilt install the bracket (2). Tighten screws to 4.5 N.m (40 in. lbs.). See Figure

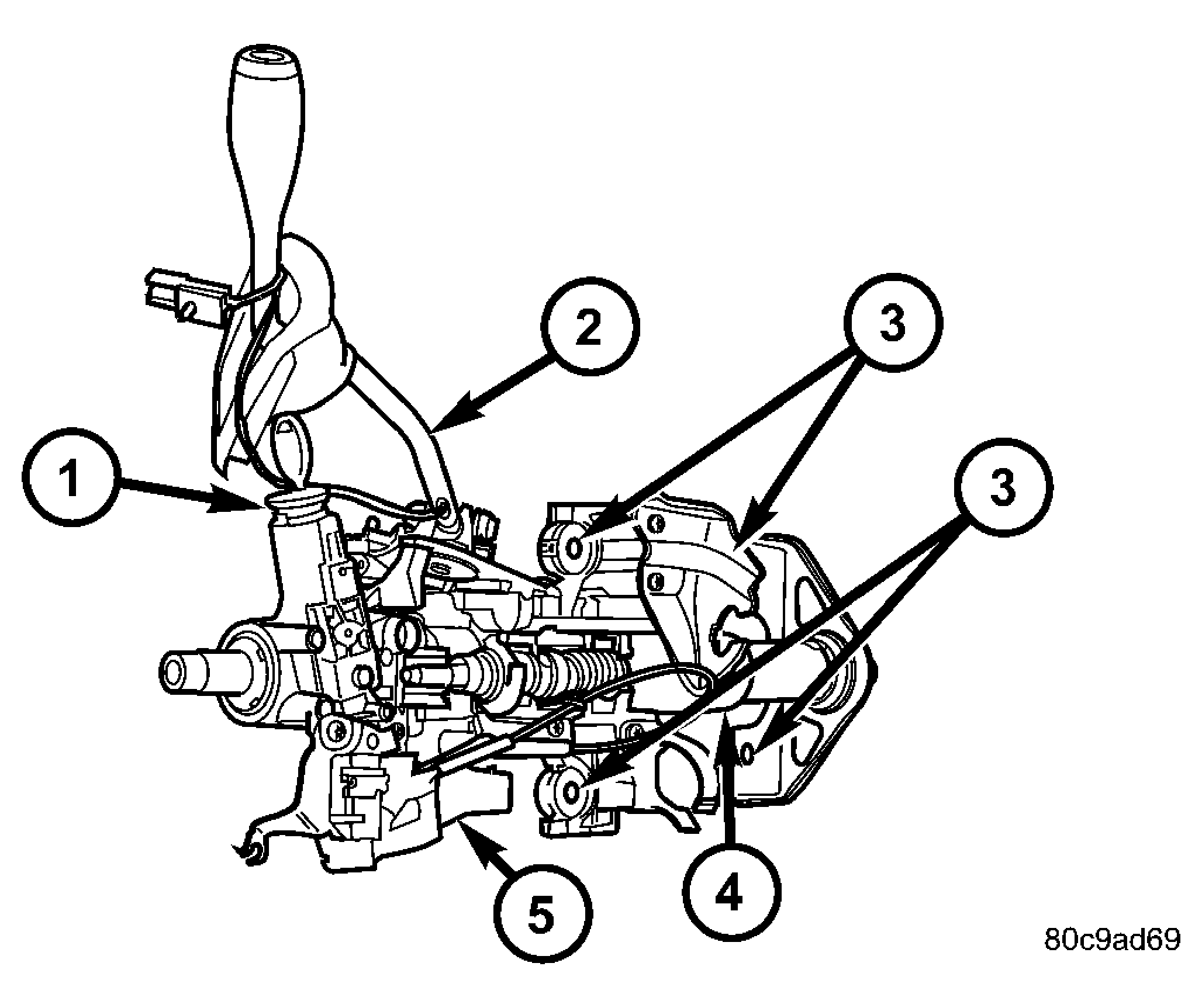

Fig 4: STEERING COLUMN

Courtesy of DAIMLERCHRYSLER CORP.

1 - KEY CYLINDER

2 - GEAR SHIFT LEVER

3 - MOUNTING HOLES

4 - STEERING COLUMN

5 - IGNITION SWITCH

Position the wire retainer into the tilt lever bracket.
Reconnect the lower clockspring connectors.
Install the key cylinder (1)
Install steering column upper and lower shrouds.
Enable the airbag system. (Refer to ELECTRICAL/RESTRAINTS/DRIVER AIRBAG - INSTALLATION) .
