Circuit Schematic

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

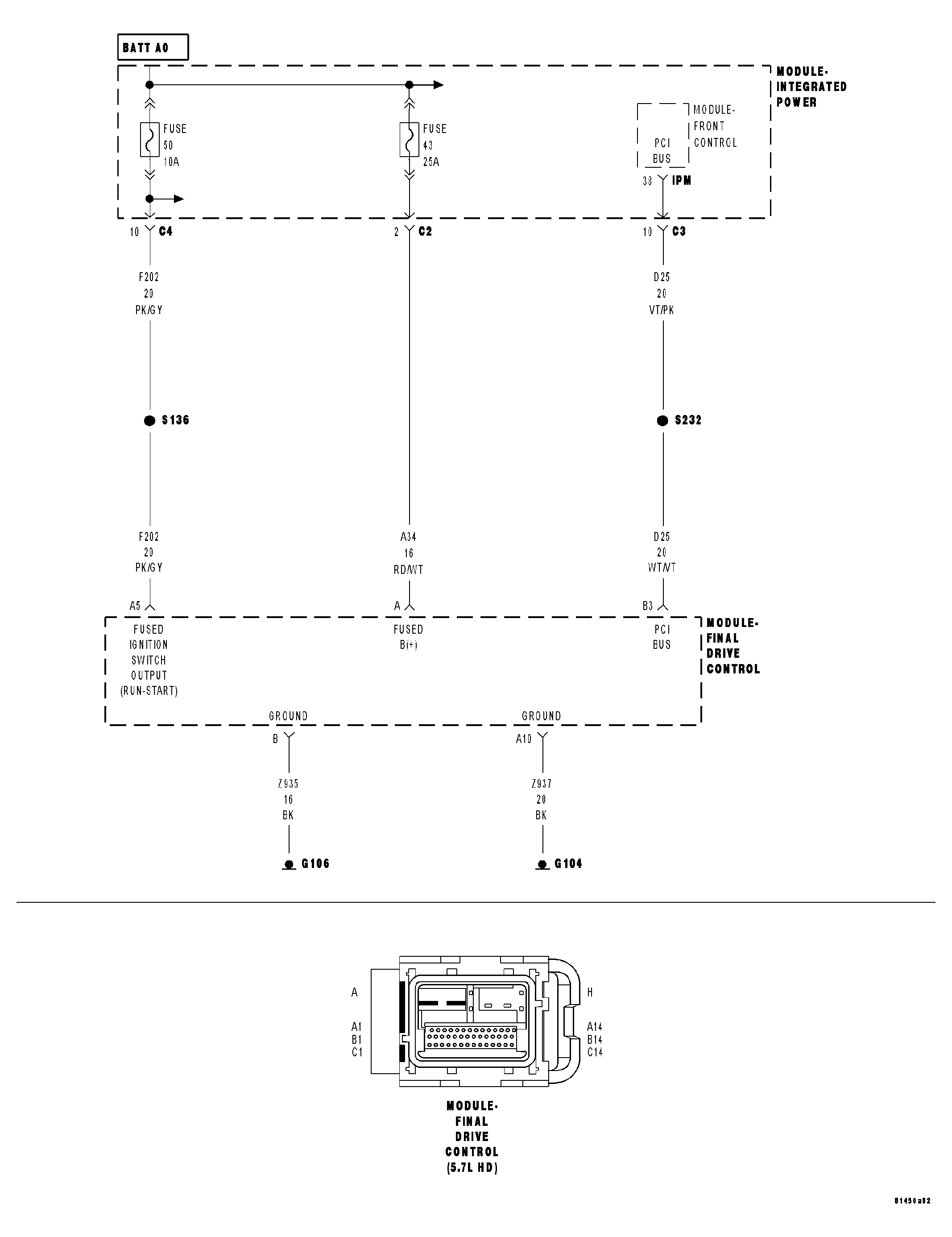

Fig 1: Final Drive Control Module Communication Schematic
GC0006050Courtesy of DAIMLERCHRYSLER CORP.
