Module-Integrated Power: Description

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

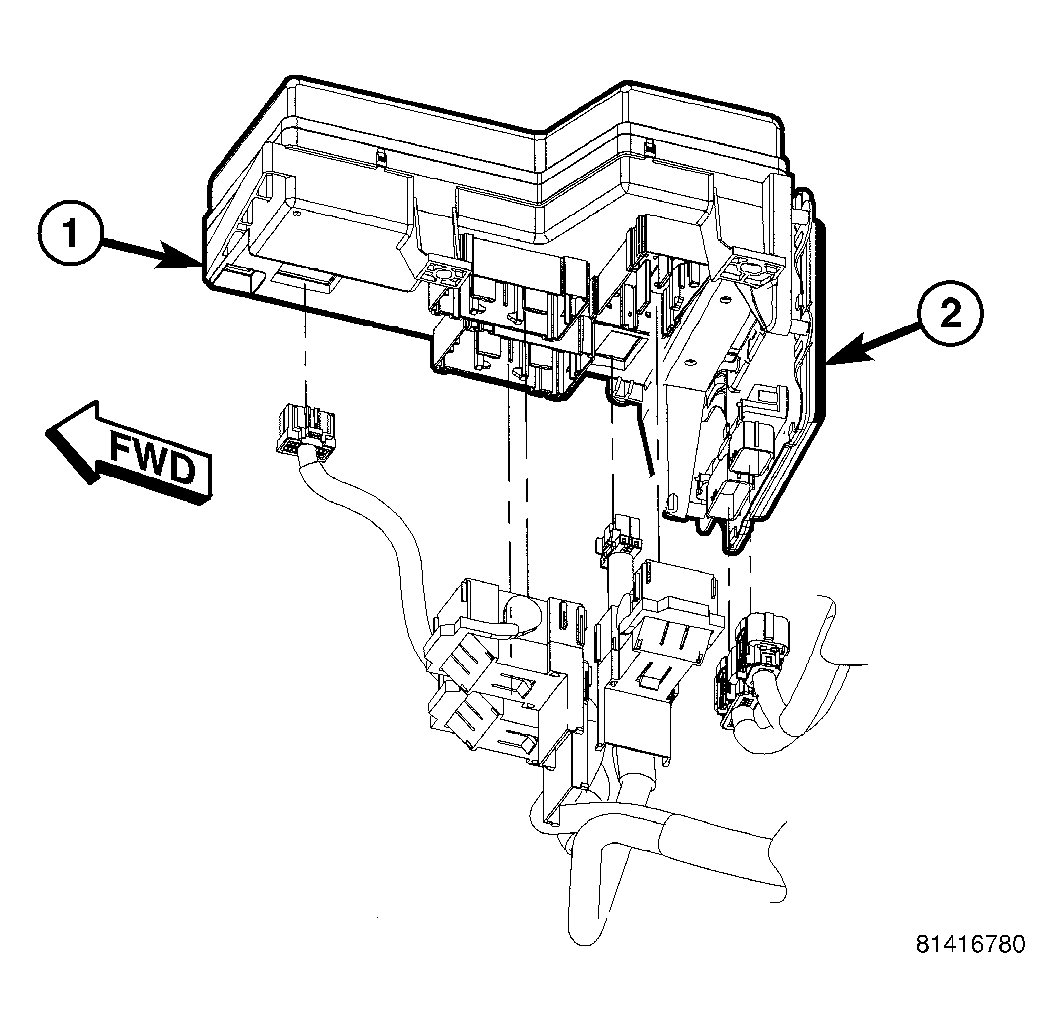

Fig 1: Identifying Integrated Power Module

Courtesy of DAIMLERCHRYSLER CORP.

The Integrated Power Module (IPM) is a combination of the Power Distribution Center (PDC) (1) and the Front Control Module (FCM) (2). The PDC mates directly with the FCM to form the IPM. The PDC is a printed circuit board based module that contains fuses and relays, while the FCM contains the electronics controlling the IPM and other functions. The IPM is located in the engine compartment, next to the battery and connects directly to the battery positive via a stud located on top of the unit. The ground connection is via electrical connectors. The IPM provides the primary means of voltage distribution and protection for the entire vehicle.

The molded plastic IPM housing includes a base and cover. The IPM cover is easily opened or removed for service access by unscrewing the cover retaining nut and has a fuse and relay layout map integral to the inside surface of the cover. This IPM housing base and cover are secured in place via bolts to the left front fender support assembly.

Replaceable components of the IPM assembly are broken down into the following components:

The Power Distribution Center (PDC)
The IPM cover
The Front Control Module (FCM)
Complete IPM assembly that includes all three parts
