Module-Integrated Power: Installation

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

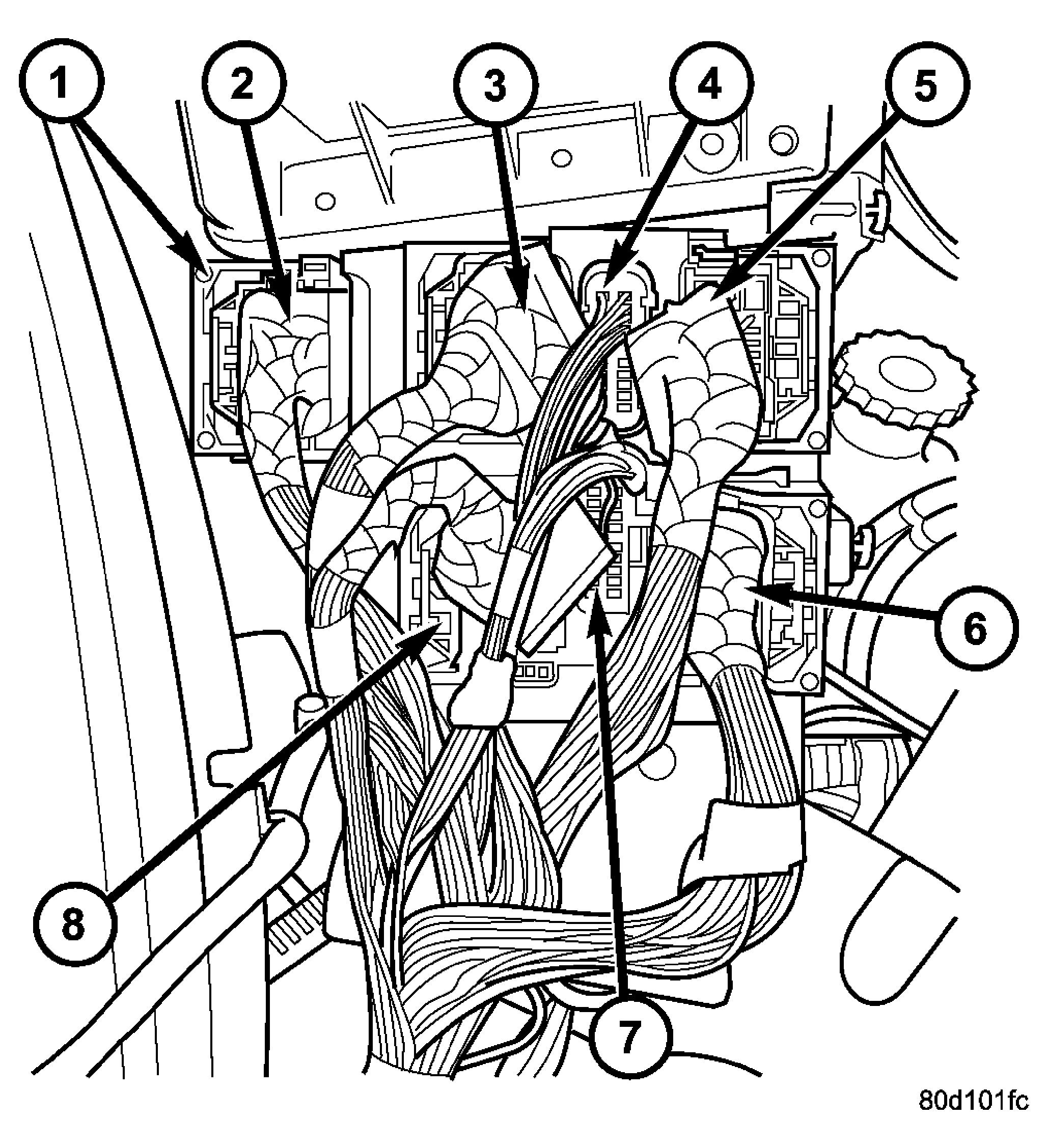

Fig 1: Identifying Integrated Power Module Connectors

Courtesy of DAIMLERCHRYSLER CORP.

Position the Integrated Power Module (IPM) into the vehicle.
NOTE: Integrated power module electrical connectors are color coded to ease location reference.
Connect the electrical connectors by pushing straight on and rotating the connector arm inboard, until the connector is firmly locked in place on the IPM assembly.

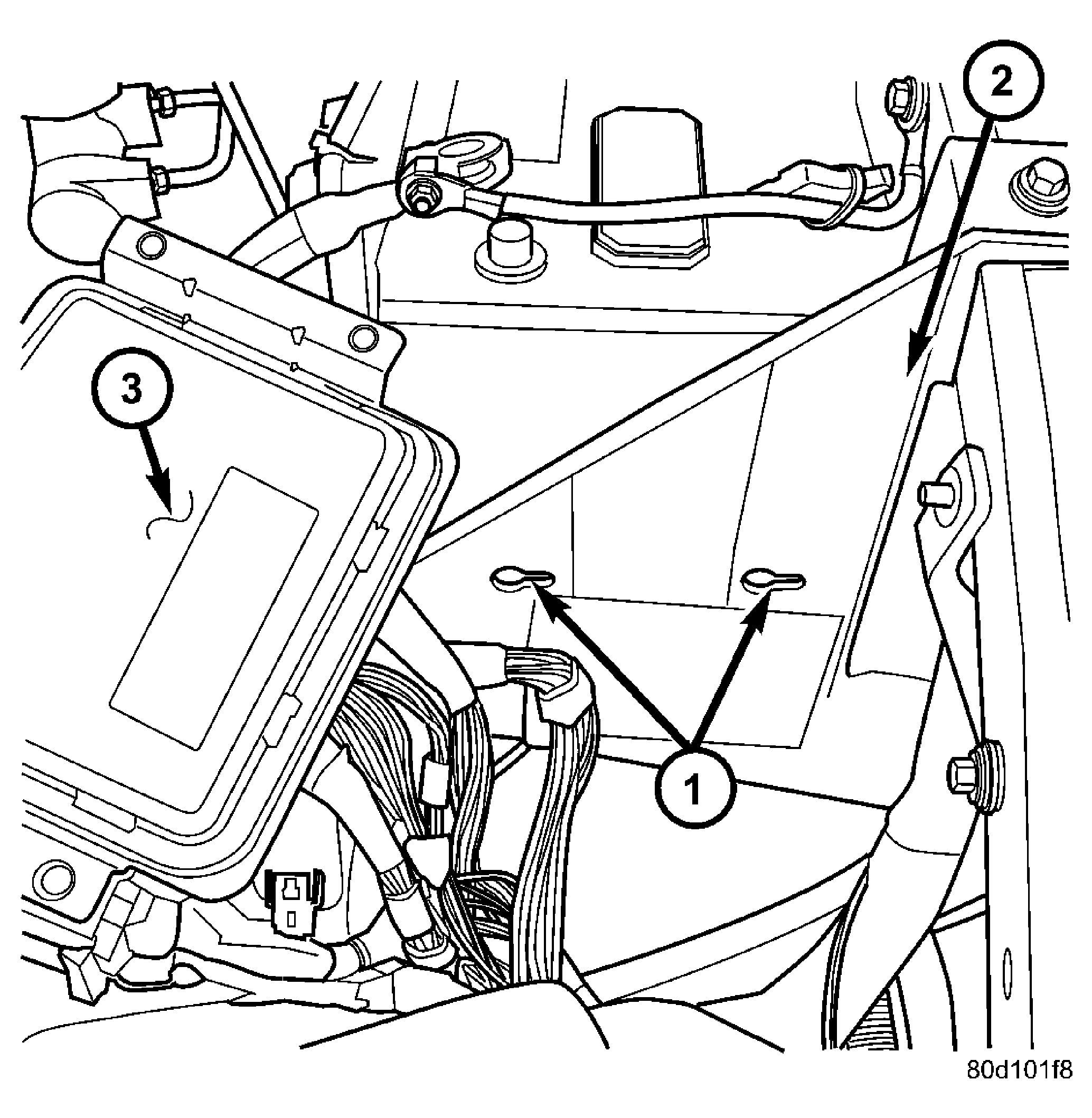

Fig 2: Removing/Installing Integrated Power Module
Courtesy of DAIMLERCHRYSLER CORP.
Grasp the IPM (3) with two hands and install the assembly onto the battery tray (2) making sure to line up the tabs with the retaining slots in the tray (1).

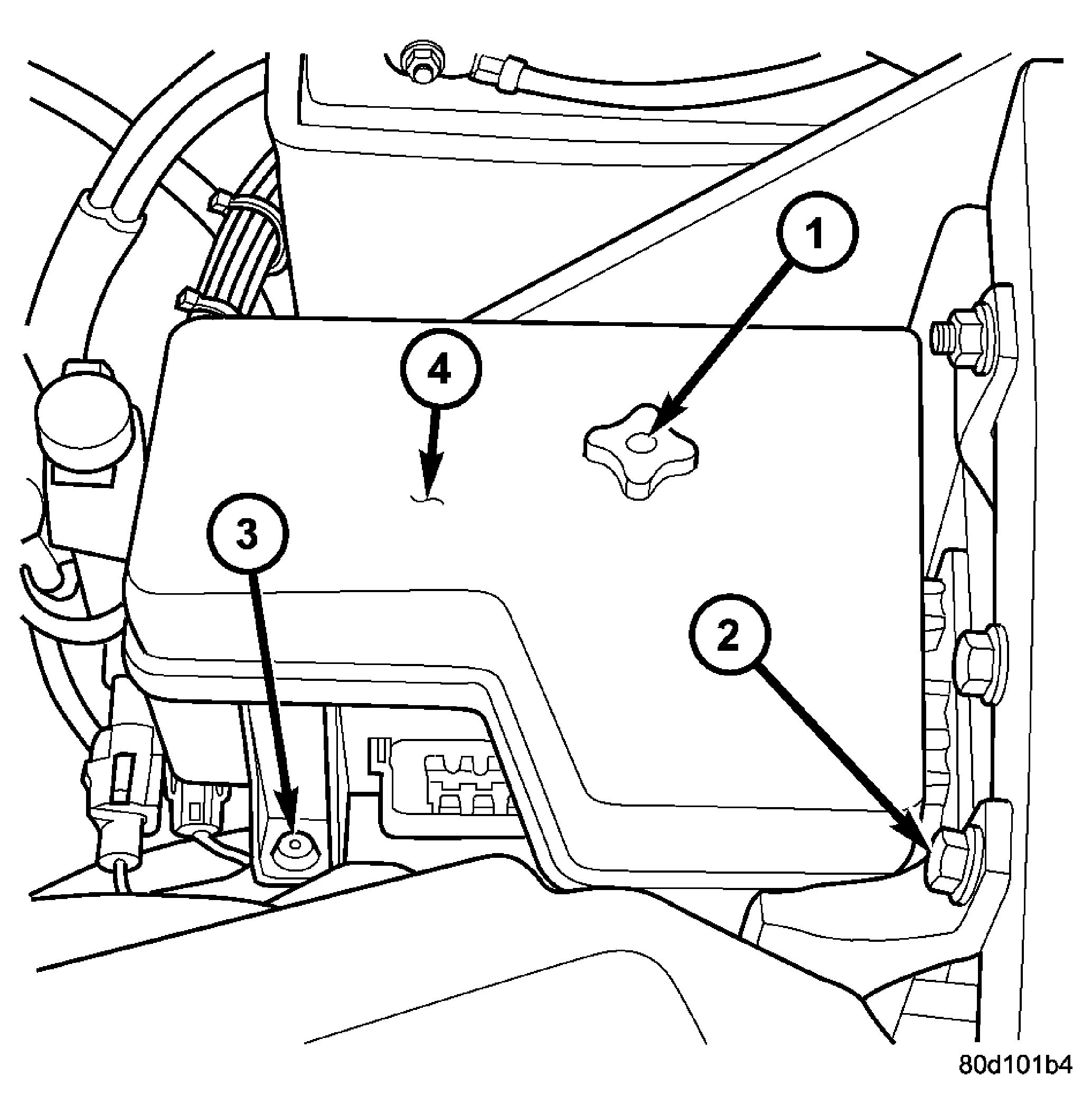

Fig 3: Identifying Integrated Power Module Components
Courtesy of DAIMLERCHRYSLER CORP.
Install the IPM retaining bolt (2) and screw (3).
Connect the gray connector on the IPM housing.
Install the B+ terminal cable and nut on the B+ terminal.
Install the IPM cover (4) and tighten the retaining screw (1).
Connect the battery negative cable.
