Module-Integrated Power: Removal

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Integrated Power Module Components
GC0009336Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the battery negative cable.
  2. Remove cover (4) by loosening the cover screw (1).
  3. Remove the B+ terminal nut from the Integrated Power Module (IPM) B+ terminal. Remove the B+ cable from the IPM.
  4. Disconnect the gray connector from the IPM.
  5. Remove the IPM retaining bolt (2) and screw (3).

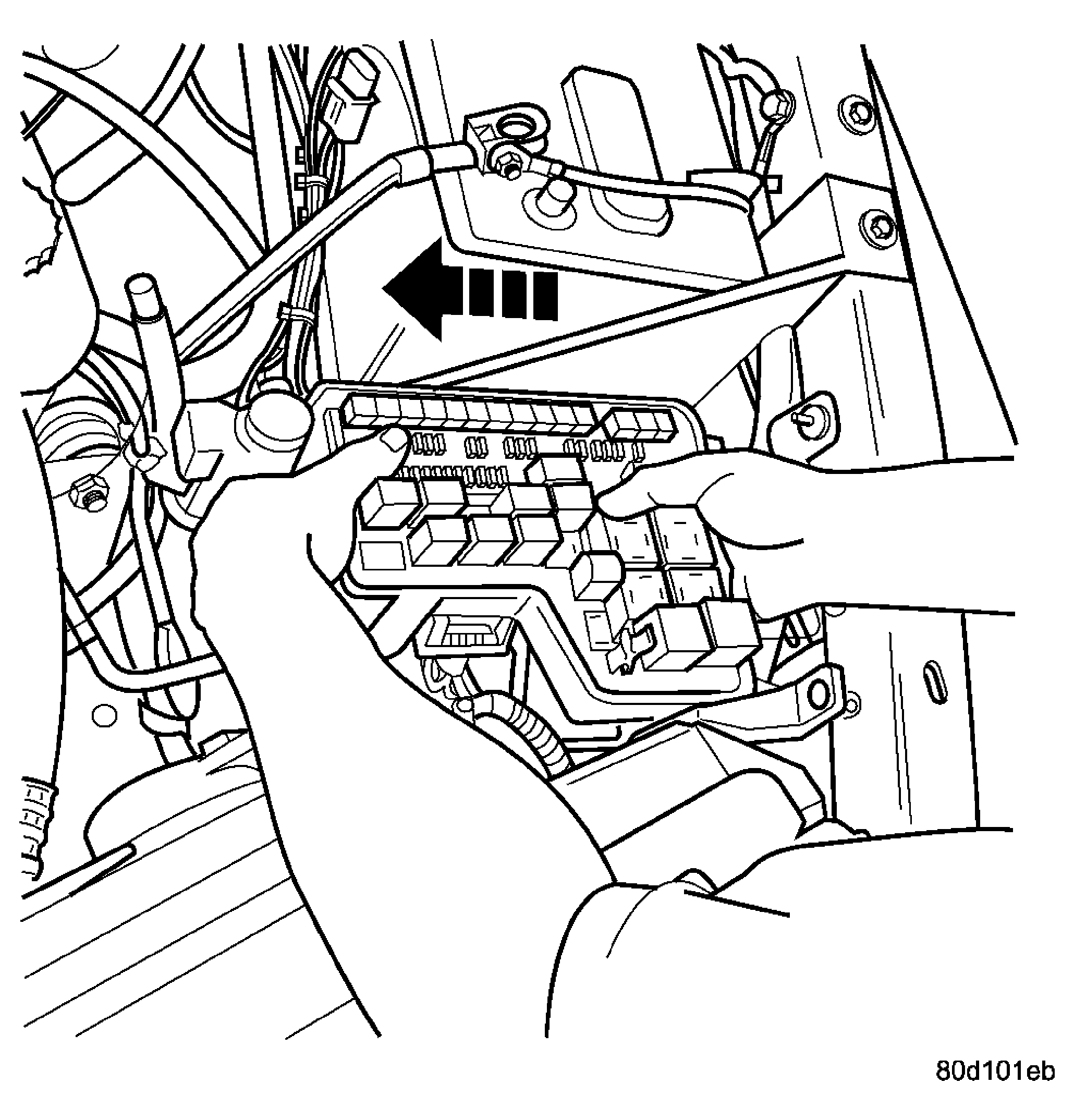

    Fig 2: Removing/Installing Integrated Power Module
    GC0006480Courtesy of DAIMLERCHRYSLER CORP.
  6. Grasp the IPM with two hands and slide the assembly in the direction shown to free the module from its mounting bracket. Position the assembly upside down to access the electrical connectors located on the bottom of the unit.
  7. Disconnect the electrical connectors by depressing the locking tab and rotating the connector arm outboard, until the connector is free from the IPM assembly. Be certain to pull the connectors straight off.
  8. Remove the IPM from the vehicle.
