Section 331 (Speed Control): Switch: Removal

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

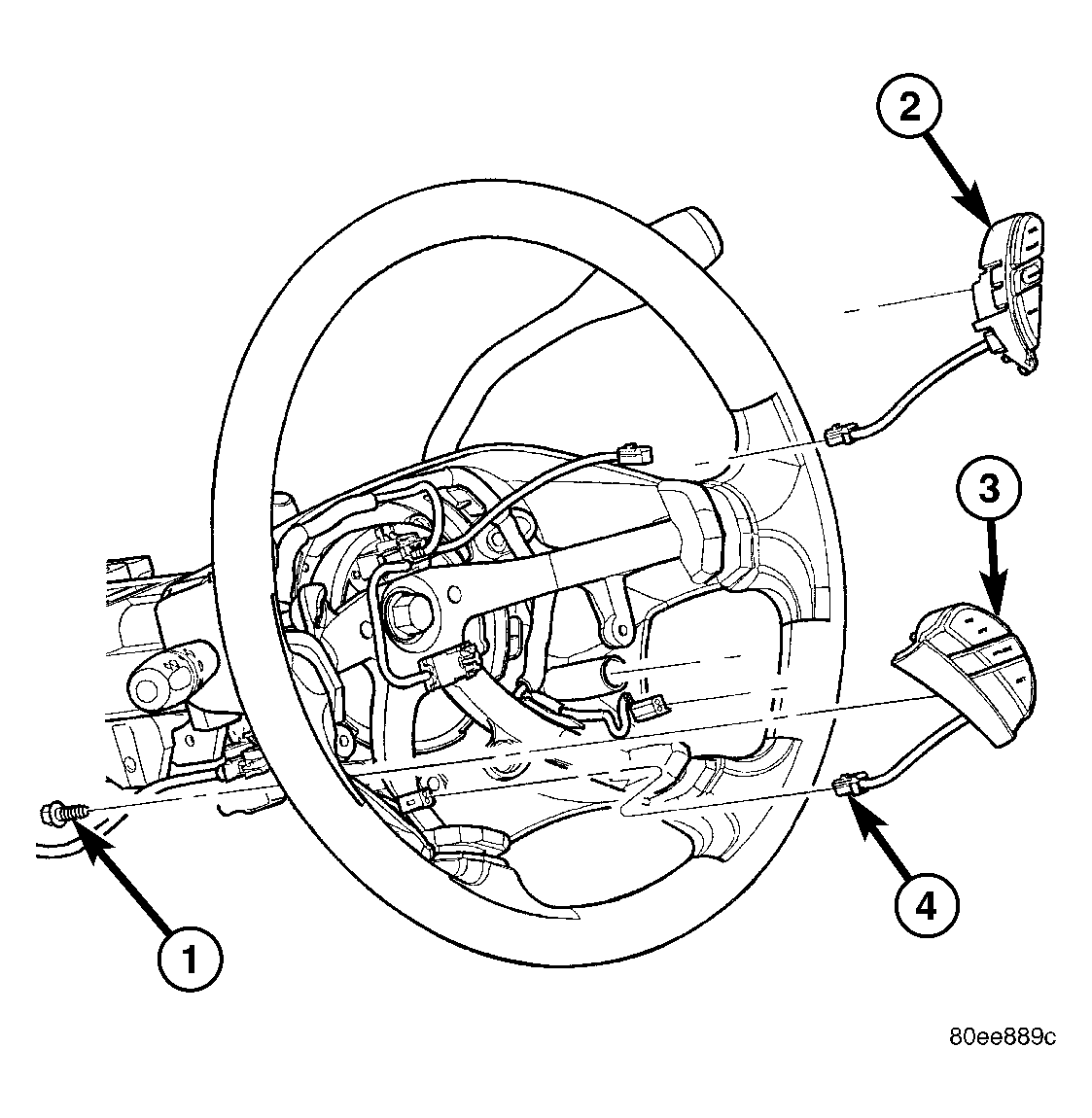

Fig 1: Removing/Installing Speed Control Switches - JTEC System (8.3L SRT-10)

Courtesy of DAIMLERCHRYSLER CORP.

1 - ELECTRICAL CONNECTORS

2 - MOUNTING SCREWS

3 - RIGHT SWITCH

4 - LEFT SWITCH

Depending on engine control computer (JTEC having a 3- plug connector or NGC having a 4- plug connector), 2 types of switches are used. Both types of switches are internally and externally different. The switch used with the NGC system (3.7L, 4.7L, 5.7L) has an attached pigtail lead. The switch used with the JTEC system (8.3L SRT-10) does not have an attached pigtail lead.

Remove switch mounting screw (2). See Fig 1 and Fig 2

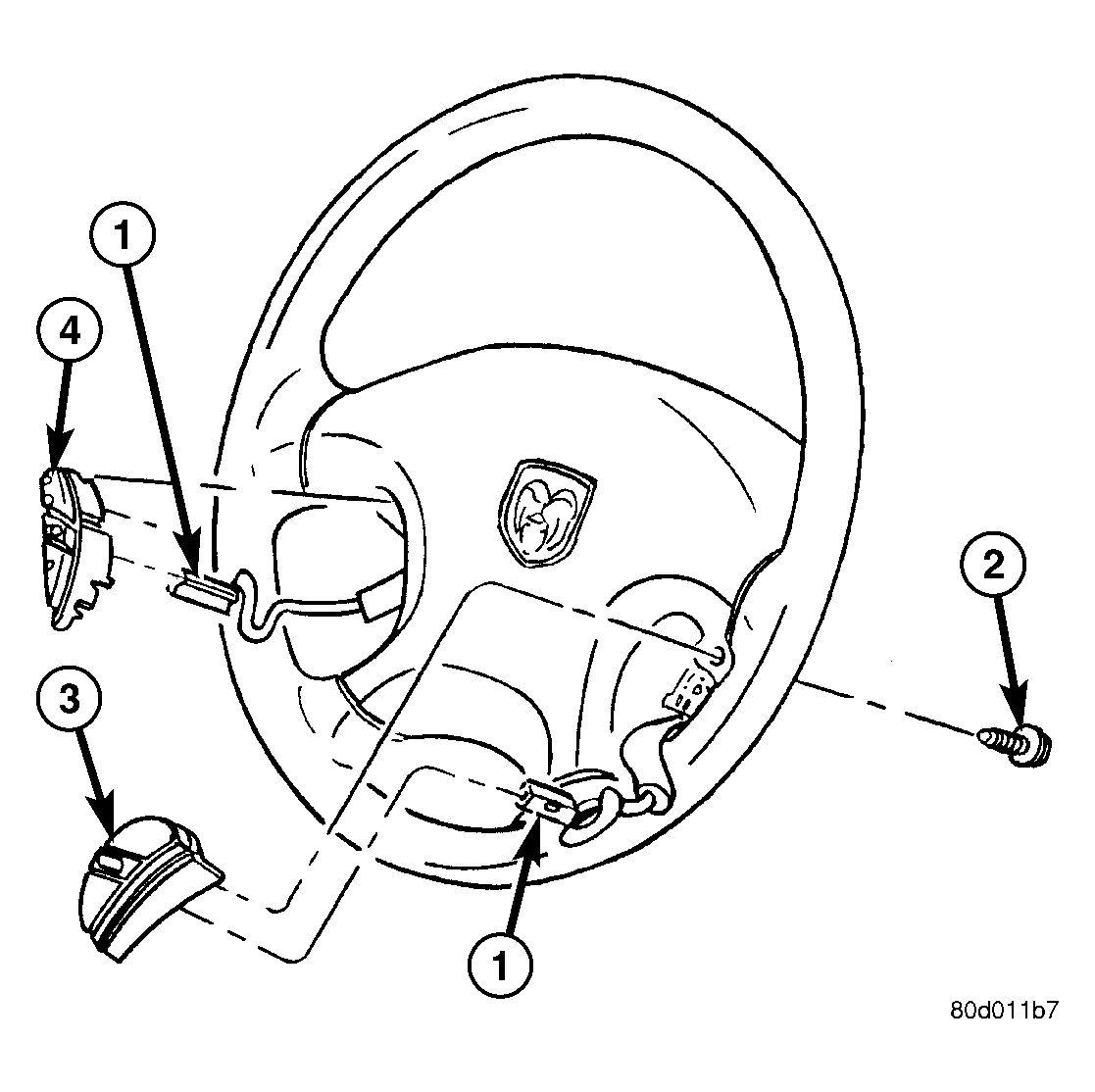

Fig 2: Removing/Installing Speed Control Switches - NGC System (3.7L, 4.7L, 5.7L)

Courtesy of DAIMLERCHRYSLER CORP.

1 - MOUNTING SCREWS

2 - RIGHT SWITCH

3 - LEFT SWITCH

4 - PIGTAIL LEADS

Pull switch (2) from steering wheel.
Unplug electrical connector from switch. See Fig 1, or, switch pigtail wire harness from steering wheel wire harness (4). See Fig 2 and remove switch.
