Module-Transmission Control: Description

WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

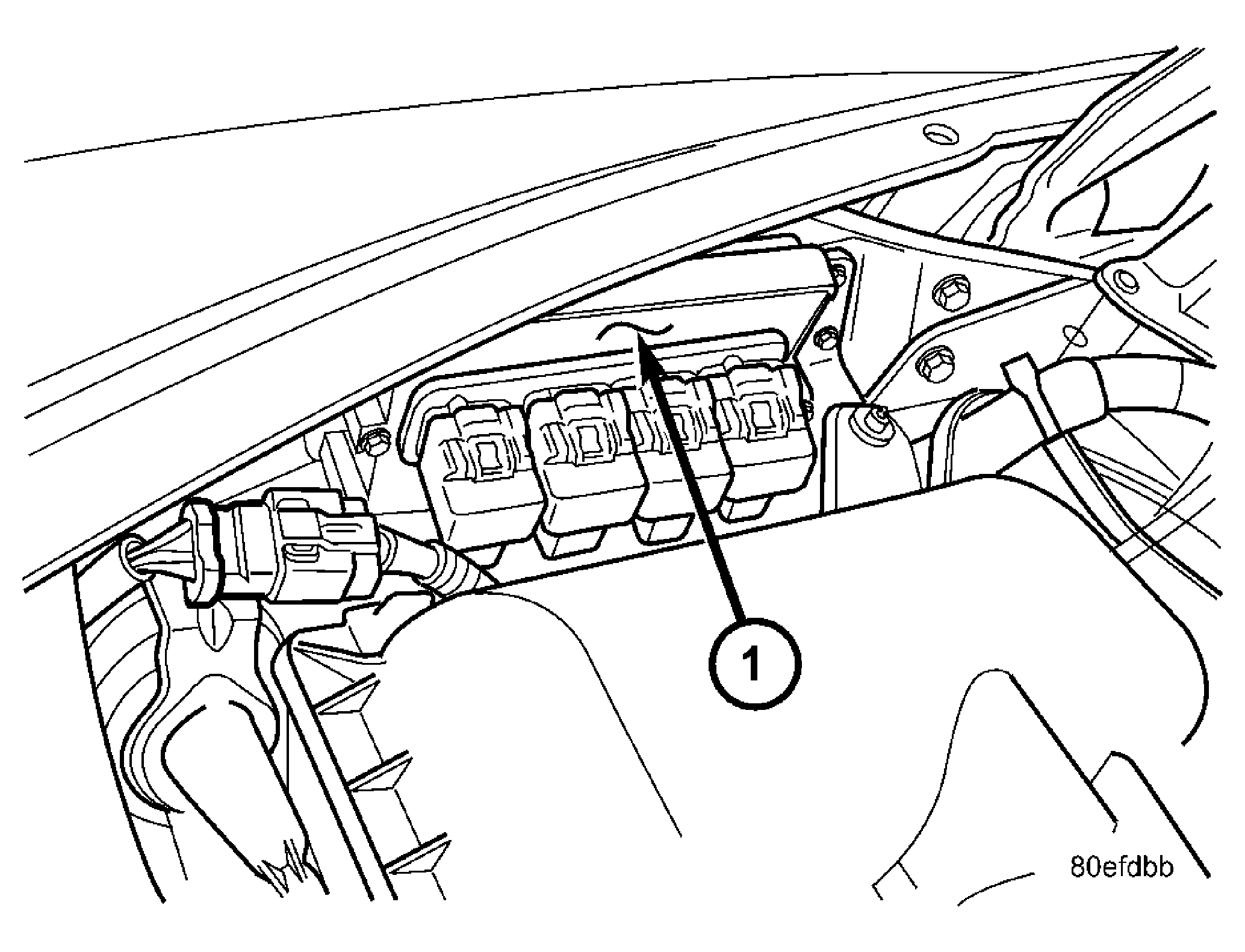

Fig 1: POWERTRAIN CONTROL MODULE LOCATION

Courtesy of DAIMLERCHRYSLER CORP.

1 - POWERTRAIN CONTROL MODULE

The Transmission Control Module (TCM) is a sub-module within the Powertrain Control Module (PCM). The PCM is located on the right inner fender. See Fig 1.
