Without APPS
WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.
The following procedure applies only to vehicles without the Adjustable Pedal Package (code XAP). It also applies to vehicles not equipped with an accelerator pedal position sensor.
The accelerator pedal is serviced as a complete assembly including the bracket.

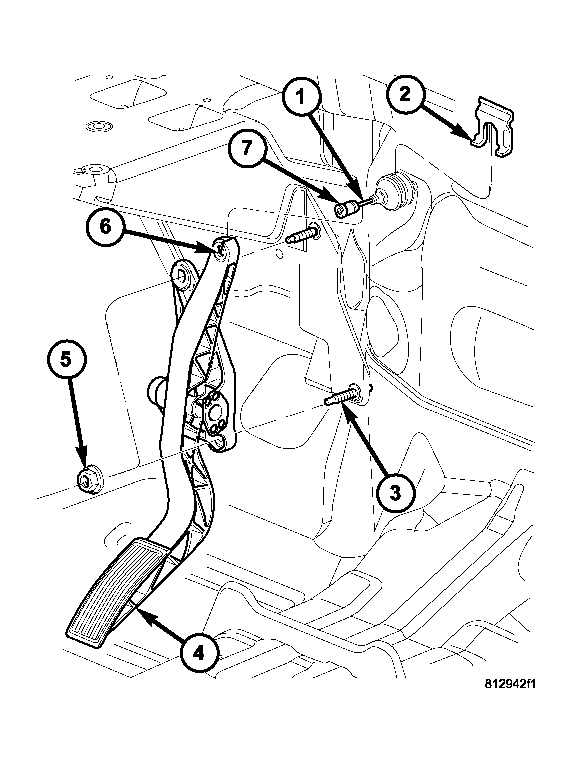

The accelerator cable is connected to the upper part of the accelerator pedal arm by a plastic retainer (clip) (7). This plastic retainer snaps into the top of the accelerator pedal arm.
- Place accelerator pedal assembly (4) over two mounting studs (3).
- Install and tighten two mounting nuts (5). Refer to TORQUE - FUEL SYSTEM .
- Slide throttle cable into opening slot (6) in top of pedal arm.
- Push plastic cable retainer (clip) (7) into accelerator pedal arm opening until it snaps into place.
- Before starting engine, operate accelerator pedal to check for any binding.
